Question 45

How do we construct an isosceles trapezium?

Solution

We will use the properties of an isosceles trapezium. It has one pair of parallel sides. Its non-parallel sides are equal in length.

Step 1 — Draw the first base

We start by drawing a line segment. This segment will be the longer parallel side. Let its length be $AB$ . We will choose a length for $AB$ .

$\text{Let } AB = \mathbf{8 \text{ cm}}$

$\boxed{\text{Draw line segment AB of length 8 cm}}$

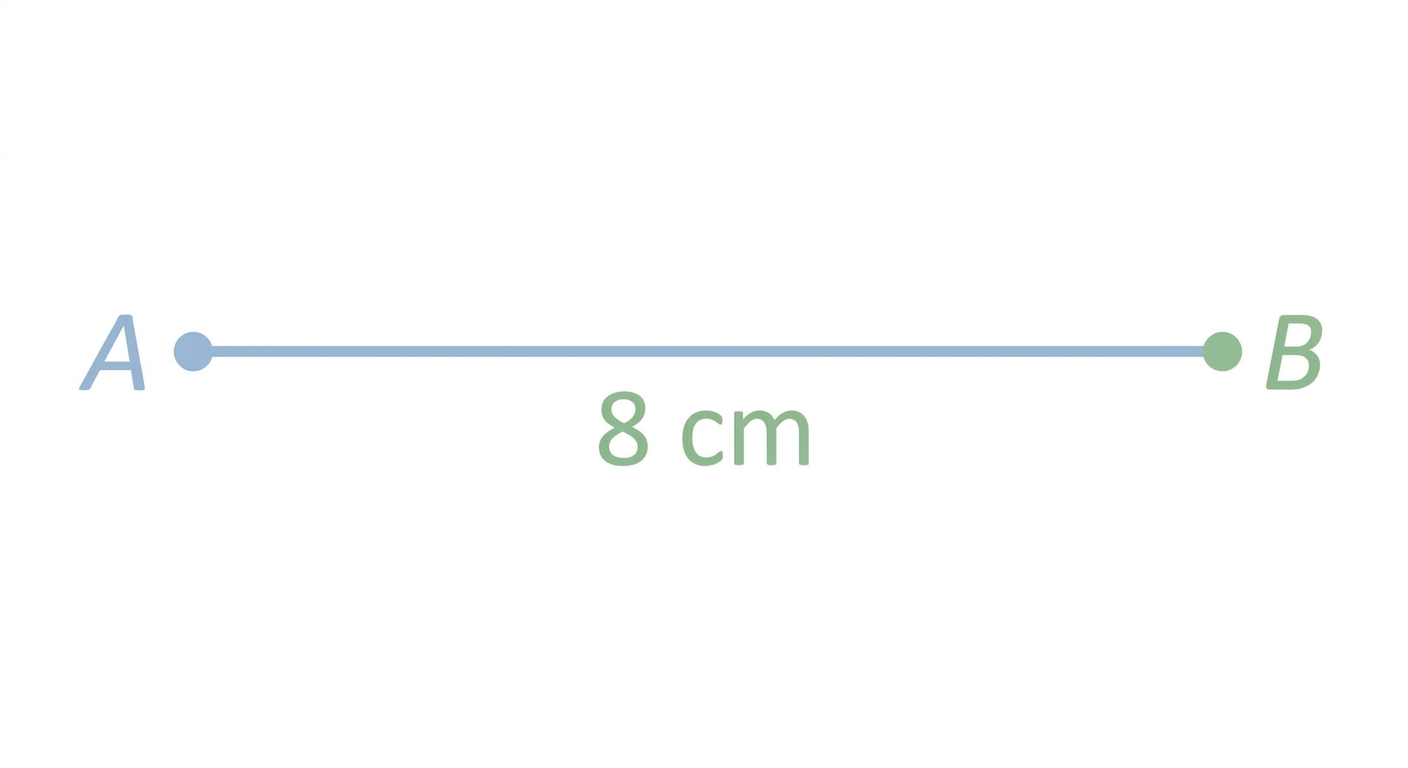

Diagram 1

Step 2 — Mark base angles

An isosceles trapezium has equal base angles. We will choose an angle for these.

$\text{Let base angle} = \mathbf{60^\circ}$

At point A, draw a line $AX$ . It makes an angle of $\mathbf{60^\circ}$ with $AB$ . At point B, draw a line $BY$ . It also makes an angle of $\mathbf{60^\circ}$ with $AB$ . Make sure $AX$ and $BY$ are on the same side.

$\boxed{\text{Draw lines AX and BY at 60 degrees to AB}}$

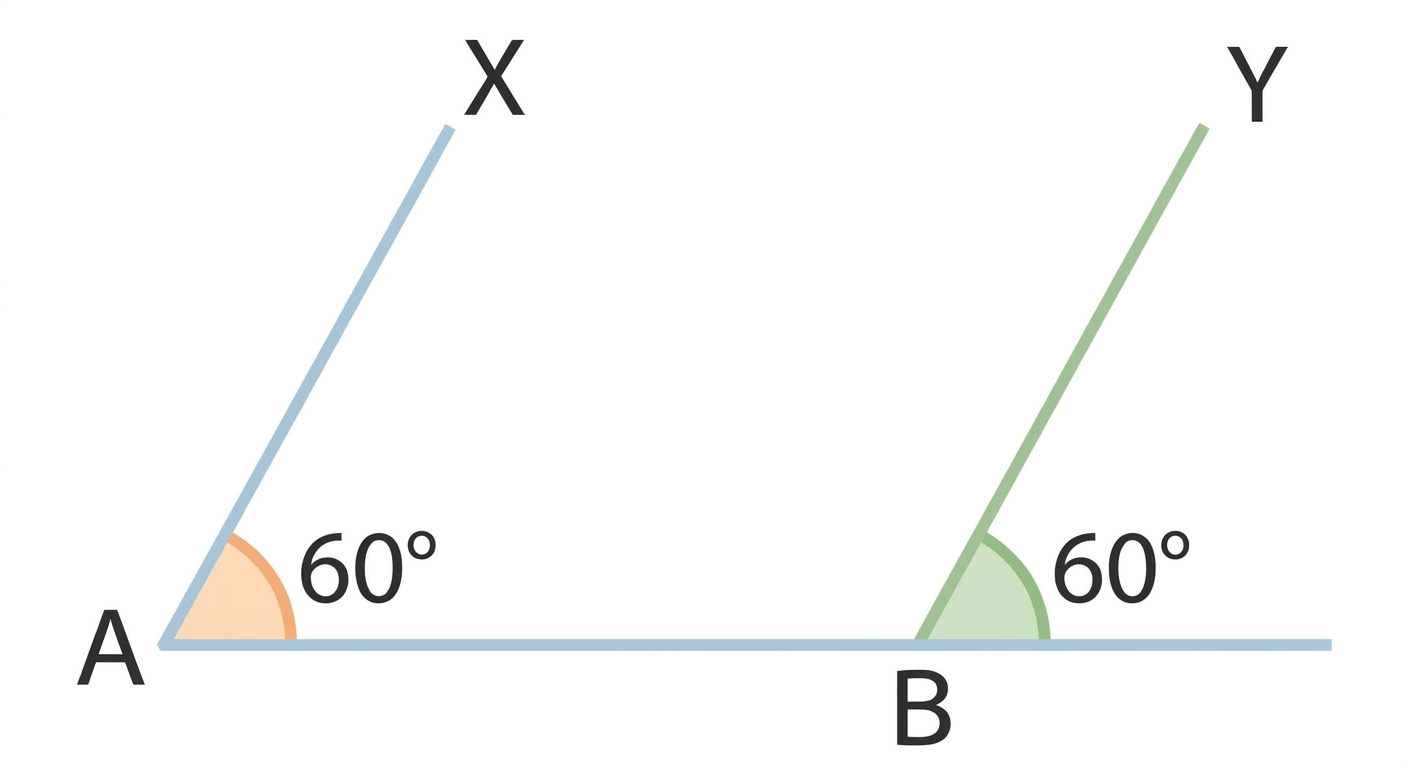

Diagram 2

Step 3 — Mark equal non-parallel sides

The non-parallel sides must be equal. We will choose a length for them.

$\text{Let non-parallel side length} = \mathbf{4 \text{ cm}}$

From A, measure $\mathbf{4 \text{ cm}}$ along $AX$ . Mark this point as $D$ . From B, measure $\mathbf{4 \text{ cm}}$ along $BY$ . Mark this point as $C$ .

$\boxed{\text{Mark points D and C on AX and BY, each 4 cm from A and B}}$

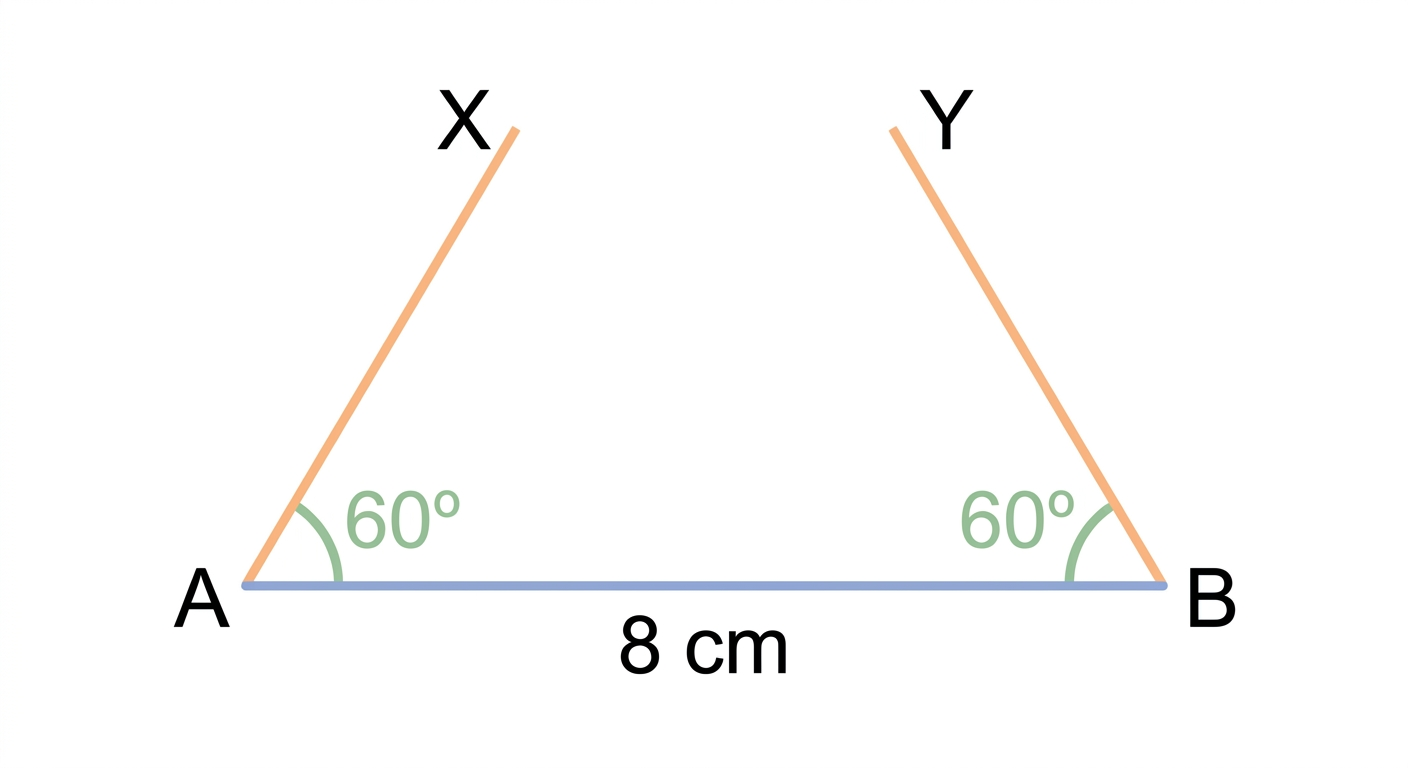

Diagram 3

Step 4 — Complete the trapezium

Now, we connect points $D$ and $C$ . The line segment $DC$ will be parallel to $AB$ . This completes our isosceles trapezium $ABCD$ .

$\boxed{\text{Connect points D and C to form the top base}}$

Answer

To construct an isosceles trapezium, we first draw a base line segment. Then, we draw two equal base angles at its ends. Next, we mark equal lengths along the angled lines. Finally, we connect these marked points to form the top parallel side.
