Quadrilaterals | IT

Question 42

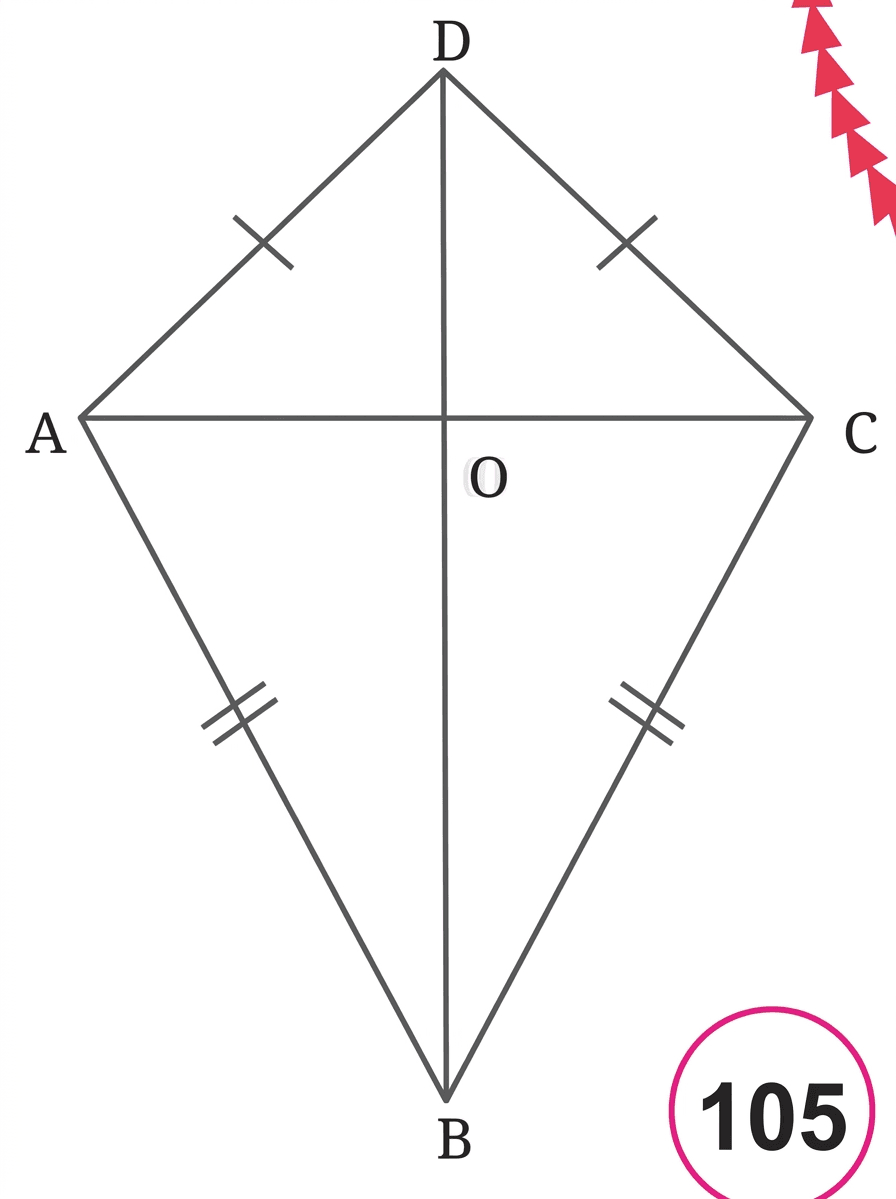

In the kite, show that the diagonal $BD$

(i) bisects $\angle ABC$ and $\angle ADC$ ,

(ii) bisects the diagonal $AC$ , that is, $AO = OC$ , and is perpendicular to it.

Hint: Is $\Delta AOB \cong \Delta COB$ ?

Solution

We will use triangle congruence to prove the properties of the kite's diagonals.

Step 1 — Bisecting angles ADC and ABC

Let us look at the quadrilateral ABCD. The tick marks show that adjacent sides are equal. So, AD = CD and AB = CB.

Consider the triangles $\triangle ABD$ and $\triangle CBD$ . We know that $AD = CD$ . We also know that $AB = CB$ . The side $BD$ is common to both triangles.

$AD = CD \quad (\text{Given})$

$AB = CB \quad (\text{Given})$

$BD = BD \quad (\text{Common side})$

By the SSS (Side-Side-Side) congruence criterion, $\triangle ABD \cong \triangle CBD$ . Since the triangles are congruent, their corresponding angles are equal. This means $\angle ADB = \angle CDB$ . So, $BD$ bisects $\angle ADC$ . It also means $\angle ABD = \angle CBD$ . So, $BD$ bisects $\angle ABC$ .

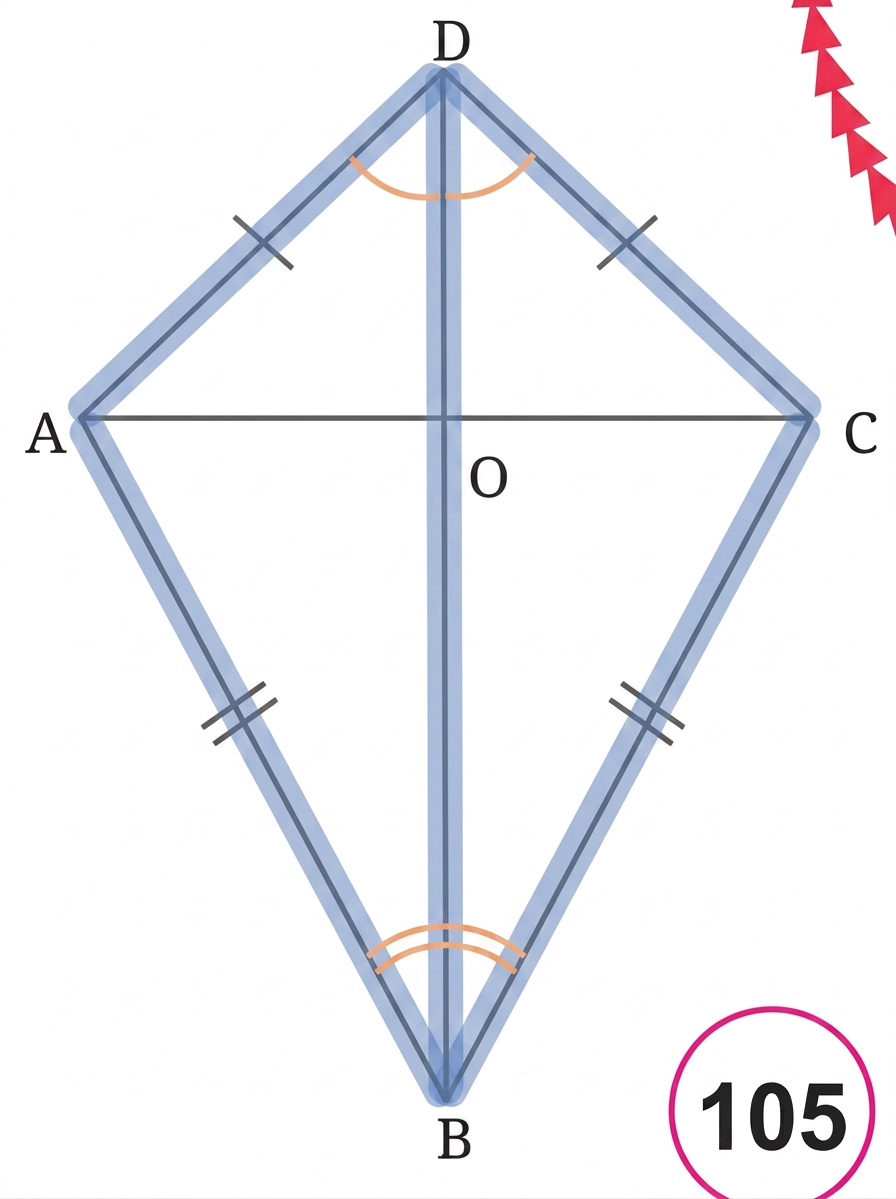

Diagram 1

Step 2 — Bisecting diagonal AC and being perpendicular to it

Now, let us consider the triangles $\triangle AOB$ and $\triangle COB$ . From Step 1, we know that $BD$ bisects $\angle ABC$ . This means $\angle ABO = \angle CBO$ .

$AB = CB \quad (\text{Given})$

$\angle ABO = \angle CBO \quad (\text{From Step 1, BD bisects } \angle ABC)$

$BO = BO \quad (\text{Common side})$

By the SAS (Side-Angle-Side) congruence criterion, $\triangle AOB \cong \triangle COB$ . Since the triangles are congruent, their corresponding parts are equal. This means $AO = OC$ . So, $BD$ bisects the diagonal $AC$ . It also means $\angle AOB = \angle COB$ .

Angles $\angle AOB$ and $\angle COB$ form a linear pair. This means their sum is $180^\circ$ . $\angle AOB + \angle COB = 180^\circ$ Since $\angle AOB = \angle COB$ , we can write: $2 \times \angle AOB = 180^\circ$ $\angle AOB = \frac{180^\circ}{2}$ $\angle AOB = 90^\circ$ This means $BD$ is perpendicular to $AC$ .

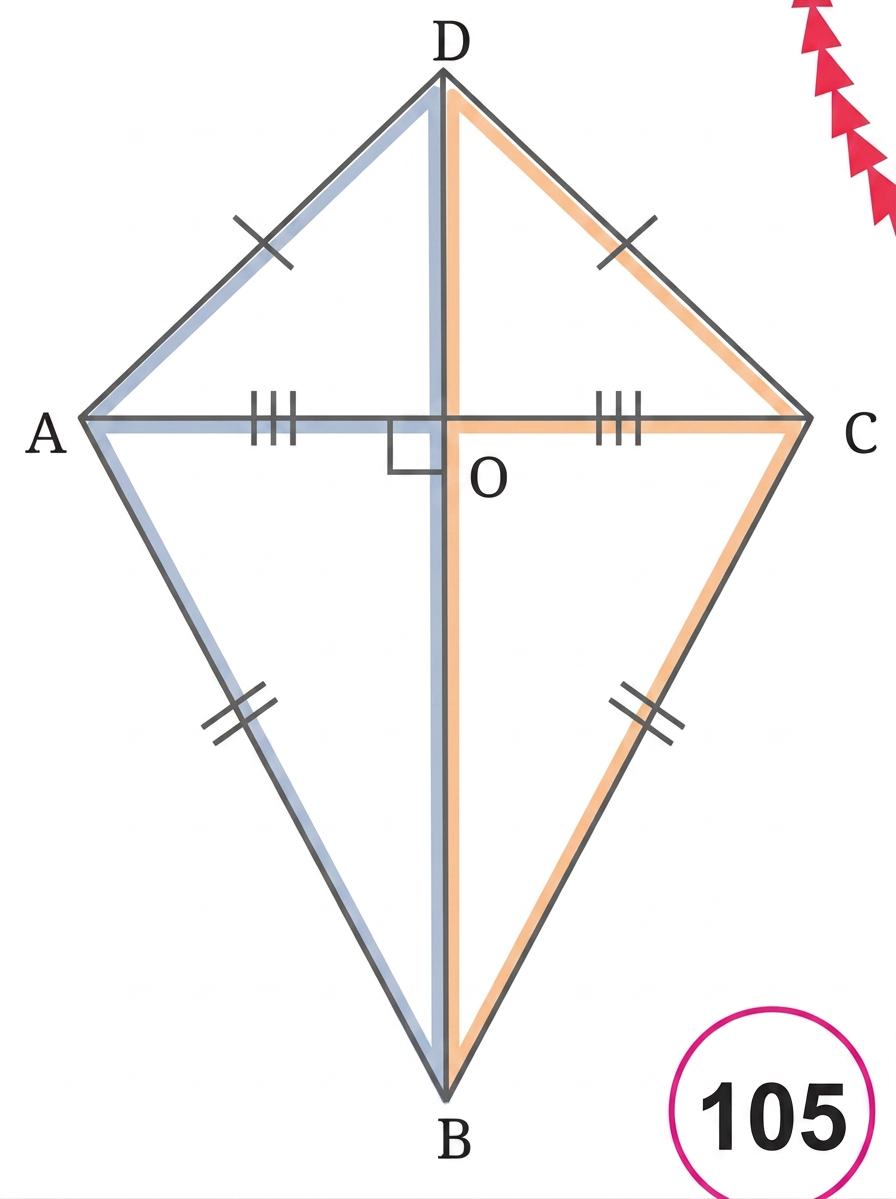

Diagram 2

Answer

(i) We showed that $\triangle ABD \cong \triangle CBD$ using the SSS congruence criterion. From this congruence, we concluded that $\angle ADB = \angle CDB$ and $\angle ABD = \angle CBD$ . Therefore, the diagonal $BD$ bisects $\angle ABC$ and $\angle ADC$ . (ii) We showed that $\triangle AOB \cong \triangle COB$ using the SAS congruence criterion. From this congruence, we concluded that $AO = OC$ , meaning $BD$ bisects the diagonal $AC$ . We also found that $\angle AOB = \angle COB$ . Since these angles form a linear pair, each must be $90^\circ$ , which means $BD$ is perpendicular to $AC$ .
