Question 14

Use the points on the circle and/or the centre to form isosceles triangles.

Use the points on the circles and/or their centres to form isosceles and equilateral triangles. The circles are of the same size.

We checked by construction that there are no triangles having sidelengths $3\text{ cm}$, $4\text{ cm}$ and $8\text{ cm}$; and $2\text{ cm}$, $3\text{ cm}$ and $6\text{ cm}$. Check if you could have found this without trying to construct the triangle.

Can we say anything about the existence of a triangle for each of the following sets of lengths?

(a) $10\text{ km}$, $10\text{ km}$ and $25\text{ km}$

(b) $5\text{ mm}$, $10\text{ mm}$ and $20\text{ mm}$

(c) $12\text{ cm}$, $20\text{ cm}$ and $40\text{ cm}$

Which of the following lengths can be the sidelengths of a triangle? Explain your answers. Note that for each set, the three lengths have the same unit of measure.

(a) $2, 2, 5$ (b) $3, 4, 6$ (c) $2, 4, 8$ (d) $5, 5, 8$ (e) $10, 20, 25$ (f) $10, 20, 35$ (g) $24, 26, 28$

Check if a triangle exists for each of the following set of lengths:

(a) 1, 100, 100

(b) 3, 6, 9

(c) 1, 1, 5

(d) 5, 10, 12

Does there exist an equilateral triangle with sides 50, 50, 50? In general, does there exist an equilateral triangle of any sidelength? Justify your answer.

For each of the following, give at least 5 possible values for the third length so there exists a triangle having these as sidelengths (decimal values could also be chosen):

(a) $1$, $100$

(b) $5$, $5$

(c) $3$, $7$

See if you can describe all possible lengths of the third side in each case, so that a triangle exists with those sidelengths. For example, in case (a), all numbers strictly between $99$ and $101$ would be possible.

Construct triangles for the following measurements where the angle is included between the sides:

(a) $3\text{ cm}$, $75^\circ$, $7\text{ cm}$

(b) $6\text{ cm}$, $25^\circ$, $3\text{ cm}$

(c) $3\text{ cm}$, $120^\circ$, $8\text{ cm}$

Construct triangles for the following measurements:

(a) $75^\circ$, $5\text{ cm}$, $75^\circ$

(b) $25^\circ$, $3\text{ cm}$, $60^\circ$

(c) $120^\circ$, $6\text{ cm}$, $30^\circ$

For each of the following angles, find another angle for which a triangle is (a) possible, (b) not possible. Find at least two different angles for each category:

(a) $30^\circ$

(b) $70^\circ$

(c) $54^\circ$

(d) $144^\circ$

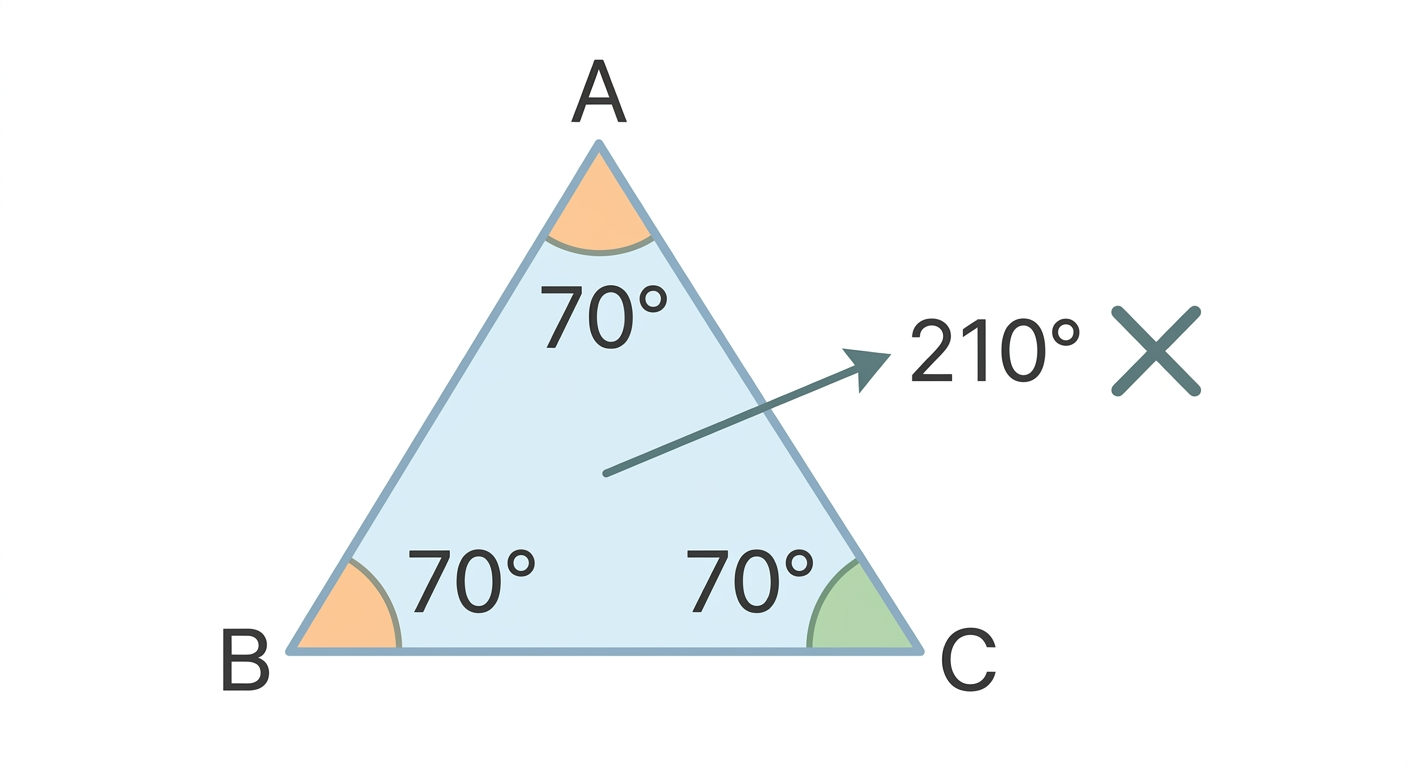

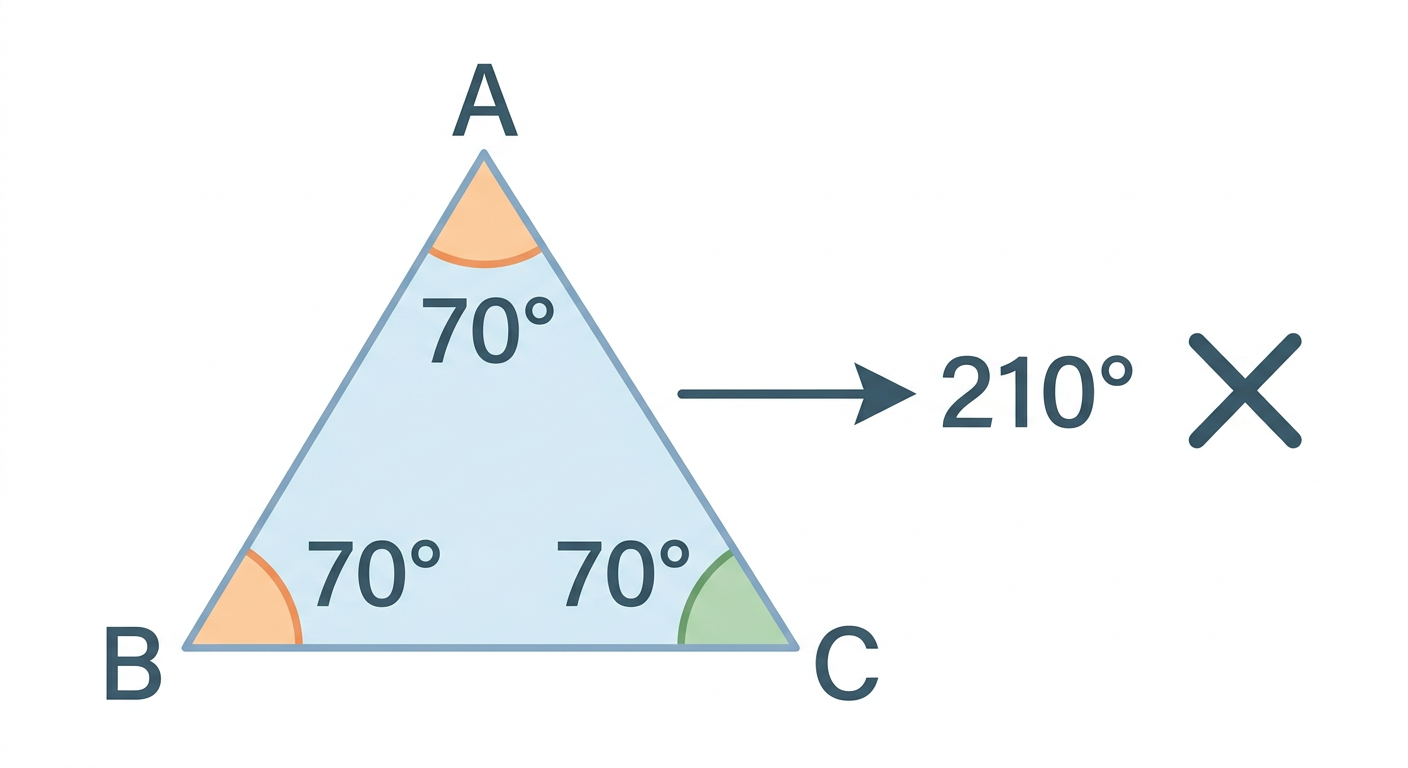

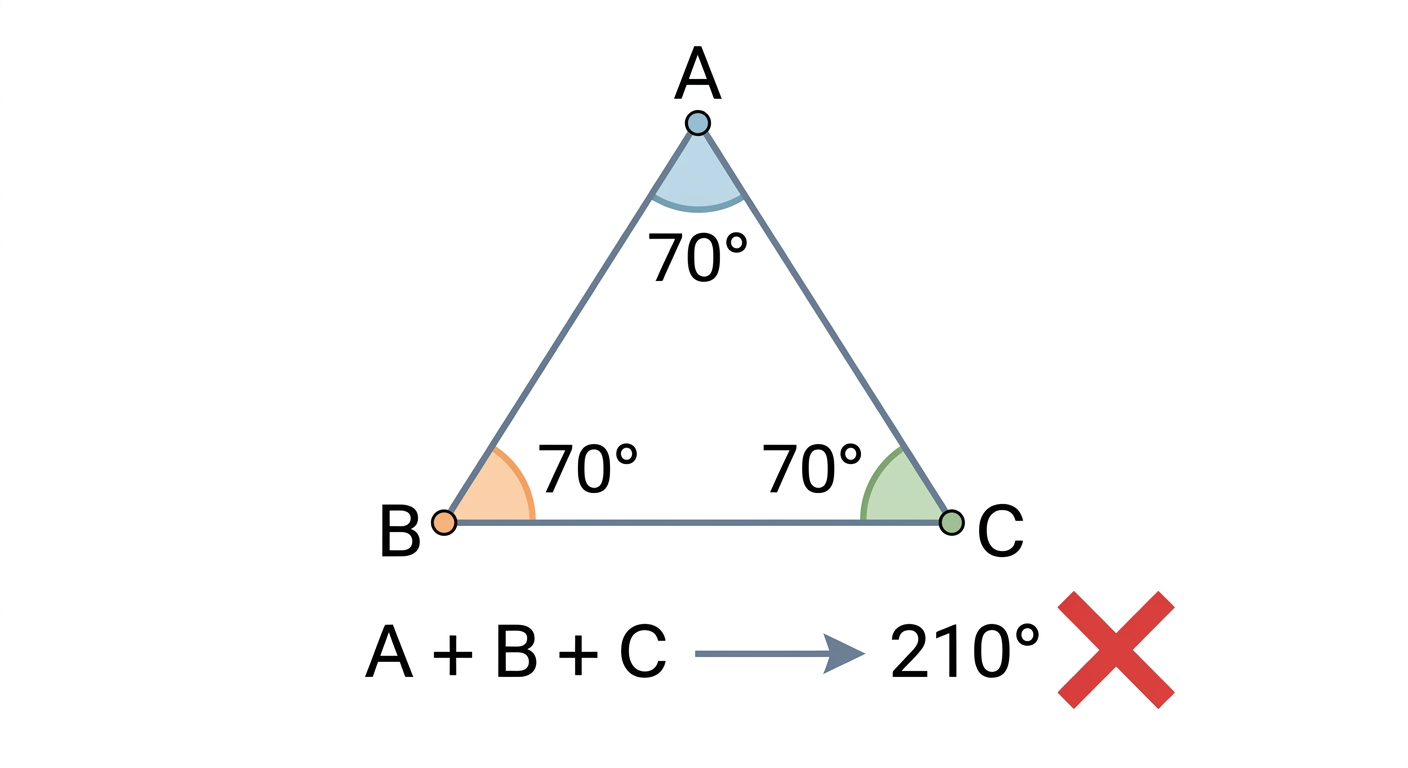

Determine which of the following pairs can be the angles of a triangle and which cannot:

(a) $35^\circ$, $150^\circ$

(b) $70^\circ$, $30^\circ$

(c) $90^\circ$, $85^\circ$

(d) $50^\circ$, $150^\circ$

Find the third angle of a triangle (using a parallel line) when two of the angles are:

(a) $36^\circ, 72^\circ$

(b) $150^\circ, 15^\circ$

(c) $90^\circ, 30^\circ$

(d) $75^\circ, 45^\circ$

Here is a triangle in which we know $\angle B = \angle C$ and $\angle A = 50^\circ$. Can you find $\angle B$ and $\angle C$?

Construct a triangle $ABC$ with $BC = 5\text{ cm}$, $AB = 6\text{ cm}$, $CA = 5\text{ cm}$. Construct an altitude from $A$ to $BC$.

Construct a triangle $TRY$ with $RY = 4\text{ cm}$, $TR = 7\text{ cm}$, $\angle R = 140^\circ$. Construct an altitude from $T$ to $RY$.

Construct a right-angled triangle $\Delta \text{ABC}$ with $\angle B = 90^\circ$, $\text{AC} = 5 \text{ cm}$. How many different triangles exist with these measurements?

[Hint: Note that the other measurements can take any values. Take $\text{AC}$ as the base. What values can $\angle A$ and $\angle C$ take so that the other angle is $90^\circ$?]

Through construction, explore if it is possible to construct an equilateral triangle that is: (i) right-angled (ii) obtuse-angled.

Also construct an isosceles triangle that is: (i) right-angled (ii) obtuse-angled.
