Question 15

The pie chart on the right shows the result of a survey carried out to find the modes of transport used by children to go to school. Study the pie chart and answer the following questions.

(i) What is the most common mode of transport?

(ii) What fraction of children travel by car?

(iii) If 18 children travel by car, how many children took part in the survey? How many children use taxis to travel to school?

(iv) By which two modes of transport are equal numbers of children travelling?

Solution

Understand the Question

A pie chart represents a whole divided into sectors where the sum of all central angles is $360^\circ$ .
The fraction of children using any transport mode is given by: $\text{Fraction} = \dfrac{\text{Central Angle}}{360^\circ}$
Modes with larger angles represent more children, and equal angles represent equal numbers of children.

(i) What is the most common mode of transport?

Step 1 · Find angle for Car and identify largest sector

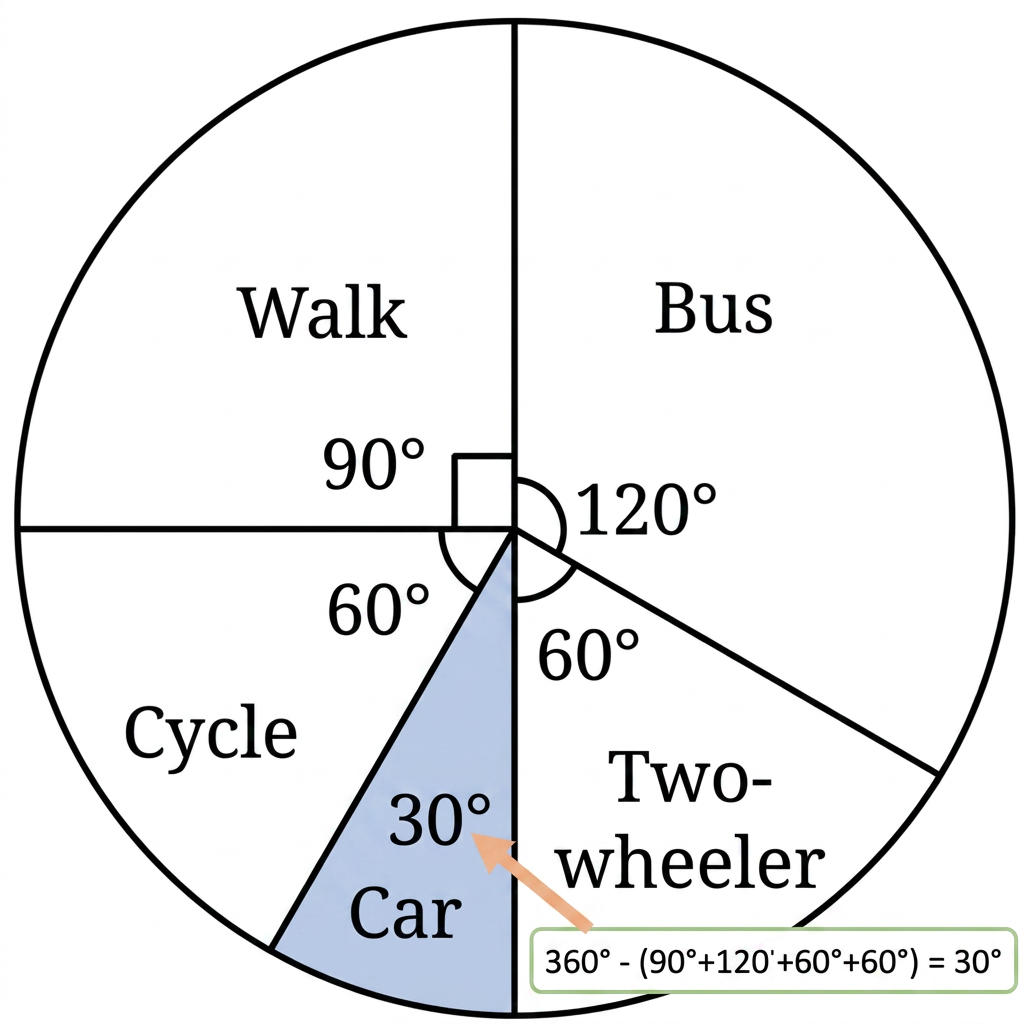

Diagram 1

The sum of all central angles in a pie chart is $360^\circ$ .

\begin{aligned} A_{\text{Walk}} + A_{\text{Bus}} + A_{\text{Cycle}} + A_{\text{Two-wheeler}} + A_{\text{Car}} &= 360^\circ \\[0.6em] 90^\circ + 120^\circ + 60^\circ + 60^\circ + A_{\text{Car}} &= 360^\circ \\[0.6em] 330^\circ + A_{\text{Car}} &= 360^\circ \\[0.6em] A_{\text{Car}} &= 360^\circ - 330^\circ = 30^\circ \end{aligned}

Comparing the central angles:

Bus: $120^\circ$
Walk: $90^\circ$
Cycle: $60^\circ$
Two-wheeler: $60^\circ$
Car: $30^\circ$

The largest central angle is $120^\circ$ , which corresponds to the Bus.

Answer

(i) Bus

(ii) What fraction of children travel by car?

Step 1 · Calculate fraction of children travelling by car

\begin{aligned} \text{Fraction by car} &= \dfrac{\text{Angle for Car}}{\text{Total angle}} \\[0.6em] &= \dfrac{30^\circ}{360^\circ} \\[0.6em] &= \dfrac{1}{12} \end{aligned}

Answer

(ii) $\dfrac{1}{12}$

(iii) If 18 children travel by car, how many children took part in the survey? How many children use taxis to travel to school?

Step 1 · Calculate total number of children

Let $x$ be the total number of children in the survey.

\begin{aligned} \dfrac{1}{12} \times x &= 18 \\[0.6em] x &= 18 \times 12 \\[0.6em] x &= 216 \end{aligned}

Step 2 · Find number of children using taxis

Since there is no sector for 'Taxi' in the pie chart, the number of children using taxis is $0$ .

Answer

(iii) Total children $= 216$ ; Children using taxis $= 0$

(iv) By which two modes of transport are equal numbers of children travelling?

Step 1 · Identify modes with equal central angles

Both Cycle and Two-wheeler have the same central angle of $60^\circ$ , so an equal number of children travel by these two modes.

Answer

(iv) Cycle and Two-wheeler

Common Mistakes

Angle Base Error: Calculating the fraction out of $100$ instead of the total central angle of $360^\circ$ .
Missing Sector: Forgetting to calculate the central angle for 'Car' before evaluating its fraction or total count.
Unlisted Category: Assuming a non-zero count for 'Taxi', even though it is not present in the survey data.
