Question 8

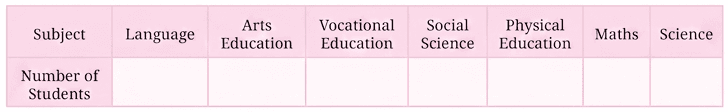

Prepare a pie chart that shows the favourite subjects of the students in your class. You can collect the data of the number of students for each subject shown in the table (each student should choose only one subject). Then write these numbers in the table and construct a pie chart:

Solution

Understand the Question

A pie chart (circle graph) represents data divided into sectors, where the size of each sector is proportional to the fraction of the total it represents.
The total central angle of a full circle is $360^\circ$ .
To find the central angle for each category: $\text{Central Angle} = \left(\dfrac{\text{Frequency of Category}}{\text{Total Frequency}}\right) \times 360^\circ$
We first assume/collect the data for each subject, find the total number of students, calculate each central angle, and then draw the pie chart.

Step 1 · Tabulate Data and Find Total Students

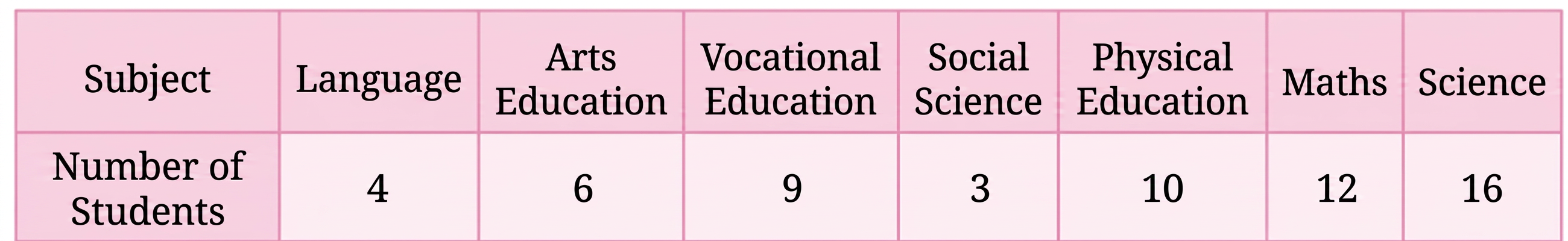

Let the assumed number of students choosing each subject be:

Language: $4$
Arts Education: $6$
Vocational Education: $9$
Social Science: $3$
Physical Education: $10$
Maths: $12$
Science: $16$

Calculate total number of students:

\begin{aligned} \text{Total students} &= 4 + 6 + 9 + 3 + 10 + 12 + 16 \\ &= 60 \end{aligned}

Step 2 · Calculate Central Angles

Calculate the central angle for each subject using $\text{Central Angle} = \left(\dfrac{\text{Students in Subject}}{\text{Total Students}}\right) \times 360^\circ$ :

Language:

\begin{aligned} \text{Angle for Language} &= \left(\dfrac{4}{60}\right) \times 360^\circ \\[0.6em] &= \left(\dfrac{1}{15}\right) \times 360^\circ \\[0.6em] &= 24^\circ \end{aligned}

Arts Education:

\begin{aligned} \text{Angle for Arts Education} &= \left(\dfrac{6}{60}\right) \times 360^\circ \\[0.6em] &= \left(\dfrac{1}{10}\right) \times 360^\circ \\[0.6em] &= 36^\circ \end{aligned}

Vocational Education:

\begin{aligned} \text{Angle for Vocational Education} &= \left(\dfrac{9}{60}\right) \times 360^\circ \\[0.6em] &= \left(\dfrac{3}{20}\right) \times 360^\circ \\[0.6em] &= 54^\circ \end{aligned}

Social Science:

\begin{aligned} \text{Angle for Social Science} &= \left(\dfrac{3}{60}\right) \times 360^\circ \\[0.6em] &= \left(\dfrac{1}{20}\right) \times 360^\circ \\[0.6em] &= 18^\circ \end{aligned}

Physical Education:

\begin{aligned} \text{Angle for Physical Education} &= \left(\dfrac{10}{60}\right) \times 360^\circ \\[0.6em] &= \left(\dfrac{1}{6}\right) \times 360^\circ \\[0.6em] &= 60^\circ \end{aligned}

Maths:

\begin{aligned} \text{Angle for Maths} &= \left(\dfrac{12}{60}\right) \times 360^\circ \\[0.6em] &= \left(\dfrac{1}{5}\right) \times 360^\circ \\[0.6em] &= 72^\circ \end{aligned}

Science:

\begin{aligned} \text{Angle for Science} &= \left(\dfrac{16}{60}\right) \times 360^\circ \\[0.6em] &= \left(\dfrac{4}{15}\right) \times 360^\circ \\[0.6em] &= 96^\circ \end{aligned}

Step 3 · Construct the Pie Chart

Draw a circle of any convenient radius using a compass and mark its center.
Draw a starting radius.
Using a protractor, draw adjacent sectors with angles: $24^\circ$ , $36^\circ$ , $54^\circ$ , $18^\circ$ , $60^\circ$ , $72^\circ$ , and $96^\circ$ .
Label each sector with its corresponding subject name.

Answer

The central angles for the pie chart are:

Language: $24^\circ$
Arts Education: $36^\circ$
Vocational Education: $54^\circ$
Social Science: $18^\circ$
Physical Education: $60^\circ$
Maths: $72^\circ$
Science: $96^\circ$

Common Mistakes

Sum of Angles Check: The sum of all central angles must always equal $360^\circ$ ( $24^\circ + 36^\circ + 54^\circ + 18^\circ + 60^\circ + 72^\circ + 96^\circ = 360^\circ$ ). If it does not, recheck your addition or arithmetic.
Incorrect Total: Dividing each frequency by $100$ instead of the total number of students ( $60$ ). The divisor must always be the total frequency.
