Proportional Reasoning - 2 | FIO

Question 14

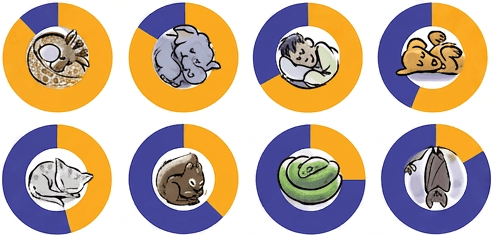

Fill in the average number of hours each living being sleeps in a day by looking at the charts. Select the appropriate hours from this list: 15, 2.5, 20, 8, 3.5, 13, 10.5, 18.

Solution

Understand the Question

A full circle represents a complete 24-hour day.
The shaded blue sector represents the portion of the day spent sleeping, while the remaining section represents waking hours.
The fraction $F$ of the day spent sleeping for a sleep duration of $S$ hours is: $F = \dfrac{S}{24}$
By calculating the corresponding fraction or sector size for each given sleep duration and comparing it with the visual pie charts, we can match each living being to its correct sleep time.

Step 1 · Calculate the sleep fractions of a 24-hour day

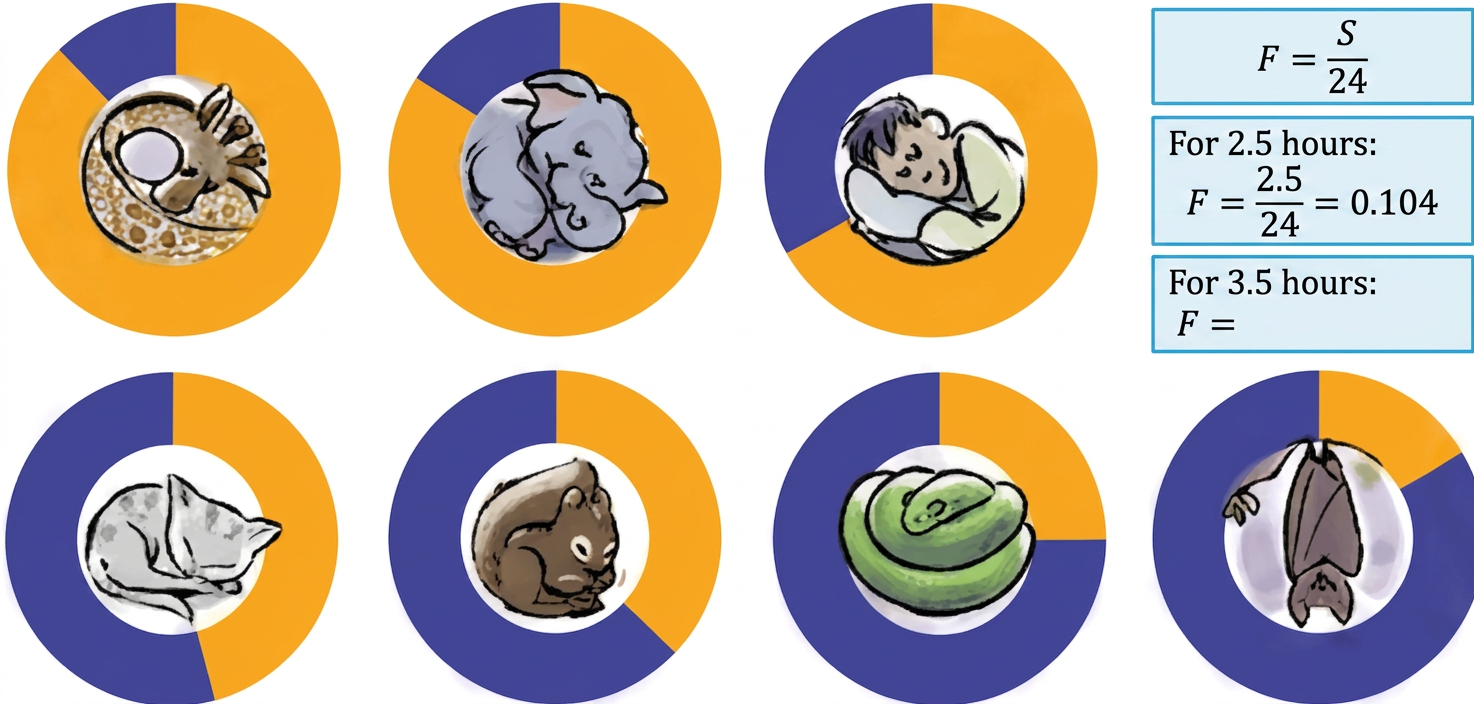

Diagram 1

Let $S$ be the sleep duration in hours and $F$ be the fraction of the 24-hour day spent sleeping: $F = \dfrac{S}{24}$

Calculating the fraction for each value in the given list:

For $2.5\text{ hours}$ : $F = \dfrac{2.5}{24} \approx 0.104$
For $3.5\text{ hours}$ : $F = \dfrac{3.5}{24} \approx 0.146$
For $8\text{ hours}$ : $F = \dfrac{8}{24} = \dfrac{1}{3} \approx 0.333$
For $10.5\text{ hours}$ : $F = \dfrac{10.5}{24} = \dfrac{7}{16} = 0.4375$
For $13\text{ hours}$ : $F = \dfrac{13}{24} \approx 0.542$
For $15\text{ hours}$ : $F = \dfrac{15}{24} = \dfrac{5}{8} = 0.625$
For $18\text{ hours}$ : $F = \dfrac{18}{24} = \dfrac{3}{4} = 0.75$
For $20\text{ hours}$ : $F = \dfrac{20}{24} = \dfrac{5}{6} \approx 0.833$

Step 2 · Match sleep hours to each living being

Comparing the blue sector of each circular chart with the calculated fractions in ascending order:

Giraffe: Smallest blue sector $\rightarrow \mathbf{2.5\text{ hours}}$ ( $0.104$ )
Elephant: Slightly larger than giraffe's sector $\rightarrow \mathbf{3.5\text{ hours}}$ ( $0.146$ )
Boy: Approximately one-third of the circle $\rightarrow \mathbf{8\text{ hours}}$ ( $0.333$ )
Dog: Less than half but more than one-third $\rightarrow \mathbf{10.5\text{ hours}}$ ( $0.4375$ )
Cat: Slightly more than half of the circle $\rightarrow \mathbf{13\text{ hours}}$ ( $0.542$ )
Squirrel: About five-eighths of the circle $\rightarrow \mathbf{15\text{ hours}}$ ( $0.625$ )
Snake: Exactly three-quarters of the circle $\rightarrow \mathbf{18\text{ hours}}$ ( $0.75$ )
Bat: Largest sector, about five-sixths of the circle $\rightarrow \mathbf{20\text{ hours}}$ ( $0.833$ )

Answer

Giraffe: $2.5\text{ hours}$

Elephant: $3.5\text{ hours}$
Boy: $8\text{ hours}$
Dog: $10.5\text{ hours}$
Cat: $13\text{ hours}$
Squirrel: $15\text{ hours}$
Snake: $18\text{ hours}$
Bat: $20\text{ hours}$

Common Mistakes

Assuming a 12-Hour Clock: Mistakenly treating the full circle as $12\text{ hours}$ instead of a full $24\text{ hours}$ day, leading to halving all calculated fractions.
Ordering Confusion: Mixing up adjacent values such as $2.5\text{ hours}$ and $3.5\text{ hours}$ , or $13\text{ hours}$ and $15\text{ hours}$ , without systematically sorting the visual sector sizes from smallest to largest.
