Question 24

Represent the following numbers using the Mayan system:

(i) 77 (ii) 100 (iii) 361 (iv) 721

Solution

Understand the Question

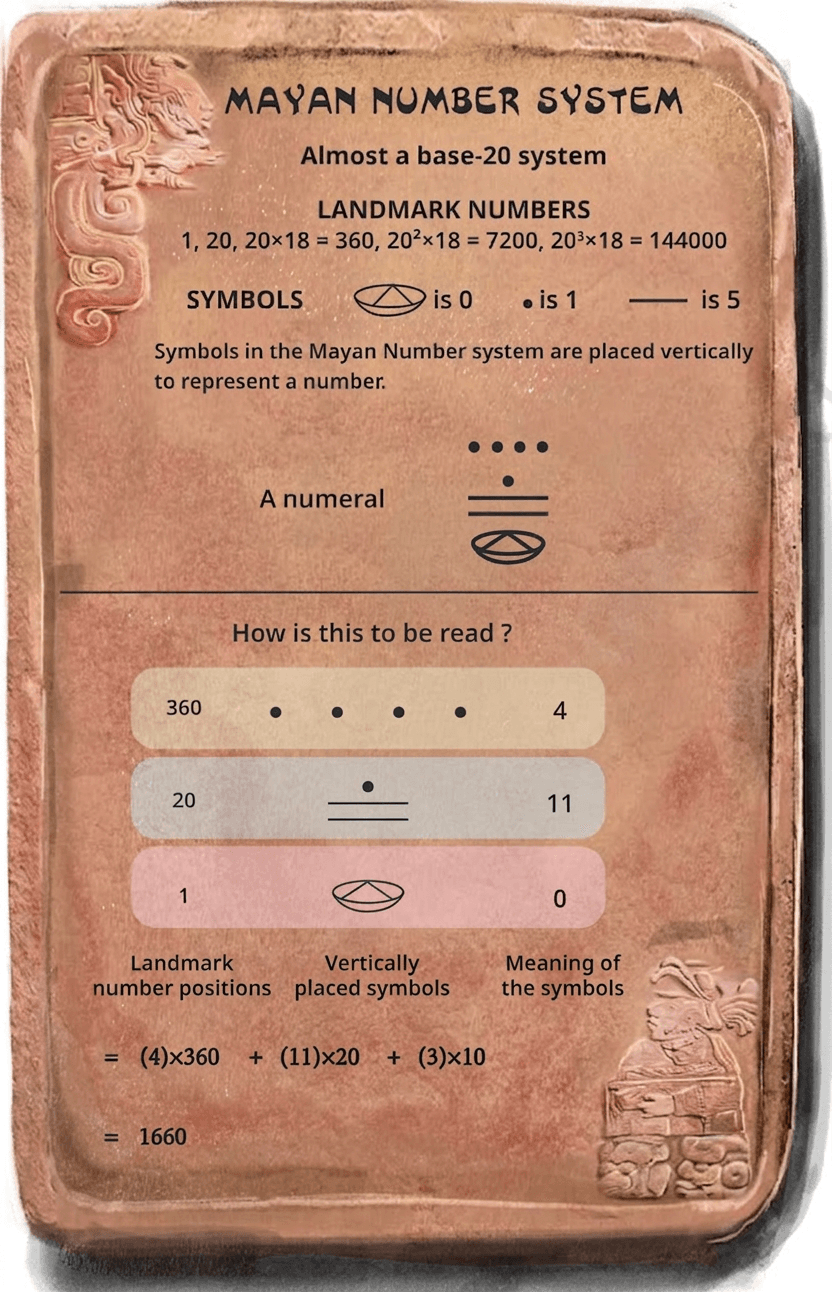

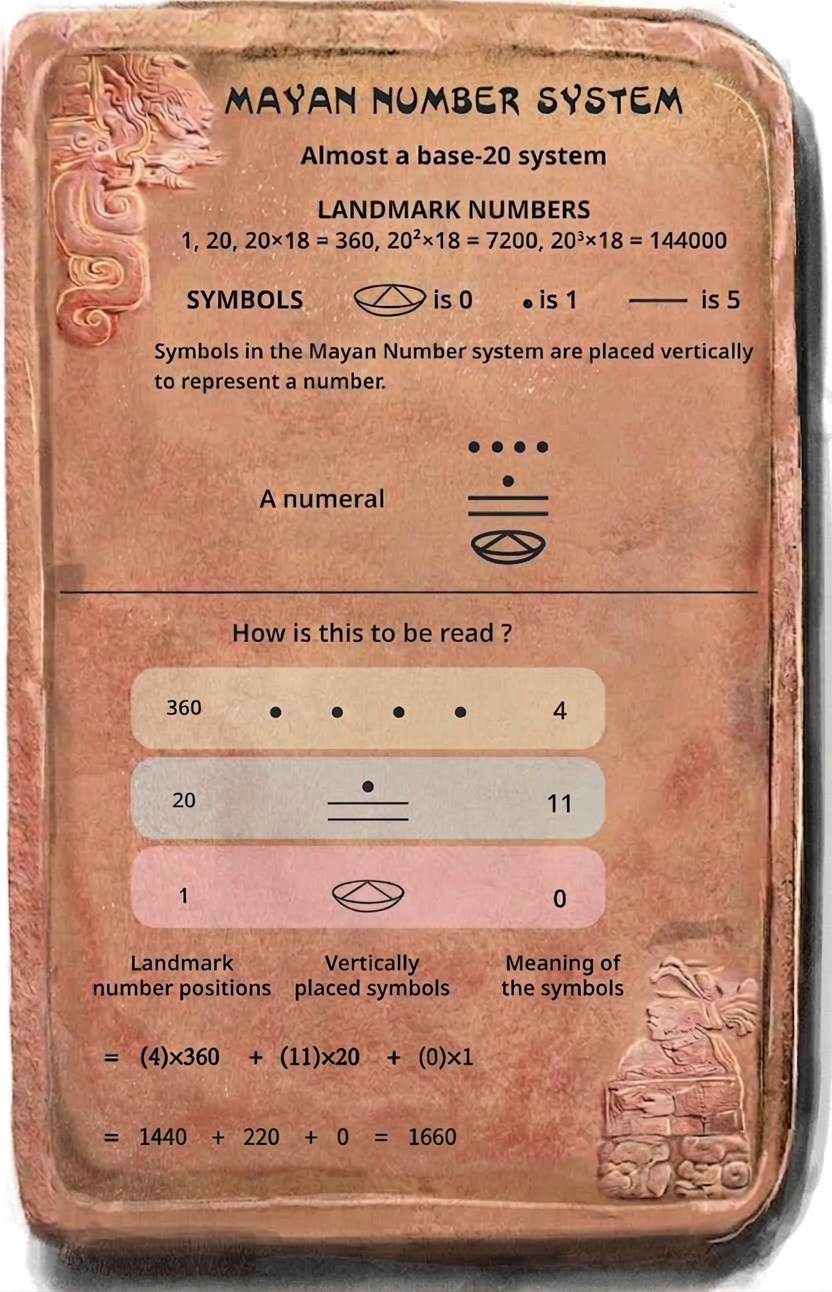

The Mayan numeral system uses three primary symbols:
- Dot (•): Represents $1$
- Bar (— or =): Represents $5$
- Shell (O): Represents $0$
Numbers are written vertically with higher place values at the top and the ones place at the bottom.
Place values in the Mayan system are modified base-20:
- $1^{\text{st}}$ level (bottom): $1$
- $2^{\text{nd}}$ level: $20$
- $3^{\text{rd}}$ level: $360$ ( $20 \times 18$ )
- $4^{\text{th}}$ level: $7200$ ( $20^2 \times 18$ )
To convert a number, divide successively by the highest possible place value to find the digit at each level, using the remainder for the lower levels.

(i) Represent 77 using the Mayan system.

Step 1 · Convert 77 to Mayan Numerals

The largest place value $\le 77$ is $20$ .

Divide $77$ by $20$ to find the $20$ s place: $77 \div 20 = 3 \text{ with a remainder of } 17$

20s place: $3 = \text{•••}$
1s place: $17 = (3 \times 5) + (2 \times 1) = \text{===••}$

Answer

(i) $\begin{array}{c} \text{•••} \\ \text{===••} \end{array}$

(ii) Represent 100 using the Mayan system.

Step 1 · Convert 100 to Mayan Numerals

The largest place value $\le 100$ is $20$ .

Divide $100$ by $20$ to find the $20$ s place: $100 \div 20 = 5 \text{ with a remainder of } 0$

20s place: $5 = \text{—}$
1s place: $0 = \text{(O)}$

Answer

(ii) $\begin{array}{c} \text{—} \\ \text{(O)} \end{array}$

(iii) Represent 361 using the Mayan system.

Step 1 · Convert 361 to Mayan Numerals

The largest place value $\le 361$ is $360$ .

Divide $361$ by $360$ : $361 \div 360 = 1 \text{ with a remainder of } 1$

360s place: $1 = \text{•}$

Now divide the remainder $1$ by $20$ : $1 \div 20 = 0 \text{ with a remainder of } 1$

20s place: $0 = \text{(O)}$
1s place: $1 = \text{•}$

Answer

(iii) $\begin{array}{c} \text{•} \\ \text{(O)} \\ \text{•} \end{array}$

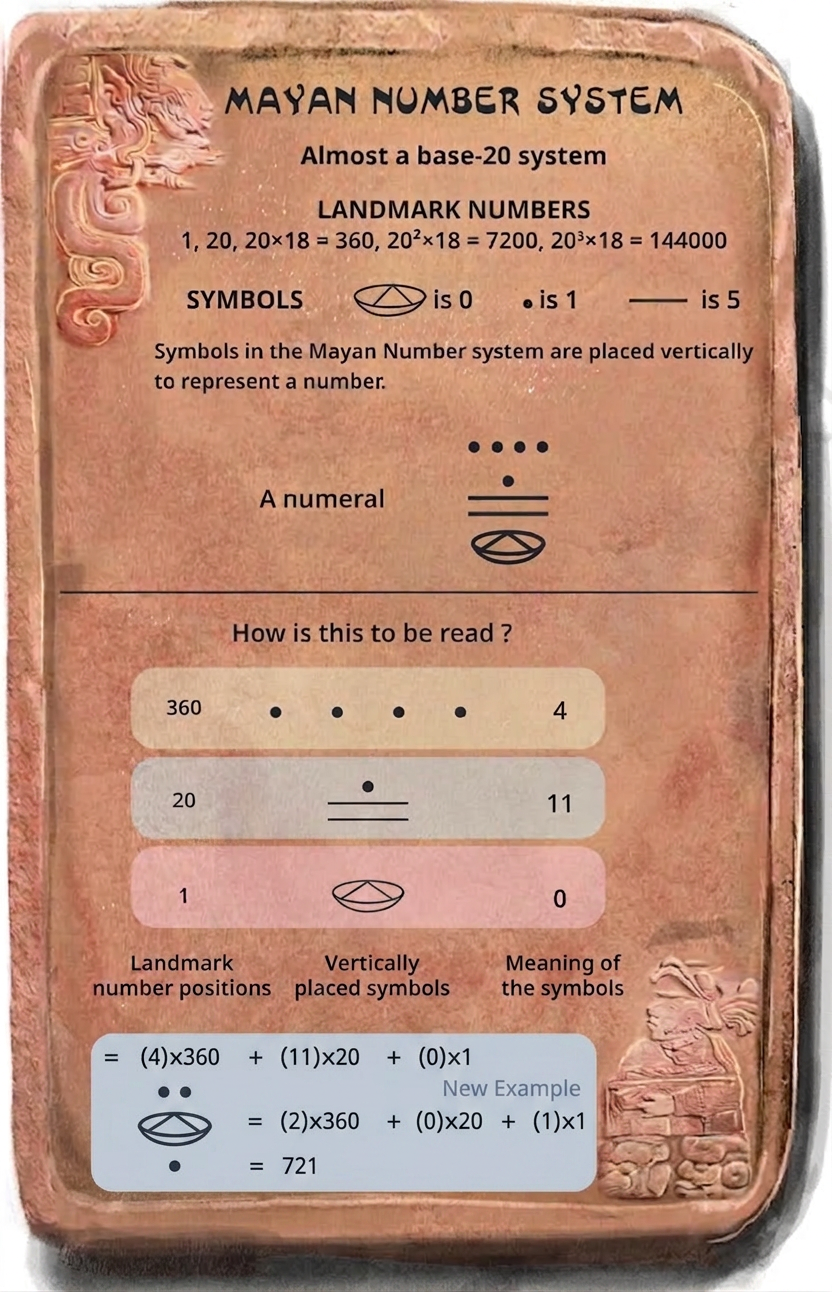

(iv) Represent 721 using the Mayan system.

Step 1 · Convert 721 to Mayan Numerals

The largest place value $\le 721$ is $360$ .

Divide $721$ by $360$ : $721 \div 360 = 2 \text{ with a remainder of } 1$

360s place: $2 = \text{••}$

Now divide the remainder $1$ by $20$ : $1 \div 20 = 0 \text{ with a remainder of } 1$

20s place: $0 = \text{(O)}$
1s place: $1 = \text{•}$

Answer

(iv) $\begin{array}{c} \text{••} \\ \text{(O)} \\ \text{•} \end{array}$

Common Mistakes

Omitting the Zero Placeholder: Forgetting to write the shell symbol (O) for empty positions (such as the 20s place in 361 and 721, or the 1s place in 100).
Incorrect Third Place Value: Assuming the 3rd level is $20 \times 20 = 400$ instead of $18 \times 20 = 360$ , which is specific to the Mayan calendar numeral system.
Writing Horizontally: Arranging place values from left to right instead of vertically from top (highest) to bottom (lowest).
