A Story of Numbers | IT

Question 20

Context: To get an idea of how the abacus was used for calculations, let us consider a simple addition problem: $2907 + 43$ . The two numbers were taken on either side of the vertical partition.

Q. How would you use this to find the sum?

Solution

Understand the Question

The abacus is divided by a vertical partition: represent the first number ( $2907$ ) on the left side and the second number ( $43$ ) on the right side across place value lines (Thousands, Hundreds, Tens, and Units).
Addition is done by combining beads column-by-column starting from the units ( $1\text{s}$ ) place moving leftward.
Whenever a place value accumulates $10$ beads, they are cleared ( $0$ ) and $1$ bead is carried over to the next higher place value on the left.

Step 1 · Set Up the Numbers on the Abacus

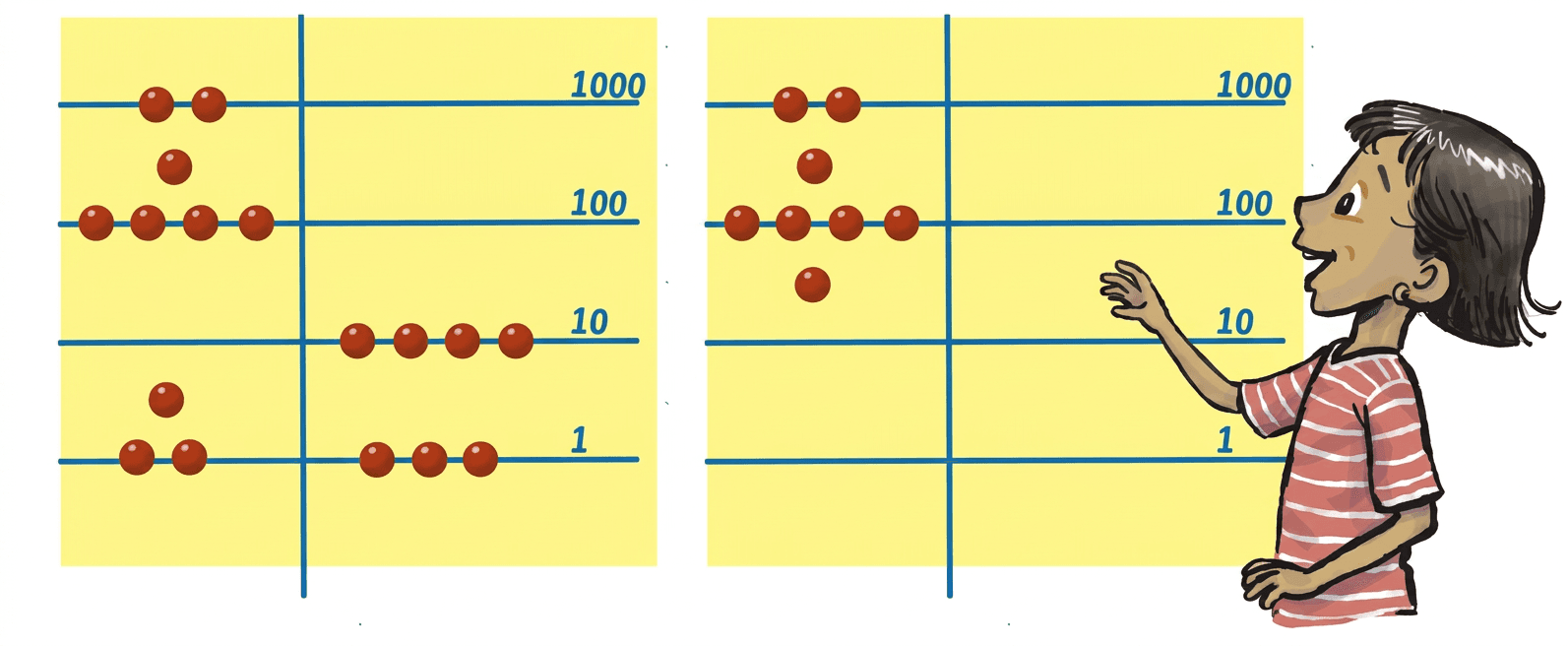

Represent $2907$ on the left side and $43$ on the right side according to place values: Diagram 1

Left side ( $2907$ ): $2$ beads on $1000\text{s}$ , $9$ beads on $100\text{s}$ , $0$ beads on $10\text{s}$ , and $7$ beads on $1\text{s}$ .
Right side ( $43$ ): $0$ beads on $1000\text{s}$ , $0$ beads on $100\text{s}$ , $4$ beads on $10\text{s}$ , and $3$ beads on $1\text{s}$ .

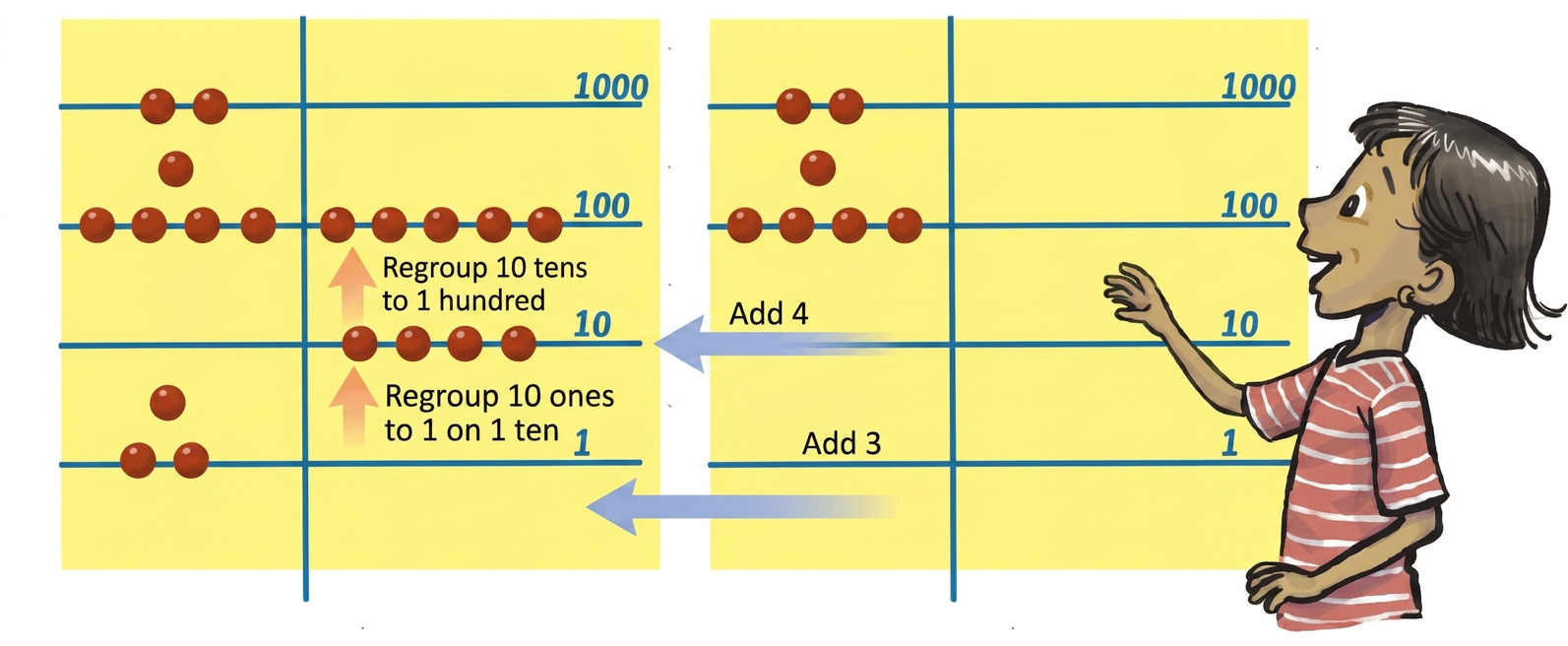

Step 2 · Add the Units (1s) Place

Combine the $1\text{s}$ beads from both sides: $7 + 3 = 10 \text{ beads}$

Since $10$ units equal $1$ ten:

Remove all $10$ beads from the $1\text{s}$ line (leaving $0$ beads on the $1\text{s}$ line).
Carry over $1$ bead to the $10\text{s}$ line on the left side.

Step 3 · Add the Tens (10s) Place

Combine the $10\text{s}$ beads including the carry-over: $0 + 4 + 1 = 5 \text{ beads}$

The $10\text{s}$ line on the left now has $5$ beads.

Step 4 · Add the Hundreds (100s) Place

Combine the $100\text{s}$ beads (no carry-over): $9 + 0 = 9 \text{ beads}$

The $100\text{s}$ line on the left remains $9$ beads.

Step 5 · Add the Thousands (1000s) Place

Combine the $1000\text{s}$ beads (no carry-over): $2 + 0 = 2 \text{ beads}$

The $1000\text{s}$ line on the left remains $2$ beads.

Step 6 · Read the Final Sum

Read the beads on the left side of the abacus:

$1000\text{s}$ line: $2$
$100\text{s}$ line: $9$
$10\text{s}$ line: $5$
$1\text{s}$ line: $0$

$\text{Sum} = 2950$

Answer

$2950$

Common Mistakes

Place Value Misalignment: Aligning $43$ incorrectly under hundreds and tens rather than tens and units.
Forgetting the Carry-Over: Forgetting to convert $10$ units into $1$ ten bead on the tens line, which leaves the units place incorrect.
