Coordinate Geometry | Exercise 7.2

Question 6

If $(1, 2)$ , $(4, y)$ , $(x, 6)$ and $(3, 5)$ are the vertices of a parallelogram taken in order, find $x$ and $y$ .

Solution

Understand the Question

Let the given vertices taken in order be $A(1, 2)$ , $B(4, y)$ , $C(x, 6)$ , and $D(3, 5)$ .
In a parallelogram, the diagonals bisect each other, meaning the midpoint of diagonal $AC$ is identical to the midpoint of diagonal $BD$ .
The midpoint formula for points $(x_1, y_1)$ and $(x_2, y_2)$ is: $M = \left(\dfrac{x_1 + x_2}{2}, \dfrac{y_1 + y_2}{2}\right)$
By equating the corresponding $x$ -coordinates and $y$ -coordinates of both midpoints, we can solve directly for $x$ and $y$ .

Step 1 · Find the Midpoints of Diagonals $AC$ and $BD$

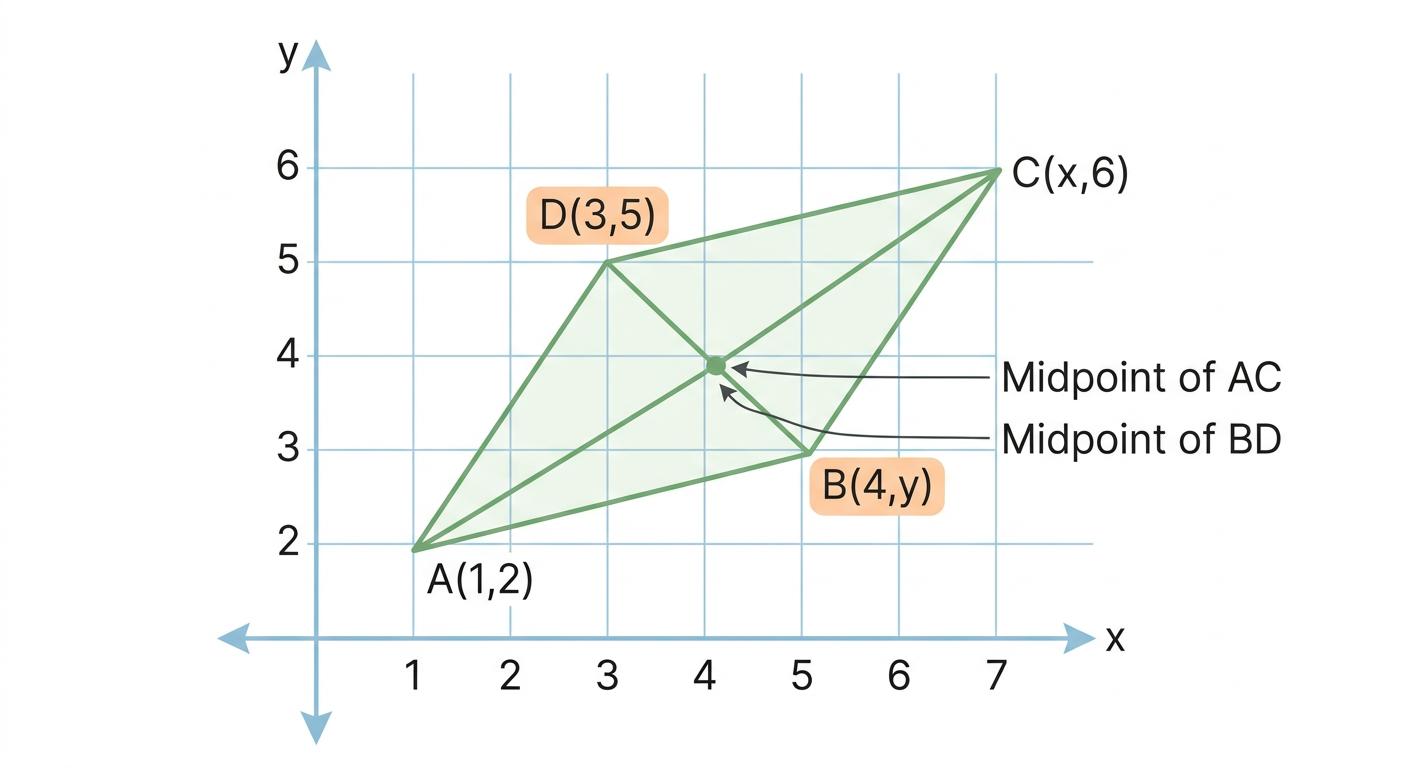

Let the vertices of parallelogram $ABCD$ in order be $A(1, 2)$ , $B(4, y)$ , $C(x, 6)$ , and $D(3, 5)$ . Diagram 1

Midpoint of diagonal $AC$ :

\begin{aligned} M_{\text{AC}} &= \left(\dfrac{x_1 + x_2}{2}, \dfrac{y_1 + y_2}{2}\right) \\[0.6em] &= \left(\dfrac{1 + x}{2}, \dfrac{2 + 6}{2}\right) \\[0.6em] &= \left(\dfrac{1 + x}{2}, \dfrac{8}{2}\right) \\[0.6em] &= \left(\dfrac{1 + x}{2}, 4\right) \end{aligned}

Midpoint of diagonal $BD$ :

\begin{aligned} M_{\text{BD}} &= \left(\dfrac{x_1 + x_2}{2}, \dfrac{y_1 + y_2}{2}\right) \\[0.6em] &= \left(\dfrac{4 + 3}{2}, \dfrac{y + 5}{2}\right) \\[0.6em] &= \left(\dfrac{7}{2}, \dfrac{y + 5}{2}\right) \end{aligned}

Step 2 · Equate Midpoints and Solve for $x$ and $y$

Since diagonals of a parallelogram bisect each other, $M_{\text{AC}} = M_{\text{BD}}$ .

Equating $x$ -coordinates:

\begin{aligned} \dfrac{1 + x}{2} &= \dfrac{7}{2} \\[0.6em] 1 + x &= 7 \\ x &= 7 - 1 \\ x &= 6 \end{aligned}

Equating $y$ -coordinates:

\begin{aligned} \dfrac{y + 5}{2} &= 4 \\[0.6em] y + 5 &= 4 \times 2 \\ y + 5 &= 8 \\ y &= 8 - 5 \\ y &= 3 \end{aligned}

Answer

$x = 6, \quad y = 3$

Common Mistakes

Wrong Diagonal Pairs: The vertices are taken in order ( $A \to B \to C \to D$ ). The diagonals must be $AC$ and $BD$ . Pairing adjacent vertices (like $AB$ or $CD$ ) as diagonals leads to incorrect equations.
Using the Distance Formula: Equating lengths of opposite sides ( $AB = CD$ and $BC = AD$ ) creates complex non-linear simultaneous equations. The midpoint property is far simpler and directly linear.
