Question 20

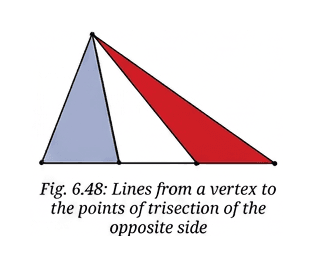

Show that the areas of the shaded blue triangle and the shaded red triangle are equal.

Find a way of cutting up the blue triangle into some number of pieces and rearranging the pieces to cover the red triangle.

Solution

Understand the Question

Area Equality: Two triangles have equal areas if they share the same base length and have the same perpendicular height, since $\text{Area} = \dfrac{1}{2} \times \text{base} \times \text{height}$ .
Dissection Principle (Conservation of Area): If one figure can be cut into a set of pieces that can be rearranged without gaps or overlaps to form another figure, both figures must have the exact same area.

Step 1 · Compare Bases and Heights of Both Triangles

Let the base of the blue triangle be $b_1$ and its perpendicular height be $h_1$ . Let the base of the red triangle be $b_2$ and its perpendicular height be $h_2$ .

Since both triangles have equal bases ( $b_1 = b_2 = b$ ) and lie between the same parallel lines ( $h_1 = h_2 = h$ ): $\text{Area of blue triangle} = \dfrac{1}{2} \times b \times h$ $\text{Area of red triangle} = \dfrac{1}{2} \times b \times h$

Therefore: $\text{Area of blue triangle} = \text{Area of red triangle}$

Step 2 · Dissect and Rearrange the Blue Triangle

Drop a perpendicular line (altitude) from the top vertex of the blue triangle to its base, dividing it into smaller right-angled triangles.
Cut along the altitude line to obtain the individual triangular pieces.
Translate and rotate the cut pieces to align with the boundaries of the red triangle without any overlap or gap.

Since the blue pieces completely and exactly cover the red triangle, their areas are equal by dissection.

Answer

The areas are equal because both triangles have the same base and height ( $\text{Area} = \dfrac{1}{2} \times \text{base} \times \text{height}$ ), and the blue triangle can be dissected along its altitude into congruent pieces that rearrange to cover the red triangle.

Common Mistakes

Assuming Different Shapes Mean Different Areas: Triangles with different slant heights or orientations can still have identical areas as long as their base and perpendicular height are equal.
Using Slant Height instead of Perpendicular Height: Always measure height as the perpendicular distance from the vertex to the line containing the base, not the length of a slanted side.
