Measuring Space: Perimeter and Area | EOT

Question 27

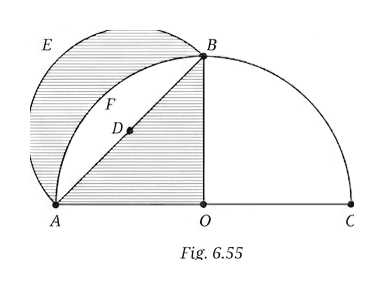

In the figure we see two shaded regions formed by a quarter circle, a semicircle, and a triangle.

Show that the areas of the two shaded regions are equal.

Solution

Understand the Question

Let the quarter circle $AOB$ have radius $R$ , with perpendicular radii $OA = OB = R$ and center $O$ .
The right-angled triangle $AOB$ has area $\dfrac{1}{2}R^2$ .
By the Pythagoras theorem, the hypotenuse $AB = R\sqrt{2}$ . The semicircle drawn on diameter $AB$ has an area equal to that of the quarter circle $AOB$ , which is $\dfrac{1}{4}\pi R^2$ .
By subtracting the circular segment from the semicircle, we can find the area of the crescent/lune region and compare it to the area of the shaded triangle region.

Step 1 · Calculate Areas of Triangle, Semicircle, and Quarter Circle

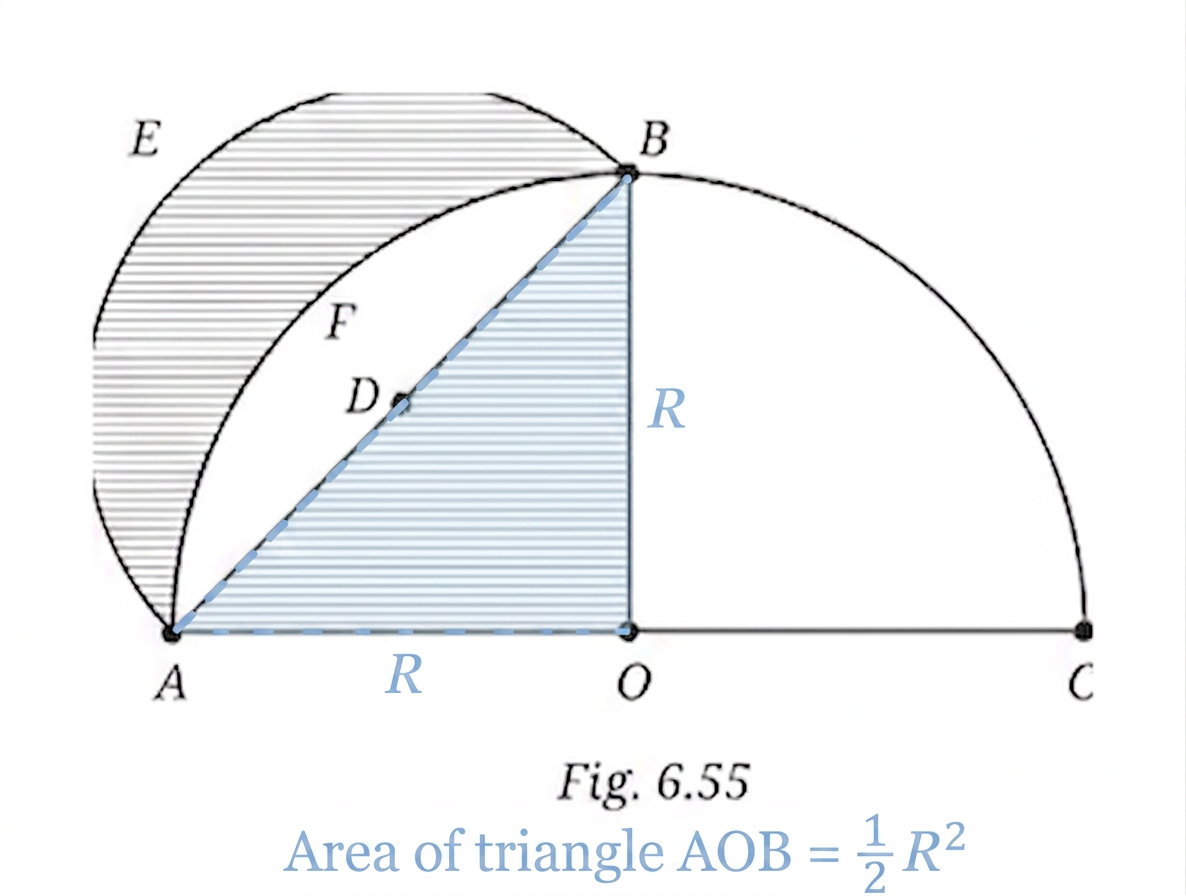

Let the radius of the quarter circle $AOB$ be $R$ , so $OA = OB = R$ . Diagram 1

Area of right triangle $AOB$ :

\begin{aligned} \text{Area of } \Delta AOB &= \dfrac{1}{2} \times OA \times OB \\[0.6em] &= \dfrac{1}{2} \times R \times R \\[0.6em] &= \dfrac{1}{2} R^2 \end{aligned}

Using the Pythagoras theorem in $\Delta AOB$ :

\begin{aligned} AB^2 &= OA^2 + OB^2 \\ &= R^2 + R^2 \\ &= 2R^2 \\ AB &= R\sqrt{2} \end{aligned}

Radius of the semicircle on diameter $AB$ is $\dfrac{R\sqrt{2}}{2} = \dfrac{R}{\sqrt{2}}$ .

Area of the semicircle on $AB$ :

\begin{aligned} \text{Area of semicircle on } AB &= \dfrac{1}{2} \pi \left(\dfrac{R\sqrt{2}}{2}\right)^2 \\[0.6em] &= \dfrac{1}{2} \pi \left(\dfrac{2R^2}{4}\right) \\[0.6em] &= \dfrac{1}{4} \pi R^2 \end{aligned}

Area of the quarter circle $AOB$ : $\text{Area of quarter circle } AOB = \dfrac{1}{4} \pi R^2$

Step 2 · Calculate Area of the Outer Shaded Region (Lune)

The circular segment between chord $AB$ and the quarter circle arc has area:

\begin{aligned} \text{Area of segment } AB &= \text{Area of quarter circle } AOB - \text{Area of } \Delta AOB \\[0.6em] &= \dfrac{1}{4} \pi R^2 - \dfrac{1}{2} R^2 \end{aligned}

Now, calculate the area of the outer shaded region (lune on $AB$ ):

\begin{aligned} \text{Area of outer shaded region} &= \text{Area of semicircle on } AB - \text{Area of segment } AB \\[0.6em] &= \dfrac{1}{4} \pi R^2 - \left(\dfrac{1}{4} \pi R^2 - \dfrac{1}{2} R^2\right) \\[0.6em] &= \dfrac{1}{4} \pi R^2 - \dfrac{1}{4} \pi R^2 + \dfrac{1}{2} R^2 \\[0.6em] &= \dfrac{1}{2} R^2 \end{aligned}

Step 3 · Compare the Two Shaded Areas

The area of the shaded triangle $AOB$ is: $\text{Area of } \Delta AOB = \dfrac{1}{2} R^2$

Since both shaded regions have an area equal to $\dfrac{1}{2} R^2$ , their areas are equal.

Answer

Hence proved, both shaded regions have an equal area of $\dfrac{1}{2} R^2$ .

Common Mistakes

Diameter vs. Radius of Semicircle: Forgetting to divide the hypotenuse $AB = R\sqrt{2}$ by $2$ to obtain the radius of the semicircle on $AB$ .
Sign Errors in Subtraction: Dropping the bracket when subtracting $\left(\dfrac{1}{4}\pi R^2 - \dfrac{1}{2}R^2\right)$ , which leads to an incorrect sign for the triangle's area.
