Question 1

Earlier, we saw a method to create a square with double the area of a given square paper. There is another method to do this in which two identical square papers are cut in the following way.

Can you arrange these pieces to create a square with double the area of either square?

Solution

Understand the Question

Each original square has a side length $s$ and area $s^2$ .
Cutting two identical squares diagonally produces $4$ congruent right-angled isosceles triangles with legs of length $s$ .
The total area of all $4$ pieces combined is $2 \times s^2 = 2s^2$ , which is double the area of one original square.
By arranging the $4$ pieces so that their right-angled vertices meet at the center, the hypotenuses form the four outer edges of a new, larger square.

Step 1 · Find Dimensions of the Triangular Pieces

Let the side length of each original square be $s$ .

$\text{Area of one square} = s^2$

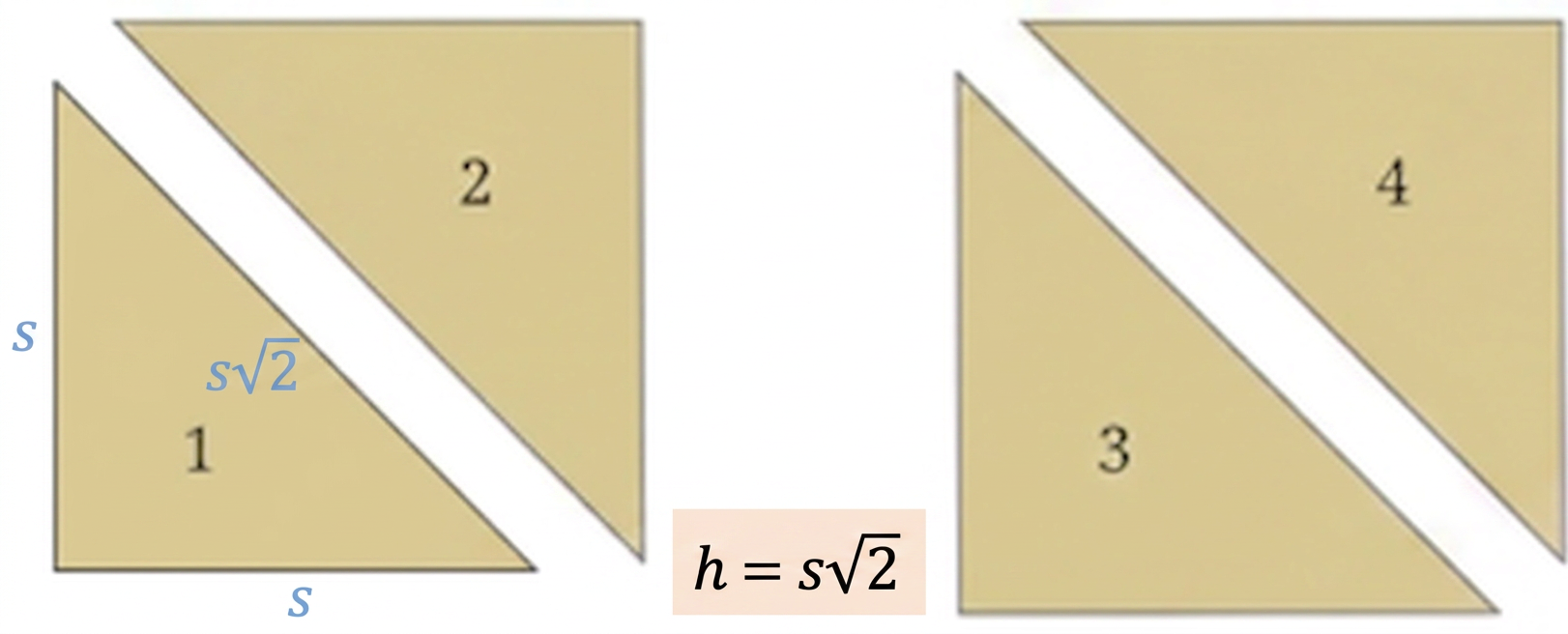

Cutting two identical squares along their diagonals yields $4$ congruent right-angled isosceles triangles with legs of length $s$ . Diagram 1

By Pythagoras theorem, the hypotenuse $h$ of each triangle is

\begin{aligned} h^2 &= s^2 + s^2 \\ &= 2s^2 \\ h &= \sqrt{2s^2} = s\sqrt{2} \end{aligned}

Step 2 · Arrange Pieces to Form a New Square

Place the $4$ triangles such that their right-angled vertices meet at the center. Diagram 2

The hypotenuses of the $4$ triangles form the outer sides of the new square.

$\text{Side length of new square} = s\sqrt{2}$

\begin{aligned} \text{Area of new square} &= (\text{side length})^2 \\ &= (s\sqrt{2})^2 \\ &= s^2 \times (\sqrt{2})^2 \\ &= s^2 \times 2 \\ &= 2s^2 \end{aligned}

The area of this new square ( $2s^2$ ) is double the area of an original square ( $s^2$ ).

Answer

Yes. Arrange the four triangular pieces with their right-angled vertices meeting at the center to form a square of side length $s\sqrt{2}$ and area $2s^2$ .

Common Mistakes

Mismatched Orientation: Arranging the pieces with their hypotenuses touching instead of their right-angled vertices, which creates a rectangle or parallelogram rather than a single square.
Doubling the Side Instead of Area: Assuming a square with double the area has side length $2s$ (which yields an area of $4s^2$ ). The correct side length is $s\sqrt{2}$ .
