Question 26

In Fig. 6.12 can you explain why AOD, BOE and COF are straight lines?

Solution

We can use the angles around the center of the hexagon to show these lines are straight.

Step 1 — Understanding the Hexagon

A regular hexagon has six equal sides. It also has six equal interior angles. The center point is O. We can draw lines from O to each vertex. This divides the hexagon into six triangles. These six triangles are all equilateral triangles. So, each angle at the center is $60^\circ$ .

Step 2 — Checking Line AOD

We want to see if AOD is a straight line. A straight line has an angle of $180^\circ$ . Let us look at the angles around point O. The angle $\angle AOB$ is $60^\circ$ . The angle $\angle BOC$ is $60^\circ$ . The angle $\angle COD$ is $60^\circ$ . We add these angles to find $\angle AOD$ .

$\angle AOD = \angle AOB + \angle BOC + \angle COD$

$= 60^\circ + 60^\circ + 60^\circ$

$\boxed{\mathbf{180^\circ}}$

Since $\angle AOD$ is $180^\circ$ , AOD is a straight line.

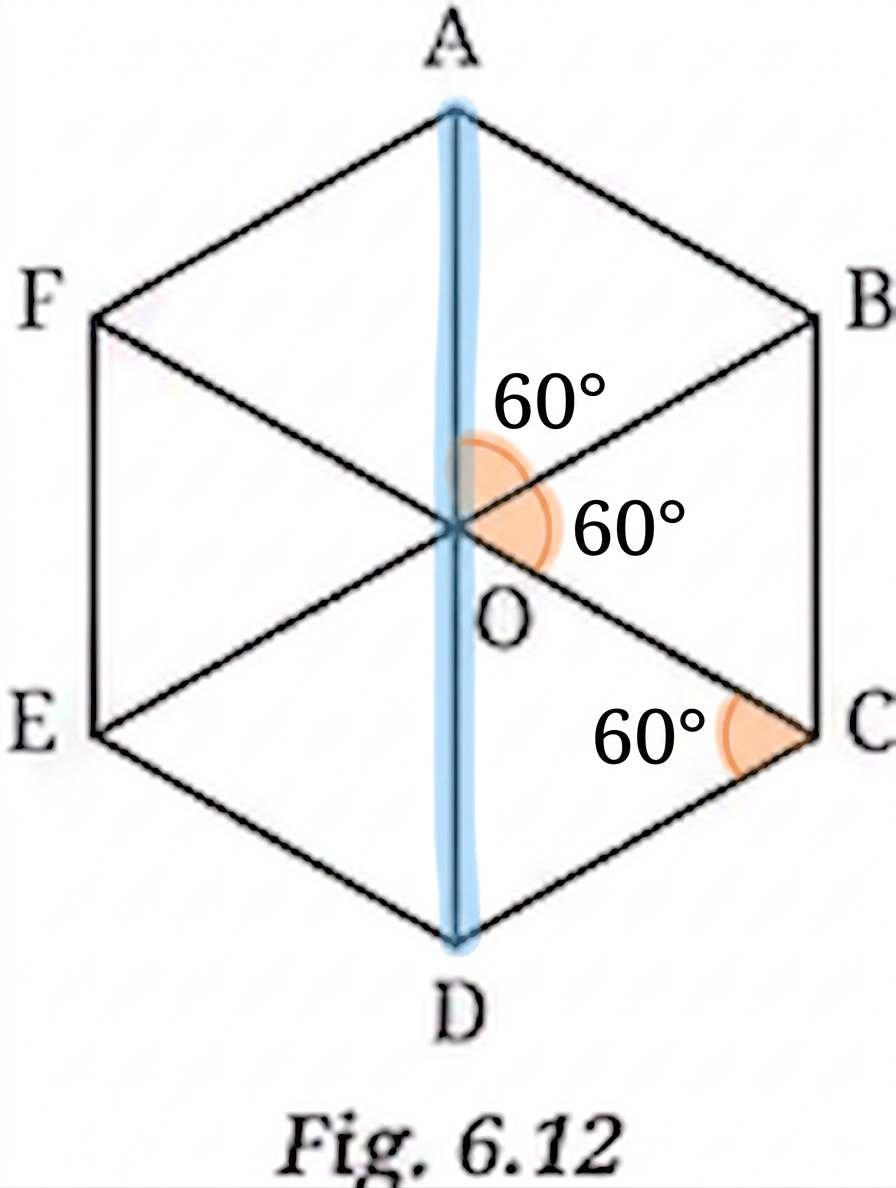

Diagram 1

Step 3 — Checking Line BOE

Now we check if BOE is a straight line. We look at the angles around point O again. The angle $\angle BOC$ is $60^\circ$ . The angle $\angle COD$ is $60^\circ$ . The angle $\angle DOE$ is $60^\circ$ . We add these angles to find $\angle BOE$ .

$\angle BOE = \angle BOC + \angle COD + \angle DOE$

$= 60^\circ + 60^\circ + 60^\circ$

$\boxed{\mathbf{180^\circ}}$

Since $\angle BOE$ is $180^\circ$ , BOE is a straight line.

Step 4 — Checking Line COF

Finally, we check if COF is a straight line. We look at the angles around point O one more time. The angle $\angle COD$ is $60^\circ$ . The angle $\angle DOE$ is $60^\circ$ . The angle $\angle EOF$ is $60^\circ$ . We add these angles to find $\angle COF$ .

$\angle COF = \angle COD + \angle DOE + \angle EOF$

$= 60^\circ + 60^\circ + 60^\circ$

$\boxed{\mathbf{180^\circ}}$

Since $\angle COF$ is $180^\circ$ , COF is a straight line.

Answer

AOD, BOE, and COF are straight lines because the sum of the angles around the center O for each line is $180^\circ$ .
