Question 12

Give the order of rotational symmetry for each figure:

Question diagram 1
Check your answer with HomiSolve it yourself, then let Homi check your steps and spot mistakes.
Solution
Understand the Question
  • Rotational symmetry is when an object looks identical to its original position after being rotated about its centre by an angle less than or equal to 360∘360^\circ.
  • The order of rotational symmetry is the number of times a figure matches its original appearance during one complete turn of 360∘360^\circ. Order of Rotational Symmetry=360∘Angle of Rotation\text{Order of Rotational Symmetry} = \dfrac{360^\circ}{\text{Angle of Rotation}}

(i) Give the order of rotational symmetry for the first figure (circle with cross).

Step 1 · Find the Order of Rotational Symmetry

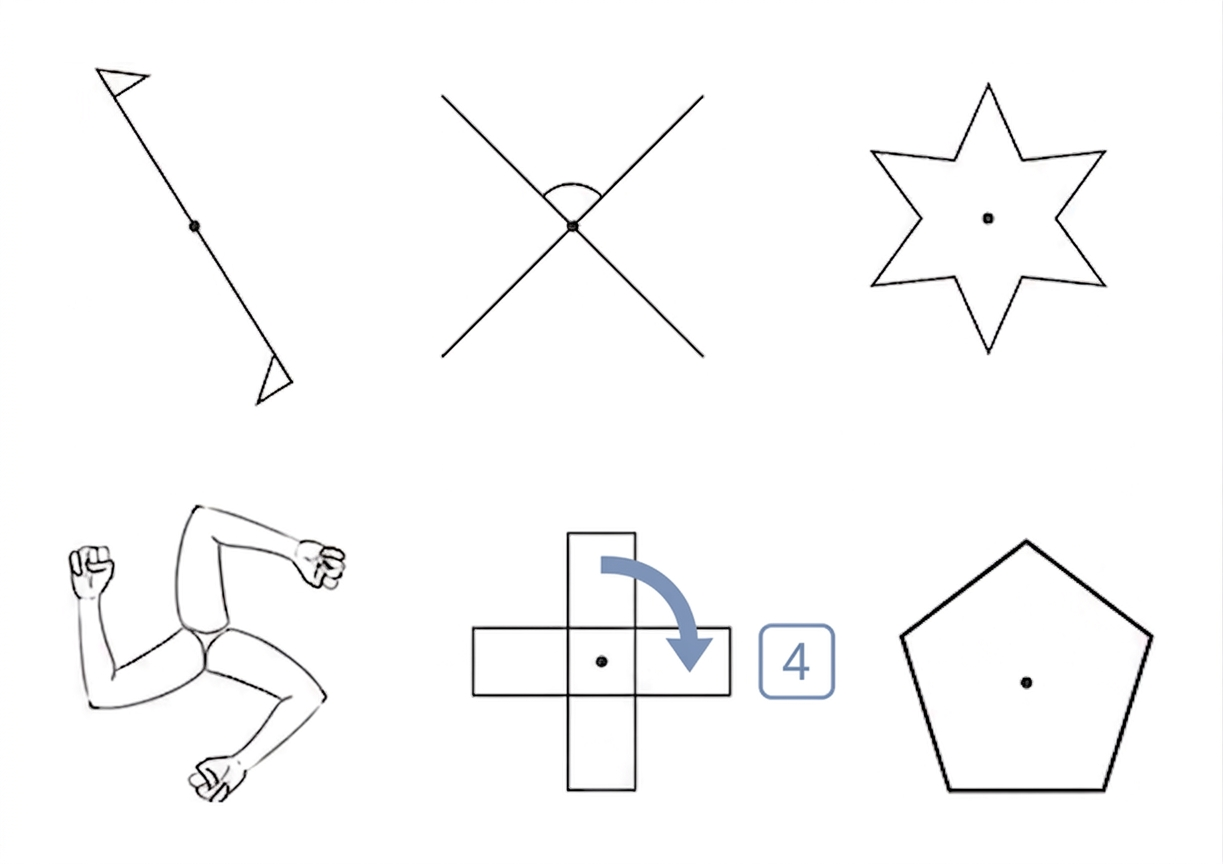

Diagram 5

The figure has four identical arms and coincides with itself at rotations of: 90∘,180∘,270∘, and 360∘90^\circ, 180^\circ, 270^\circ, \text{ and } 360^\circ

Order of rotational symmetry=360∘90∘=4\text{Order of rotational symmetry} = \dfrac{360^\circ}{90^\circ} = 4

Answer

(i) 4

(ii) Give the order of rotational symmetry for the second figure (triangle / three-armed figure).

Step 1 · Find the Order of Rotational Symmetry

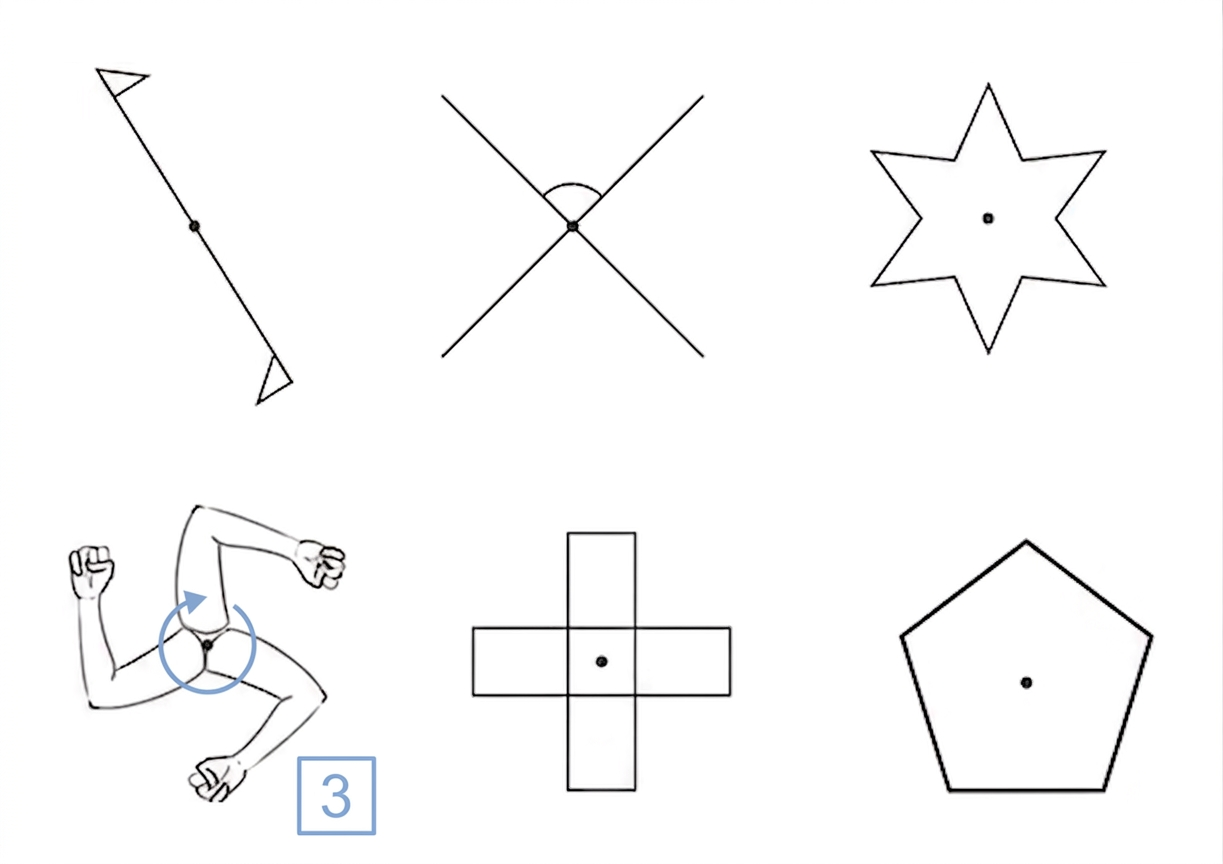

Diagram 3

The figure has three identical arms and coincides with itself at rotations of: 120∘,240∘, and 360∘120^\circ, 240^\circ, \text{ and } 360^\circ

Order of rotational symmetry=360∘120∘=3\text{Order of rotational symmetry} = \dfrac{360^\circ}{120^\circ} = 3

Answer

(ii) 3

(iii) Give the order of rotational symmetry for the third figure (circle with three spokes / triskelion).

Step 1 · Find the Order of Rotational Symmetry

The figure has three identical curved spokes and coincides with itself at rotations of: 120∘,240∘, and 360∘120^\circ, 240^\circ, \text{ and } 360^\circ

Order of rotational symmetry=360∘120∘=3\text{Order of rotational symmetry} = \dfrac{360^\circ}{120^\circ} = 3

Answer

(iii) 3

(iv) Give the order of rotational symmetry for the fourth figure (four-blade fan).

Step 1 · Find the Order of Rotational Symmetry

The figure has four identical blades and coincides with itself at rotations of: 90∘,180∘,270∘, and 360∘90^\circ, 180^\circ, 270^\circ, \text{ and } 360^\circ

Order of rotational symmetry=360∘90∘=4\text{Order of rotational symmetry} = \dfrac{360^\circ}{90^\circ} = 4

Answer

(iv) 4

(v) Give the order of rotational symmetry for the fifth figure (cross).

Step 1 · Find the Order of Rotational Symmetry

The cross shape coincides with itself at rotations of: 90∘,180∘,270∘, and 360∘90^\circ, 180^\circ, 270^\circ, \text{ and } 360^\circ

Order of rotational symmetry=360∘90∘=4\text{Order of rotational symmetry} = \dfrac{360^\circ}{90^\circ} = 4

Answer

(v) 4

Common Mistakes
  • Angle vs. Order Confusion: Confusing the angle of rotation (e.g. 90∘90^\circ or 120∘120^\circ) with the order of rotational symmetry (44 or 33).
  • Order Zero Misconception: Believing a figure can have order 00. Every figure has at least order 11 because it looks identical after a full rotation of 360∘360^\circ.
