Question 13

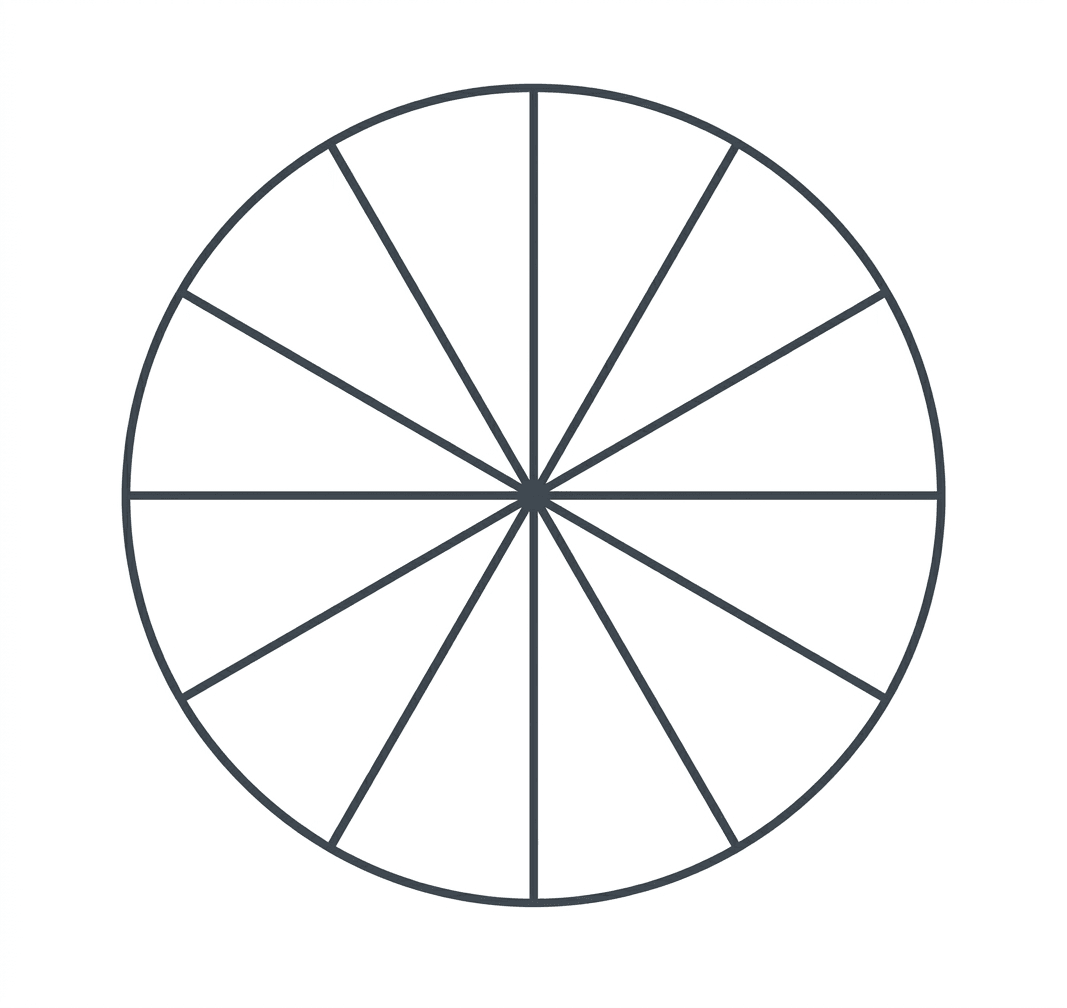

Colour the sectors of the circle below so that the figure has:

(i) 3 angles of symmetry

(ii) 4 angles of symmetry

(iii) What are the possible numbers of angles of symmetry you can obtain by colouring the sectors in different ways?

Question diagram 1
Check your answer with HomiSolve it yourself, then let Homi check your steps and spot mistakes.
Solution

FIO-13

Chapter: SYMMETRY
Class: 6 (Class 6)
Category: figure_it_out

Question

Colour the sectors of the circle below so that the figure has:

(i) 3 angles of symmetry

(ii) 4 angles of symmetry

(iii) What are the possible numbers of angles of symmetry you can obtain by colouring the sectors in different ways?

Question diagram(s):

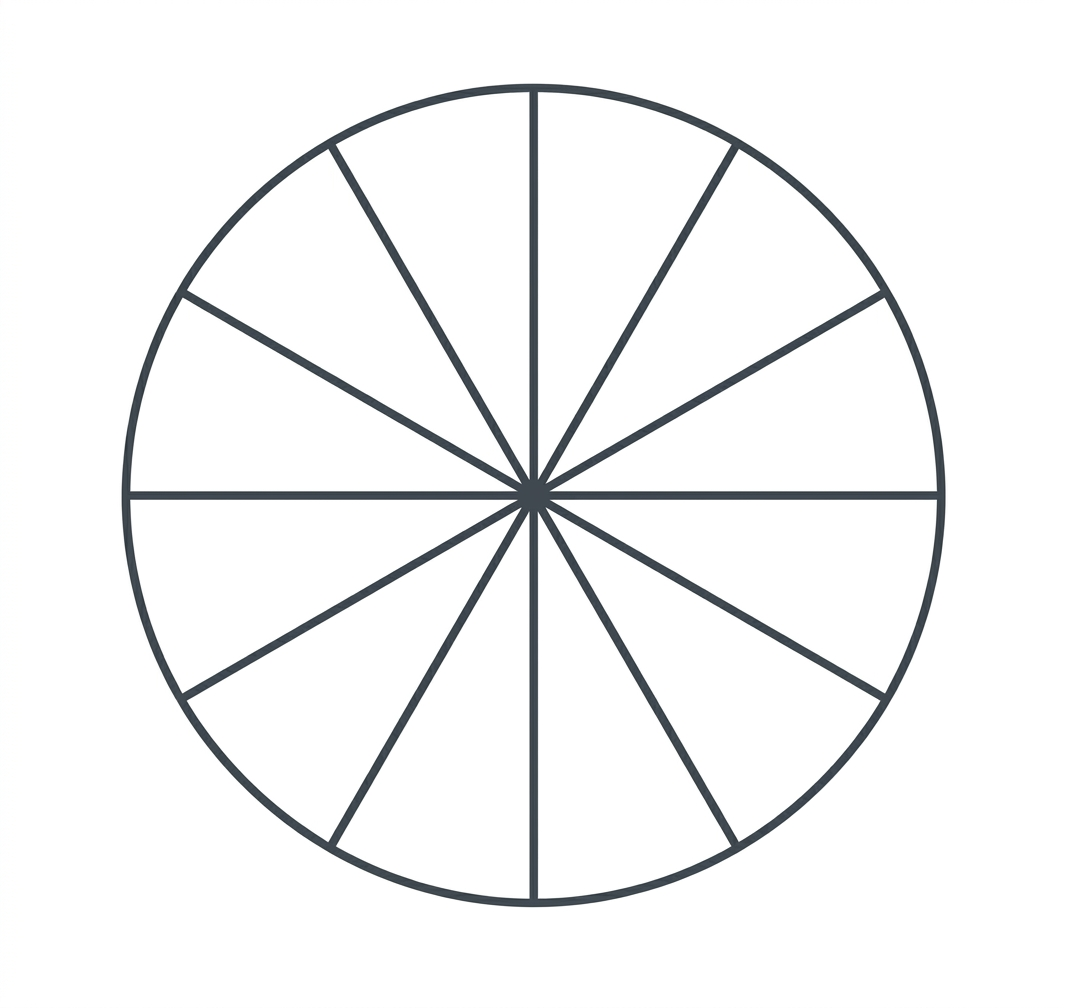

Question diagram

The number of angles of symmetry must be a factor of the total number of sectors.

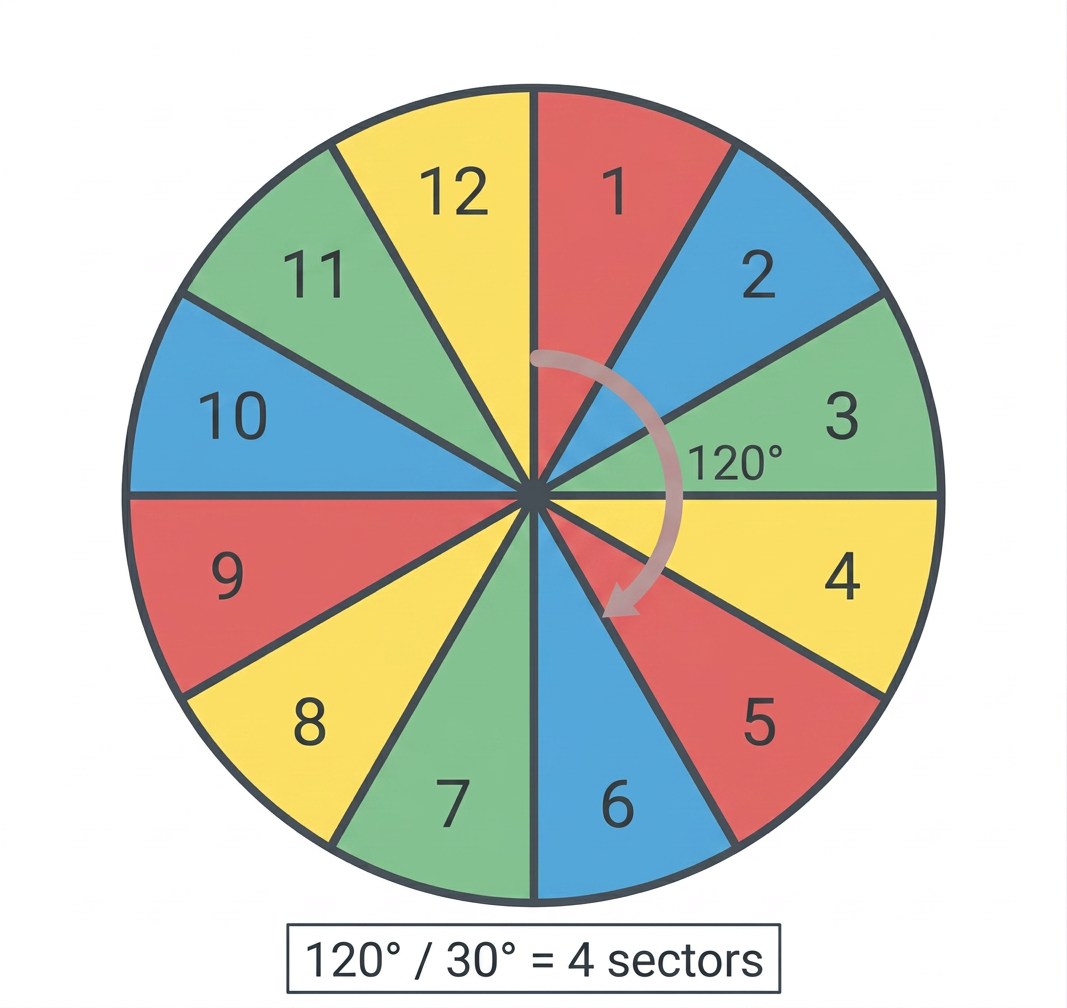

Step 1 — Coloring for 3 angles of symmetry

The circle has 12 equal sectors. Each sector covers 30 degrees. We want 3 angles of symmetry. This means the figure must look the same after rotating by 120 degrees. Let us find how many sectors this rotation covers.

120∘/30∘120^\circ / 30^\circ

4 sectors\boxed{4 \text{ sectors}}

So, the pattern of colors must repeat every 4 sectors. Let us number the sectors from 1 to 12 clockwise. We can color sector 1 red. Then sector 5 must be red. Sector 9 must be red. We can color sector 2 blue. Then sector 6 must be blue. Sector 10 must be blue. We can color sector 3 green. Then sector 7 must be green. Sector 11 must be green. We can color sector 4 yellow. Then sector 8 must be yellow. Sector 12 must be yellow. This coloring makes the figure look the same after every rotation of 120 degrees.

Diagram 1

Step 2 — Coloring for 4 angles of symmetry

We want 4 angles of symmetry. This means the figure must look the same after rotating by 90 degrees. Let us find how many sectors this rotation covers.

90∘/30∘90^\circ / 30^\circ

3 sectors\boxed{3 \text{ sectors}}

So, the pattern of colors must repeat every 3 sectors. Let us number the sectors from 1 to 12 clockwise. We can color sector 1 red. Then sector 4 must be red. Sector 7 must be red. Sector 10 must be red. We can color sector 2 blue. Then sector 5 must be blue. Sector 8 must be blue. Sector 11 must be blue. We can color sector 3 green. Then sector 6 must be green. Sector 9 must be green. Sector 12 must be green. This coloring makes the figure look the same after every rotation of 90 degrees.

Diagram 2

Step 3 — Possible numbers of angles of symmetry

The number of angles of symmetry must be a divisor of the total number of sectors. The total number of sectors is 12. The divisors of 12 are 1, 2, 3, 4, 6, 12. We can achieve different numbers of angles of symmetry. To get 2 angles of symmetry, the pattern of colors repeats every 6 sectors. This means it looks the same after a 180 degree rotation. To get 3 angles of symmetry, the pattern of colors repeats every 4 sectors. This means it looks the same after a 120 degree rotation. To get 4 angles of symmetry, the pattern of colors repeats every 3 sectors. This means it looks the same after a 90 degree rotation. To get 6 angles of symmetry, the pattern of colors repeats every 2 sectors. This means it looks the same after a 60 degree rotation. The possible numbers of angles of symmetry are 2, 3, 4, or 6.

Answer

(i) Will look same after every rotation of 120°. (ii) Will look same after every rotation of 90°. (iii) Four ways are possible (2, 3, 4, or 6 angles of symmetry).
