Now, see the figures below. Is the area of the blue rectangle more or less than the area of the yellow triangle? Or is it the same? Why? Can you see some relationship between the blue rectangle and the yellow triangle and their areas? Write the relationship here.

Perimeter and Area | IT

Question 9

Now, see the figures below. Is the area of the blue rectangle more or less than the area of the yellow triangle? Or is it the same? Why?

Can you see some relationship between the blue rectangle and the yellow triangle and their areas? Write the relationship here.

Solution

Understand the Question

To compare the areas of the blue rectangle (square) and the yellow triangle, find their areas in terms of side length $s$ .
Area of Square/Rectangle: $\text{Side} \times \text{Side} = s \times s = s^2$
Area of Triangle: $\dfrac{1}{2} \times \text{base} \times \text{height} = \dfrac{1}{2} \times 2s \times s = s^2$
Since both formulas give $s^2$ , their areas are equal.

(i) Is the area of the blue rectangle more or less than the area of the yellow triangle? Or is it the same? Why?

Step 1 · Calculate Area of the Blue Rectangle

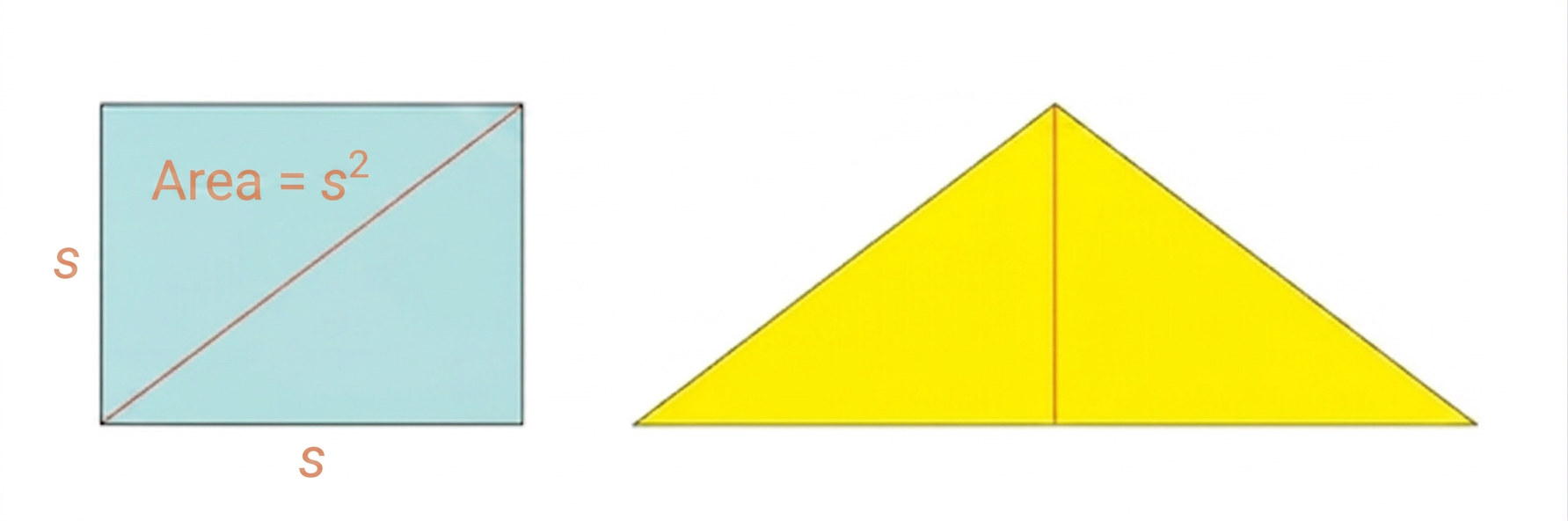

Let the side of the blue square/rectangle be $s$ units. Diagram 1

\begin{aligned} \text{Area of blue rectangle} &= s \times s \\ &= s^2 \text{ square units} \end{aligned}

Step 2 · Calculate Area of the Yellow Triangle

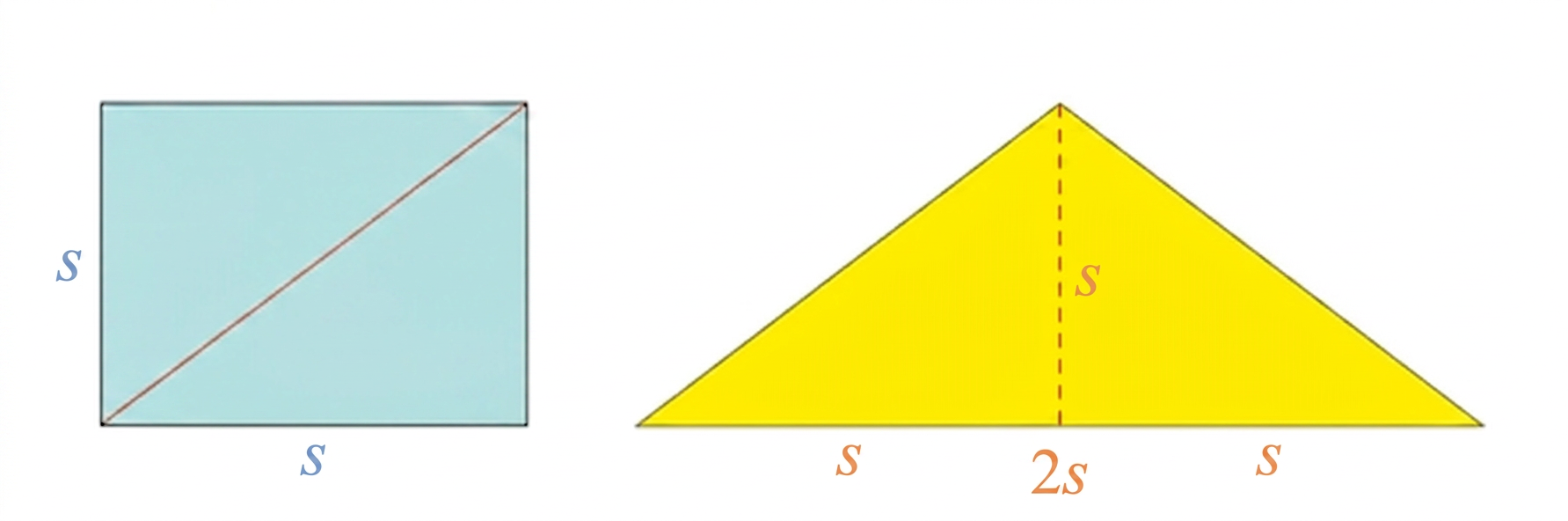

The height of the yellow triangle is $s$ units and its base is $2s$ units. Diagram 2

\begin{aligned} \text{Area of yellow triangle} &= \dfrac{1}{2} \times \text{base} \times \text{height} \\[0.6em] &= \dfrac{1}{2} \times (2s) \times s \\[0.6em] &= s^2 \text{ square units} \end{aligned}

Answer

(i) The area of the blue rectangle and the yellow triangle are the same ( $s^2\text{ square units}$ ).

(ii) Can you see some relationship between the blue rectangle and the yellow triangle and their areas? Write the relationship here.

Step 1 · Find the Relationship Between the Areas

Both shapes have the exact same area: $\text{Area of blue rectangle} = \text{Area of yellow triangle} = s^2$

Additionally, a diagonal divides the blue rectangle into two identical triangles of area $\dfrac{s^2}{2}$ each. Therefore: $\text{Area of rectangle} = 2 \times \text{Area of one internal triangle}$

Answer

(ii) $\text{Area of Blue Rectangle} = \text{Area of Yellow Triangle} = 2 \times \text{Area of each half-triangle}$

Common Mistakes

Forgetting the Half Factor: Omitting $\dfrac{1}{2}$ in the triangle area formula $\dfrac{1}{2} \times \text{base} \times \text{height}$ , leading to an incorrect double area.
Misidentifying Dimensions: Overlooking that the base of the yellow triangle spans $2s$ while its height is only $s$ .
