Triangles | Exercise 6.3

Question 16

If AD and PM are medians of triangles ABC and PQR, respectively where $\Delta$ ABC $\sim$ $\Delta$ PQR, prove that

$\frac{\text{AB}}{\text{PQ}} = \frac{\text{AD}}{\text{PM}}$

Solution

We will use the properties of similar triangles to prove the relationship between the medians.

Step 1 — List what we know

We are given that $\Delta$ ABC is similar to $\Delta$ PQR. This means their corresponding sides are in proportion.

$\frac{\text{AB}}{\text{PQ}} = \frac{\text{BC}}{\text{QR}} = \frac{\text{AC}}{\text{PR}} \quad \text{... (1)}$

Also, their corresponding angles are equal.

$\angle \text{A} = \angle \text{P}$ $\angle \text{B} = \angle \text{Q} \quad \text{... (2)}$ $\angle \text{C} = \angle \text{R}$

We are told that AD is a median of $\Delta$ ABC. This means D is the midpoint of BC.

$\text{BD} = \frac{\text{BC}}{2} \quad \text{... (3)}$

We are also told that PM is a median of $\Delta$ PQR. This means M is the midpoint of QR.

$\text{QM} = \frac{\text{QR}}{2} \quad \text{... (4)}$

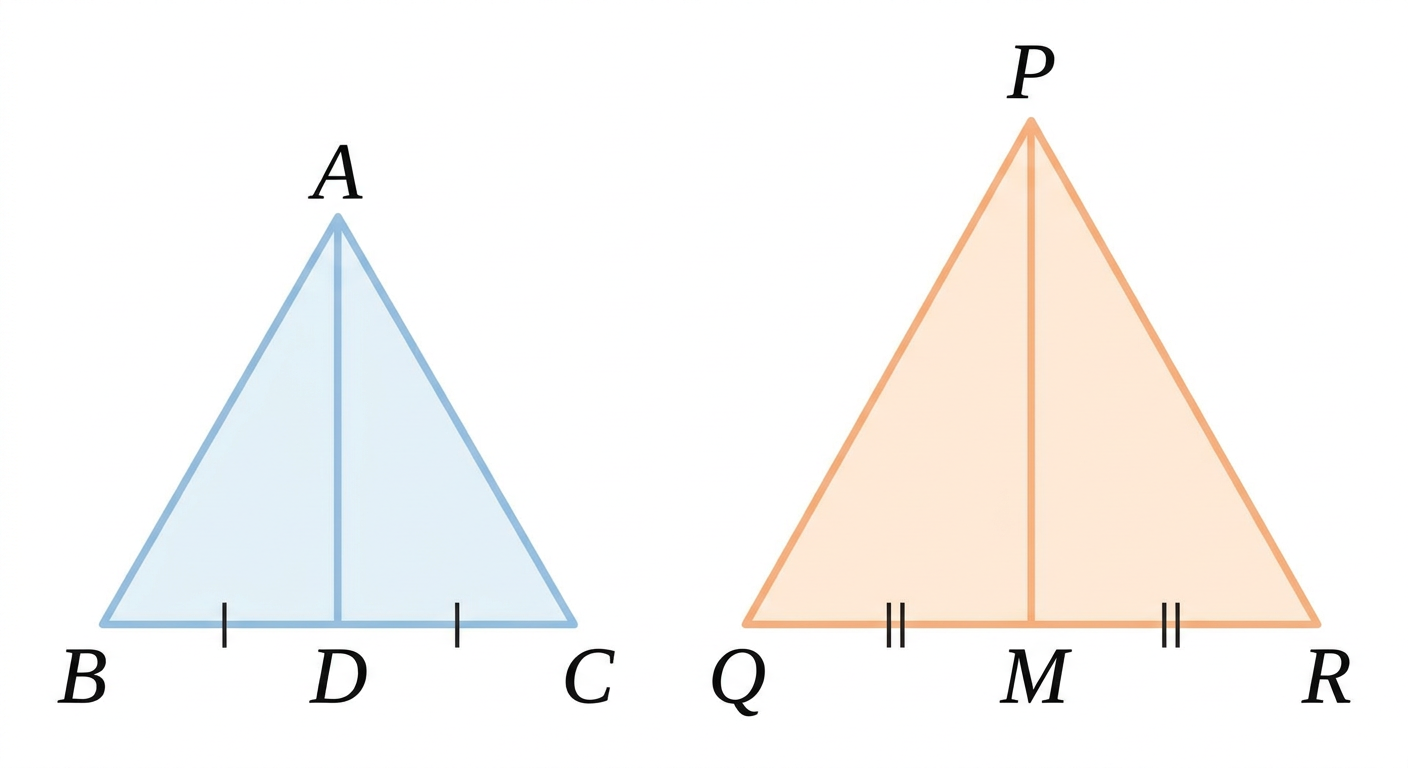

Diagram 1

Step 2 — Find a relationship for the bases

Let's use equations (1), (3), and (4). From equation (1), we know:

$\frac{\text{BC}}{\text{QR}} = \frac{\text{AB}}{\text{PQ}}$

Now, let's substitute $\text{BC} = 2 \times \text{BD}$ from (3). Let's also substitute $\text{QR} = 2 \times \text{QM}$ from (4).

$\frac{2 \times \text{BD}}{2 \times \text{QM}} = \frac{\text{AB}}{\text{PQ}}$

The 2s cancel out from the numerator and denominator.

$\frac{\text{BD}}{\text{QM}} = \frac{\text{AB}}{\text{PQ}} \quad \text{... (5)}$

Step 3 — Prove similarity of smaller triangles

Now, let's look at $\Delta$ ABD and $\Delta$ PQM. From equation (2), we know that:

$\angle \text{B} = \angle \text{Q}$

From equation (5), we just found that:

$\frac{\text{AB}}{\text{PQ}} = \frac{\text{BD}}{\text{QM}}$

We have one equal angle and the sides including that angle are proportional. So, by the SAS similarity criterion:

$\Delta \text{ABD} \sim \Delta \text{PQM}$

Step 4 — Conclude the proof

Since $\Delta$ ABD is similar to $\Delta$ PQM, their corresponding sides are proportional. Therefore, we can write:

$\frac{\text{AB}}{\text{PQ}} = \frac{\text{BD}}{\text{QM}} = \frac{\text{AD}}{\text{PM}}$

We have successfully shown the required relationship.

$\boxed{\frac{\text{AB}}{\text{PQ}} = \frac{\text{AD}}{\text{PM}}}$

Answer

The proof shows that the ratio of corresponding sides is equal to the ratio of corresponding medians.
