Triangles | Exercise 6.3

Question 2

In Fig. 6.35, $\Delta \text{ODC} \sim \Delta \text{OBA}$ , $\angle \text{BOC} = 125^\circ$ and $\angle \text{CDO} = 70^\circ$ . Find $\angle \text{DOC}$ , $\angle \text{DCO}$ and $\angle \text{OAB}$ .

Solution

Understand the Question

Line segment $\text{BD}$ is a straight line, so $\angle \text{DOC}$ and $\angle \text{BOC}$ form a linear pair with a sum of $180^\circ$ .
In $\Delta \text{ODC}$ , the sum of interior angles is $180^\circ$ , allowing us to find $\angle \text{DCO}$ .
Since $\Delta \text{ODC} \sim \Delta \text{OBA}$ , corresponding angles are equal, which gives $\angle \text{OAB} = \angle \text{DCO}$ .

Step 1 · Find $\angle \text{DOC}$

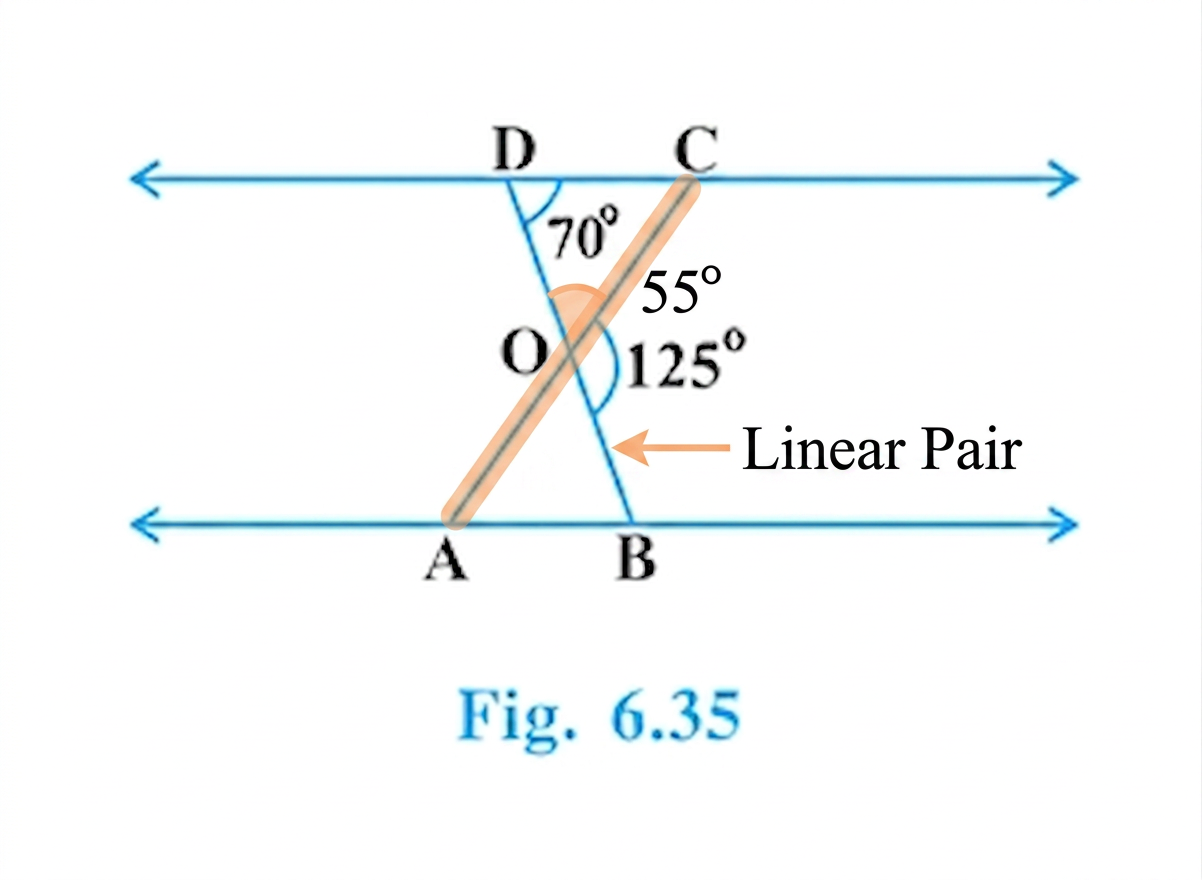

Since $\text{BD}$ is a straight line, $\angle \text{DOC}$ and $\angle \text{BOC}$ form a linear pair. Diagram 1

\begin{aligned} \angle \text{DOC} + \angle \text{BOC} &= 180^\circ \\ \angle \text{DOC} + 125^\circ &= 180^\circ \\ \angle \text{DOC} &= 180^\circ - 125^\circ \\ &= 55^\circ \end{aligned}

Step 2 · Find $\angle \text{DCO}$

In $\Delta \text{ODC}$ , using the angle sum property of a triangle

\begin{aligned} \angle \text{CDO} + \angle \text{DCO} + \angle \text{DOC} &= 180^\circ \\ 70^\circ + \angle \text{DCO} + 55^\circ &= 180^\circ \\ 125^\circ + \angle \text{DCO} &= 180^\circ \\ \angle \text{DCO} &= 180^\circ - 125^\circ \\ &= 55^\circ \end{aligned}

Step 3 · Find $\angle \text{OAB}$

Given $\Delta \text{ODC} \sim \Delta \text{OBA}$ .

Since corresponding angles of similar triangles are equal

$\angle \text{OAB} = \angle \text{DCO}$

$\angle \text{OAB} = 55^\circ$

Answer

$\angle \text{DOC} = 55^\circ, \quad \angle \text{DCO} = 55^\circ, \quad \angle \text{OAB} = 55^\circ$

Common Mistakes

Incorrect Angle Correspondence: When matching angles in similar triangles $\Delta \text{ODC} \sim \Delta \text{OBA}$ , vertex $\text{C}$ corresponds to $\text{A}$ (so $\angle \text{OAB} = \angle \text{OCD}$ ), not to vertex $\text{D}$ .
Linear Pair Confusion: Mistaking vertically opposite angles or non-adjacent angles instead of recognizing that $\angle \text{DOC}$ and $\angle \text{BOC}$ lie on the straight line $\text{BD}$ .
