Areas Related to Circles | Exercise 11.1

Question 8

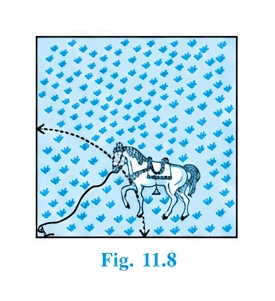

A horse is tied to a peg at one corner of a square shaped grass field of side $15\text{ m}$ by means of a $5\text{ m}$ long rope (see Fig. 11.8). Find

(i) the area of that part of the field in which the horse can graze.

(ii) the increase in the grazing area if the rope were $10\text{ m}$ long instead of $5\text{ m}$ . (Use $\pi = 3.14$ )

Solution

Understand the Question

The grass field is square, so each corner angle is $\theta = 90^\circ$ .
Tied to a corner peg, the horse can only graze within a sector of a circle (a quadrant) of radius equal to the rope length $r$ .
The area of a sector is given by: $\text{Area} = \dfrac{\theta}{360^\circ} \times \pi r^2 = \dfrac{90^\circ}{360^\circ} \times \pi r^2 = \dfrac{1}{4} \pi r^2$
For part (i), calculate the area with $r = 5\text{ m}$ .
For part (ii), calculate the new area with $r = 10\text{ m}$ and subtract the initial area to find the increase.

(i) the area of that part of the field in which the horse can graze.

Step 1 · Calculate Initial Grazing Area

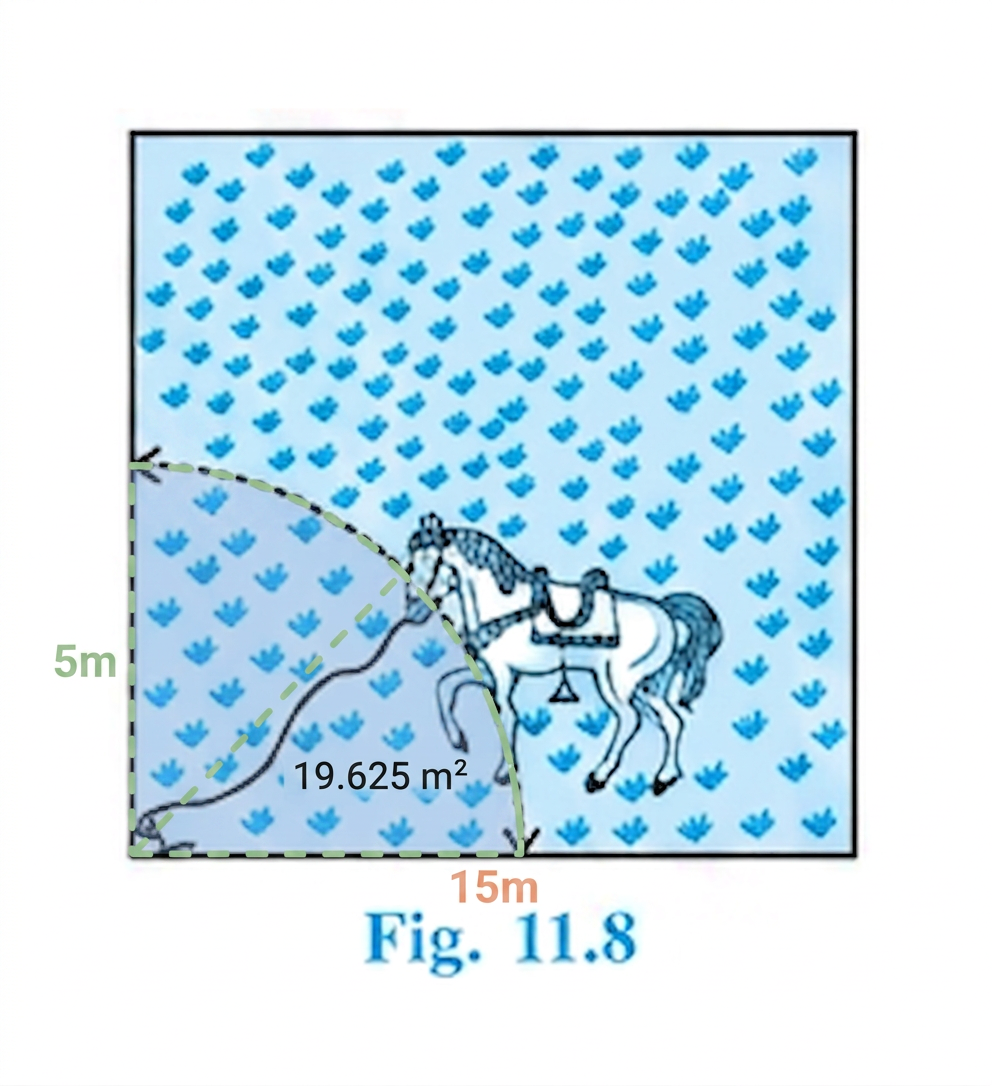

The grazing area forms a sector of a circle with radius $r = 5\text{ m}$ and central angle $\theta = 90^\circ$ . Diagram 1

\begin{aligned} \text{Area} &= \dfrac{\text{Central Angle}}{360^\circ} \times \pi r^2 \\[0.6em] &= \dfrac{90^\circ}{360^\circ} \times 3.14 \times (5\text{ m})^2 \\[0.6em] &= \dfrac{1}{4} \times 3.14 \times 25 \\[0.6em] &= 0.25 \times 78.5 \\[0.6em] &= 19.625\text{ m}^2 \end{aligned}

Answer

(i) $19.625\text{ m}^2$

(ii) the increase in the grazing area if the rope were $10\text{ m}$ long instead of $5\text{ m}$ . (Use $\pi = 3.14$ )

Step 1 · Calculate New Grazing Area

When the rope length is increased to $r = 10\text{ m}$ :

\begin{aligned} \text{New Area} &= \dfrac{90^\circ}{360^\circ} \times 3.14 \times (10\text{ m})^2 \\[0.6em] &= \dfrac{1}{4} \times 3.14 \times 100 \\[0.6em] &= 0.25 \times 314 \\[0.6em] &= 78.50\text{ m}^2 \end{aligned}

Step 2 · Find the Increase in Grazing Area

Subtract the initial grazing area from the new grazing area:

\begin{aligned} \text{Increase in Area} &= \text{New Area} - \text{Initial Area} \\[0.6em] &= 78.50\text{ m}^2 - 19.625\text{ m}^2 \\[0.6em] &= 58.875\text{ m}^2 \end{aligned}

Answer

(ii) $58.875\text{ m}^2$

Common Mistakes

Full Circle vs. Quadrant: Calculating the area of a full circle ( $\pi r^2$ ) instead of a quadrant ( $\dfrac{1}{4}\pi r^2$ ) formed at the $90^\circ$ corner of the square.
Using the Field's Side Length as Radius: Using the field side length ( $15\text{ m}$ ) instead of the rope length ( $5\text{ m}$ or $10\text{ m}$ ) as the radius $r$ .
Value of $\pi$ : Using $\pi = \dfrac{22}{7}$ instead of the specified $\pi = 3.14$ , which results in a slight calculation discrepancy.
Reporting Total Area Instead of Increase: Forgetting to subtract the initial area from the new area in part (ii).
