Areas Related to Circles | Exercise 11.1

Question 6

A chord of a circle of radius $15\text{ cm}$ subtends an angle of $60^\circ$ at the centre. Find the areas of the corresponding minor and major segments of the circle.

(Use $\pi = 3.14$ and $\sqrt{3} = 1.73$ )

Solution

We will find the areas of the minor and major segments.

Step 1 — Calculate Area of Sector

We are given the radius $\mathbf{r = 15\text{ cm}}$ . The angle subtended at the centre is $\mathbf{\theta = 60^\circ}$ . Let's find the area of the sector. The formula is $(\theta/360^\circ) \times \pi r^2$ .

$\text{Area of sector} = \frac{60^\circ}{360^\circ} \times \pi \times (\mathbf{15\text{ cm}})^2$

$= \frac{1}{6} \times \mathbf{3.14} \times \mathbf{225}$

$= \frac{\mathbf{706.5}}{6}$

$\boxed{117.75 \text{ cm}^2}$

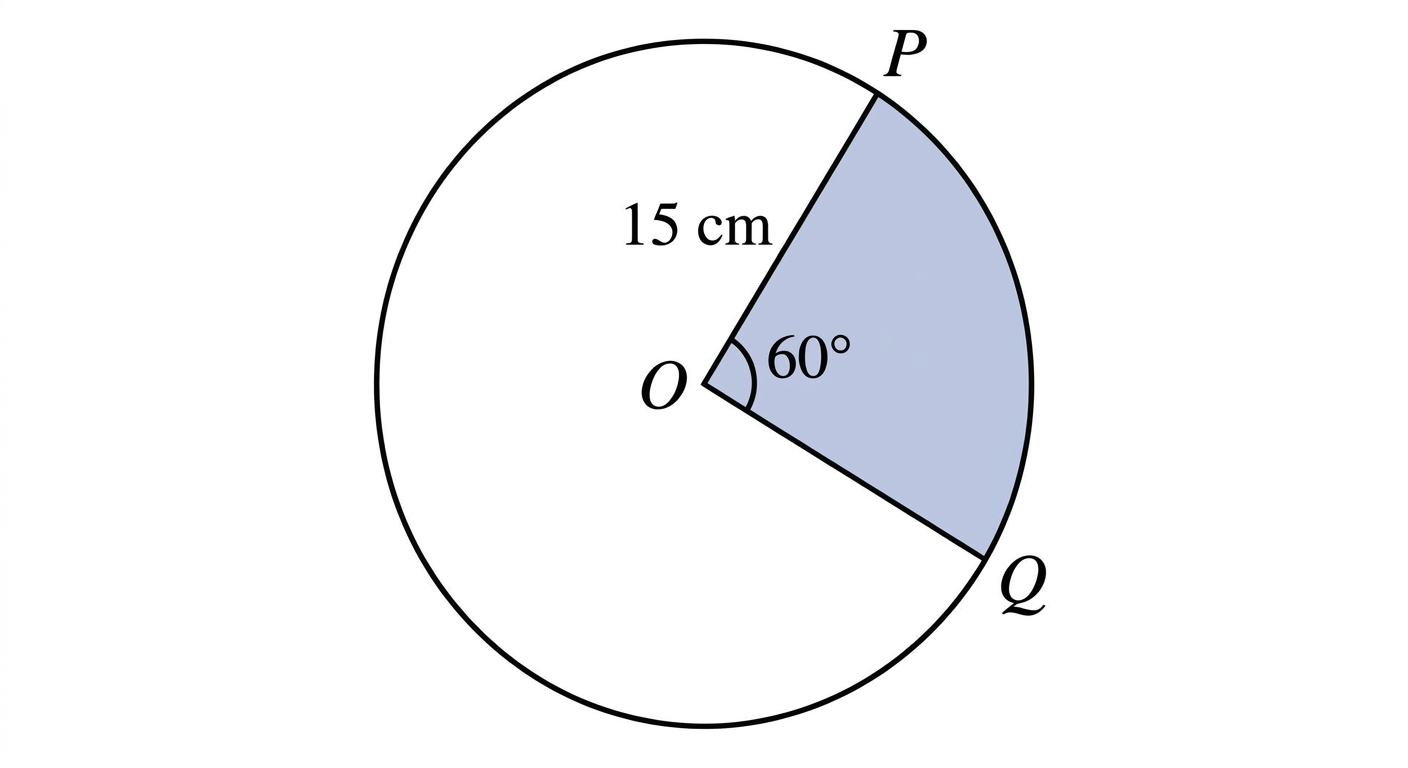

Diagram 1

Step 2 — Calculate Area of Minor Segment

Now, we find the area of the triangle $\triangle \text{OPQ}$ . Since $\text{OP} = \text{OQ} = \mathbf{15\text{ cm}}$ (radii) and $\angle \text{POQ} = \mathbf{60^\circ}$ . Therefore, $\triangle \text{OPQ}$ is an equilateral triangle. Its area is $(\sqrt{3}/4) \times \text{side}^2$ . Here, the side is $\mathbf{15\text{ cm}}$ .

$\text{Area of } \triangle \text{OPQ} = \frac{\sqrt{3}}{4} \times (\mathbf{15\text{ cm}})^2$

$= \frac{\mathbf{1.73}}{4} \times \mathbf{225}$

$= \frac{\mathbf{389.25}}{4}$

$= 97.3125 \text{ cm}^2$ Now, we can find the area of the minor segment. It is the area of the sector minus the area of the triangle.

$\text{Area of minor segment} = \text{Area of sector} - \text{Area of } \triangle \text{OPQ}$

$= \mathbf{117.75\text{ cm}^2} - \mathbf{97.3125\text{ cm}^2}$

$\boxed{20.4375 \text{ cm}^2}$

Step 3 — Calculate Area of Major Segment

First, let's find the total area of the circle. The formula for the area of a circle is $\pi r^2$ . Here, $r$ is $\mathbf{15\text{ cm}}$ .

$\text{Area of circle} = \pi \times (\mathbf{15\text{ cm}})^2$

$= \mathbf{3.14} \times \mathbf{225}$

$\boxed{706.5 \text{ cm}^2}$

Now, we can find the area of the major segment. It is the area of the circle minus the area of the minor segment.

$\text{Area of major segment} = \text{Area of circle} - \text{Area of minor segment}$

$= \mathbf{706.5\text{ cm}^2} - \mathbf{20.4375\text{ cm}^2}$

$\boxed{686.0625 \text{ cm}^2}$

Answer

(i) The area of the minor segment is $\mathbf{20.4375\text{ cm}^2}$ . (ii) The area of the major segment is $\mathbf{686.0625\text{ cm}^2}$ .
