Areas Related to Circles | Exercise 11.1

Question 12

To warn ships for underwater rocks, a lighthouse spreads a red coloured light over a sector of angle $80^\circ$ to a distance of $16.5\text{ km}$ . Find the area of the sea over which the ships are warned. (Use $\pi = 3.14$ )

Solution

Understand the Question

The light from the lighthouse sweeps out a sector of a circle.
Given:
- Central angle of the sector $(\theta) = 80^\circ$
- Radius $(r) = 16.5\text{ km}$
- Value of $\pi = 3.14$
The area of the sea warned corresponds to the area of this sector, given by the formula: $\text{Area of Sector} = \dfrac{\theta}{360^\circ} \times \pi r^2$

Step 1 · Calculate the Area of the Sector

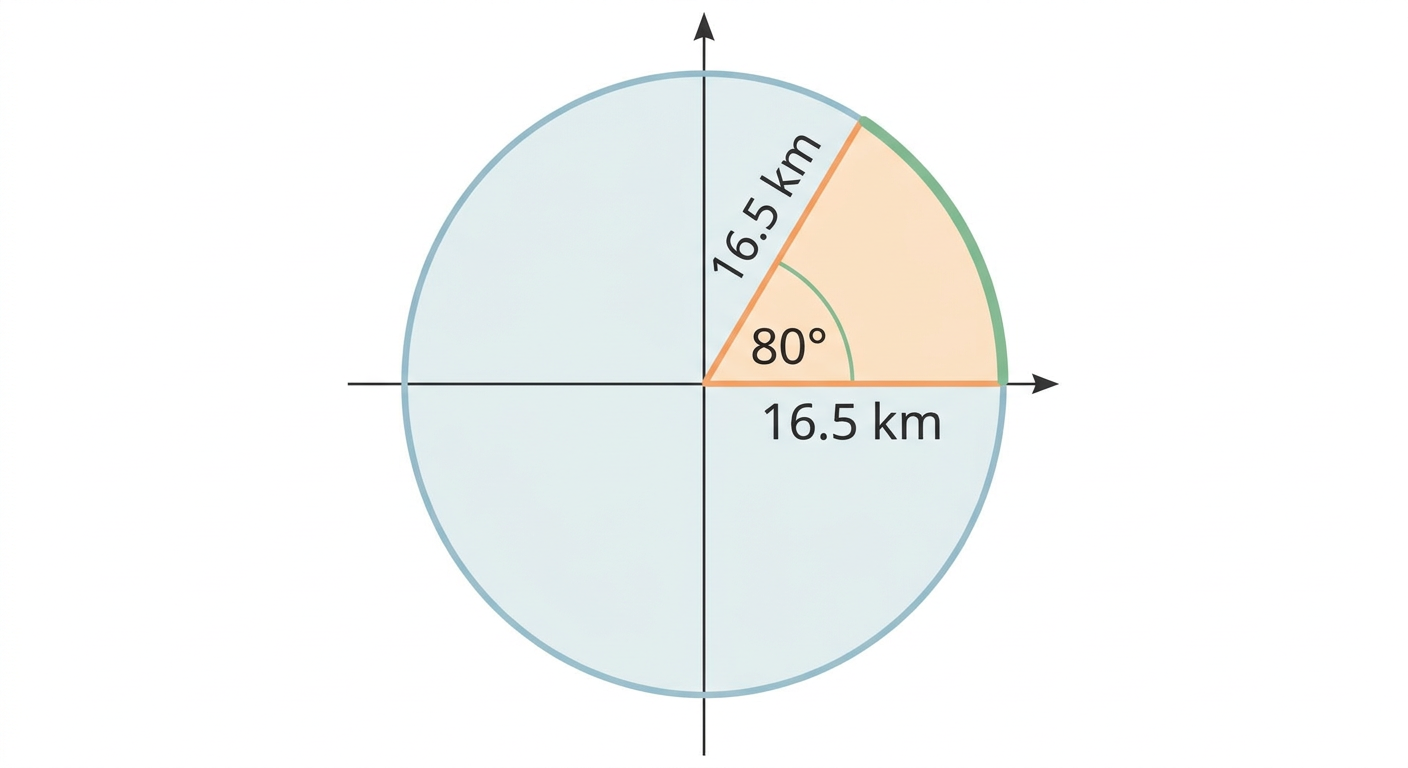

Given radius $r = 16.5\text{ km}$ and sector angle $\theta = 80^\circ$ . Diagram 1

$\text{Area of sector} = \dfrac{\theta}{360^\circ} \times \pi r^2$

Substituting $\theta = 80^\circ$ , $r = 16.5\text{ km}$ , and $\pi = 3.14$

\begin{aligned} \text{Area} &= \dfrac{80^\circ}{360^\circ} \times 3.14 \times (16.5)^2 \\[0.6em] &= \dfrac{2}{9} \times 3.14 \times 16.5 \times 16.5 \\[0.6em] &= \dfrac{2}{9} \times 3.14 \times 272.25 \\[0.6em] &= \dfrac{1709.73}{9} \\[0.6em] &= 189.97\text{ km}^2 \end{aligned}

Answer

$189.97\text{ km}^2$

Common Mistakes

Incorrect Value of $\pi$ : Using $\pi = \dfrac{22}{7}$ instead of the explicitly specified $\pi = 3.14$ , which leads to slight decimal inaccuracies.
Unit Errors: Forgetting to write the square unit $(\text{km}^2)$ for area, or writing $\text{km}$ instead.
Formula Confusion: Confusing the area of a sector $\left(\dfrac{\theta}{360^\circ} \times \pi r^2\right)$ with arc length $\left(\dfrac{\theta}{360^\circ} \times 2\pi r\right)$ .
