What patterns do you observe among these angles?

Question

Homi · Accepted Answer

Understand the Question

When two straight lines intersect, they form four angles around the point of intersection.
Two fundamental angle relationships exist:
- Vertically Opposite Angles: Angles opposite each other across the vertex are equal.
- Linear Pairs (Adjacent Angles): Angles that lie next to each other on a straight line add up to $180^\circ$ .

Step 1 · Identify Vertically Opposite Angles

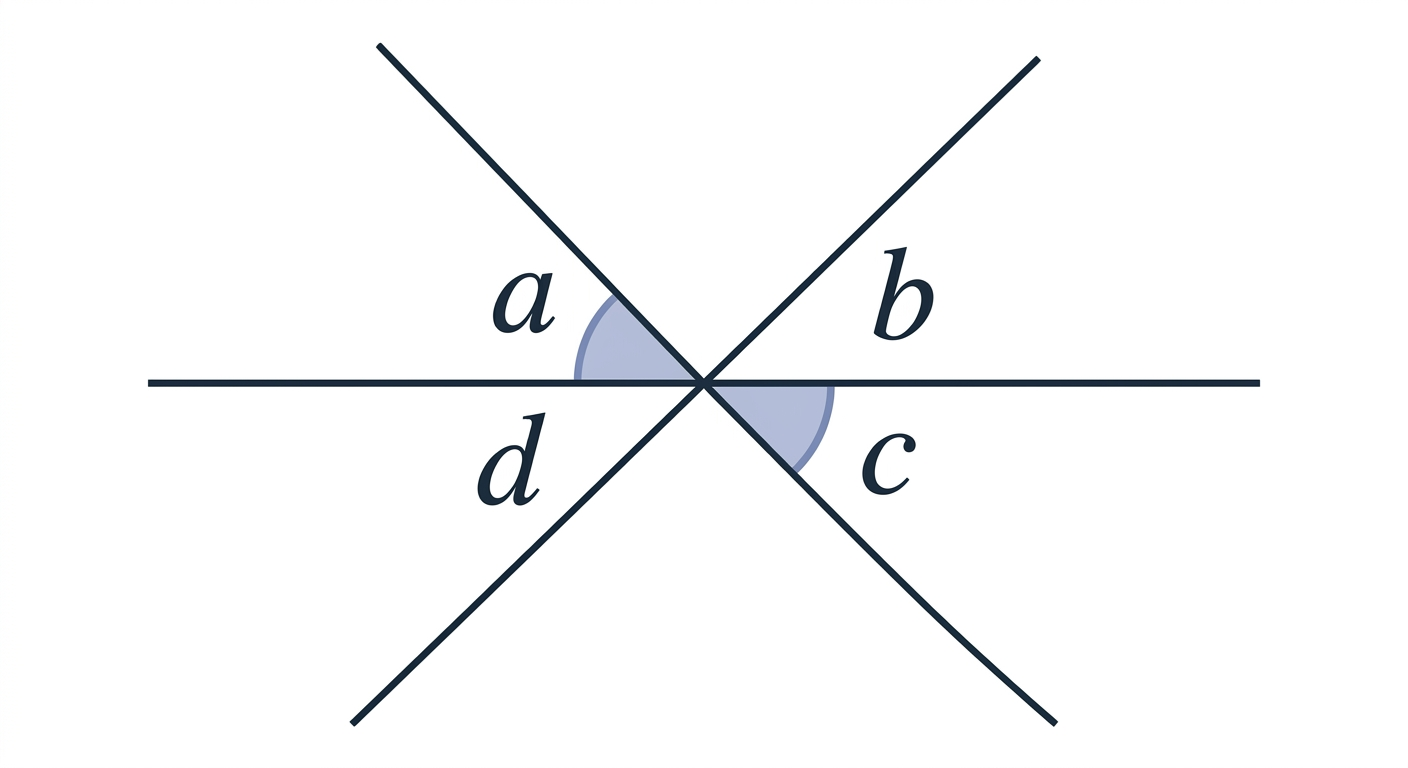

Two intersecting lines form four angles labeled $\angle a, \angle b, \angle c,$ and $\angle d$ around the point of intersection. Diagram 1

Angles directly opposite each other are vertically opposite angles and are equal in measure: $\angle a = \angle c$ $\angle b = \angle d$

Step 2 · Identify Linear Pairs of Angles

Adjacent angles that form a straight line are supplementary (linear pair) and add up to $180^\circ$ : $\angle a + \angle b = 180^\circ$ $\angle b + \angle c = 180^\circ$ $\angle c + \angle d = 180^\circ$ $\angle d + \angle a = 180^\circ$

Answer

Vertically opposite angles are equal: $\angle a = \angle c$ and $\angle b = \angle d$ .

Linear pairs add up to $180^\circ$ : $\angle a + \angle b = \angle b + \angle c = \angle c + \angle d = \angle d + \angle a = 180^\circ$ .

Common Mistakes

Confusing Adjacent and Opposite Angles: Assuming adjacent angles are equal, when in fact opposite angles are equal ( $\angle a = \angle c$ ) and adjacent angles add up to $180^\circ$ .
Linear Pair Sum: Incorrectly recalling the sum of a linear pair as $90^\circ$ or $360^\circ$ instead of $180^\circ$ .
