Question 1

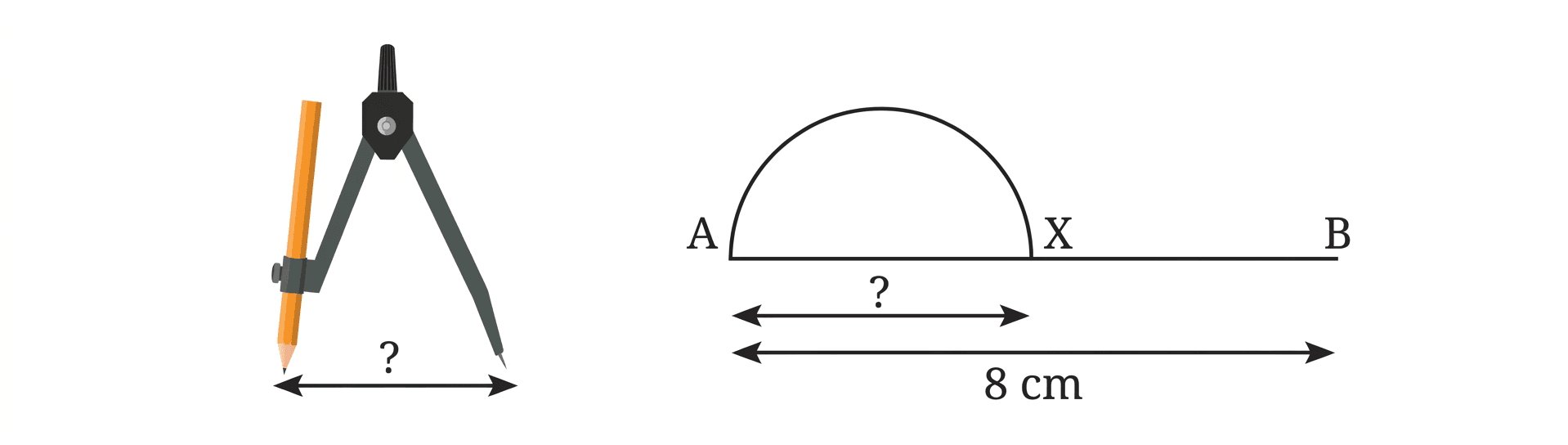

What radius should be taken in the compass to get this half circle? What should be the length of ?
- The total length of the line segment is .
- The segment forms the diameter of the half-circle, which spans half the length of .
- The compass opening required to draw the half-circle corresponds to its radius, which is half of the diameter .
Step 1 · Find the Length of
From the given figure, line segment is half of the total length .
Step 2 · Find the Radius for the Compass

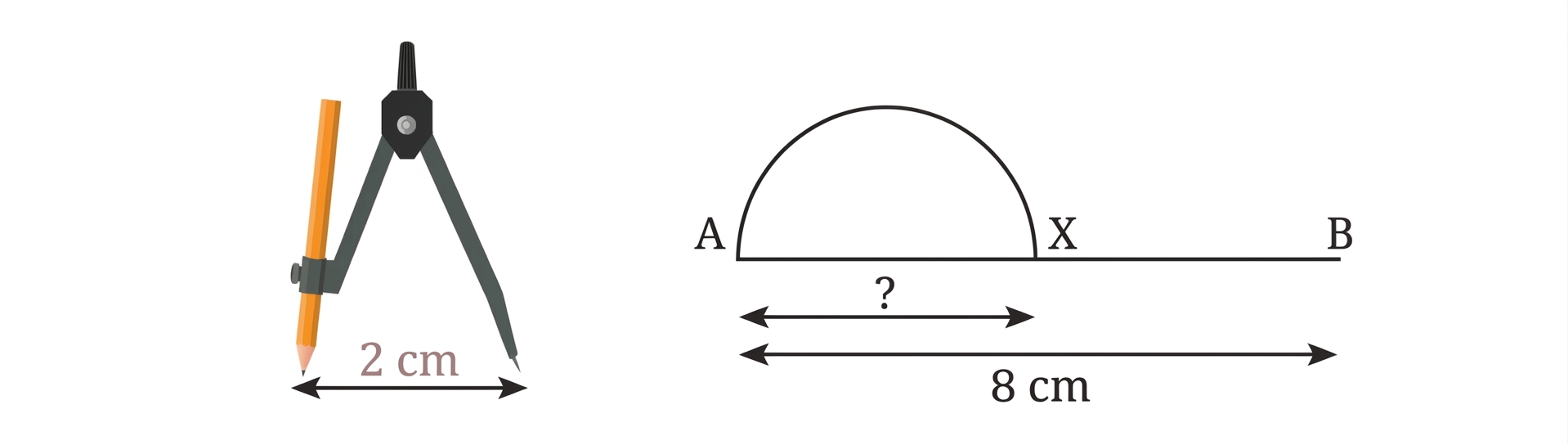

The line segment is the diameter of the half-circle. The compass radius is half of this diameter:
Radius of compass , Length of
- Confusing Diameter with Radius: Setting the compass to the full diameter instead of the radius , which results in a semicircle twice as large.
- Incorrect Baseline: Taking the radius directly as half of the entire segment () without realizing that is the diameter .
More questions in FIO
What radius should be taken in the compass to get this half circle? What should be the length of ?
Take a central line of a different length and try to draw the wave on it.
Try to recreate the figure where the waves are smaller than a half circle (as appearing in the neck of the figure, 'A Person'). The challenge here is to get both the waves to be identical. This may be tricky!
Draw the rectangle and four squares configuration (shown in Fig. 8.3) on a dot paper.
What did you do to recreate this figure so that the four squares are placed symmetrically around the rectangle? Discuss with your classmates.
Identify if there are any squares in this collection. Use measurements if needed.
Think: Is it possible to reason out if the sides are equal or not, and if the angles are right or not without using any measuring instruments in the above figure? Can we do this by only looking at the position of corners in the dot grid?
Draw at least 3 rotated squares and rectangles on a dot grid. Draw them such that their corners are on the dots. Verify if the squares and rectangles that you have drawn satisfy their respective properties.
