Question 20

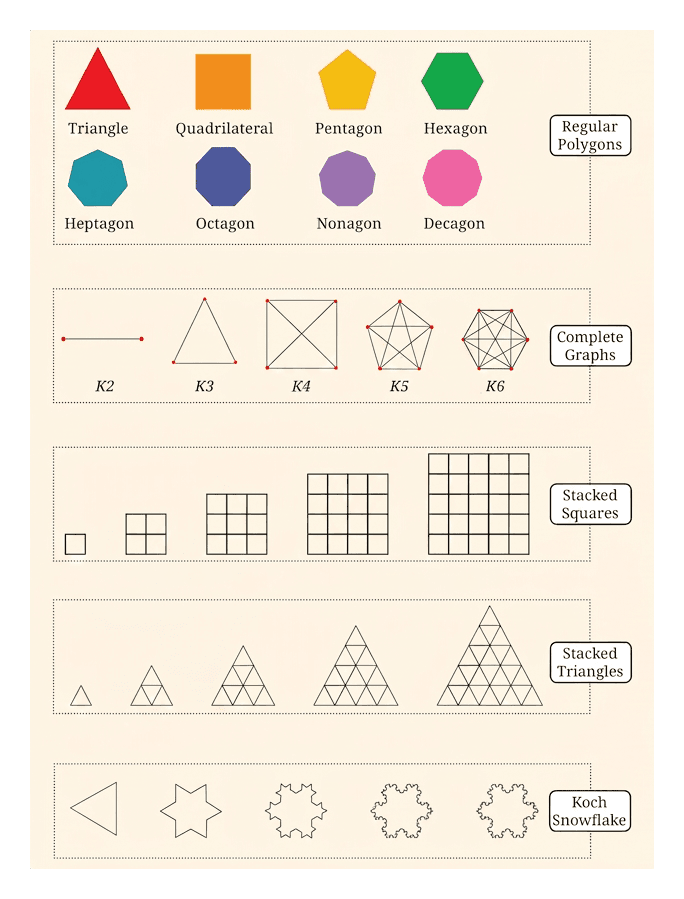

Try and redraw each sequence in Table 3 in your notebook. Can you draw the next shape in each sequence? Why or why not? After each sequence, describe in your own words what is the rule or pattern for forming the shapes in the sequence.
We can draw the next shape in each sequence by following its special rule.

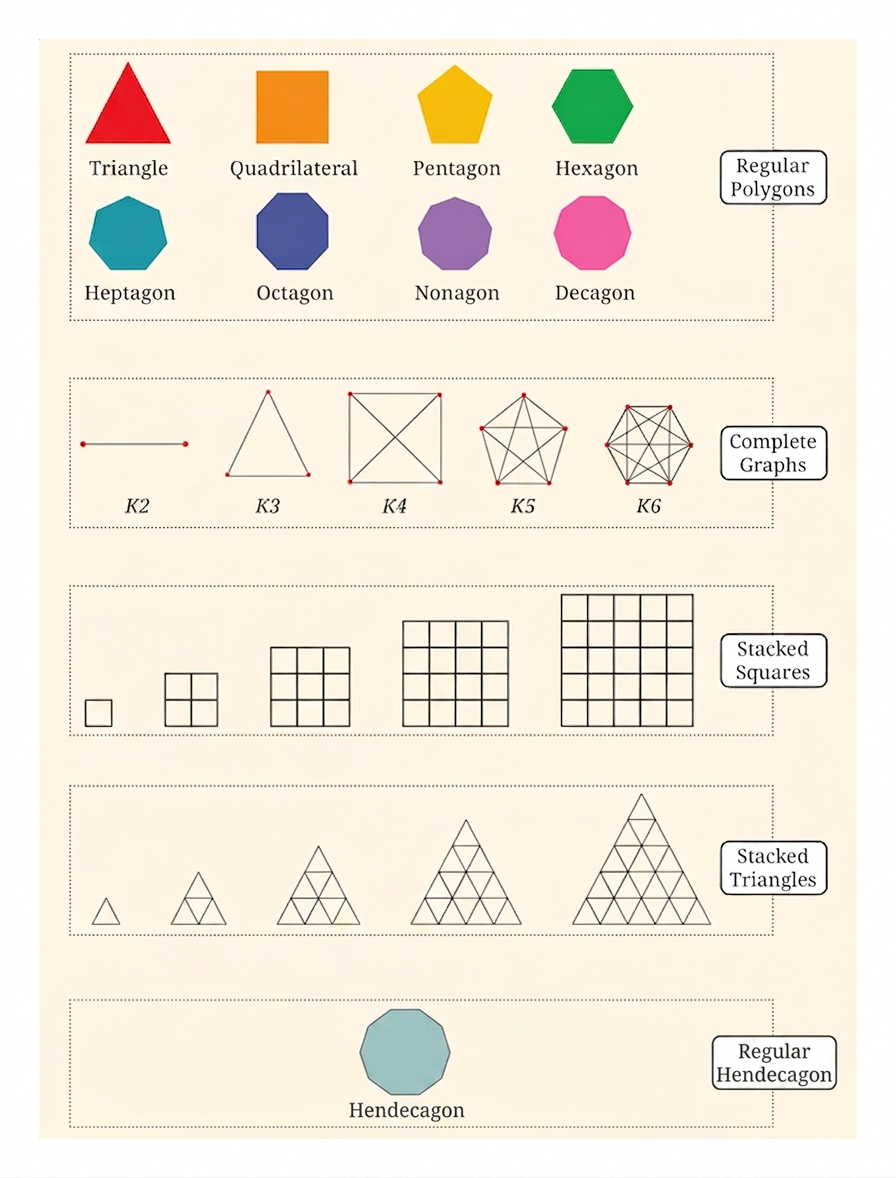

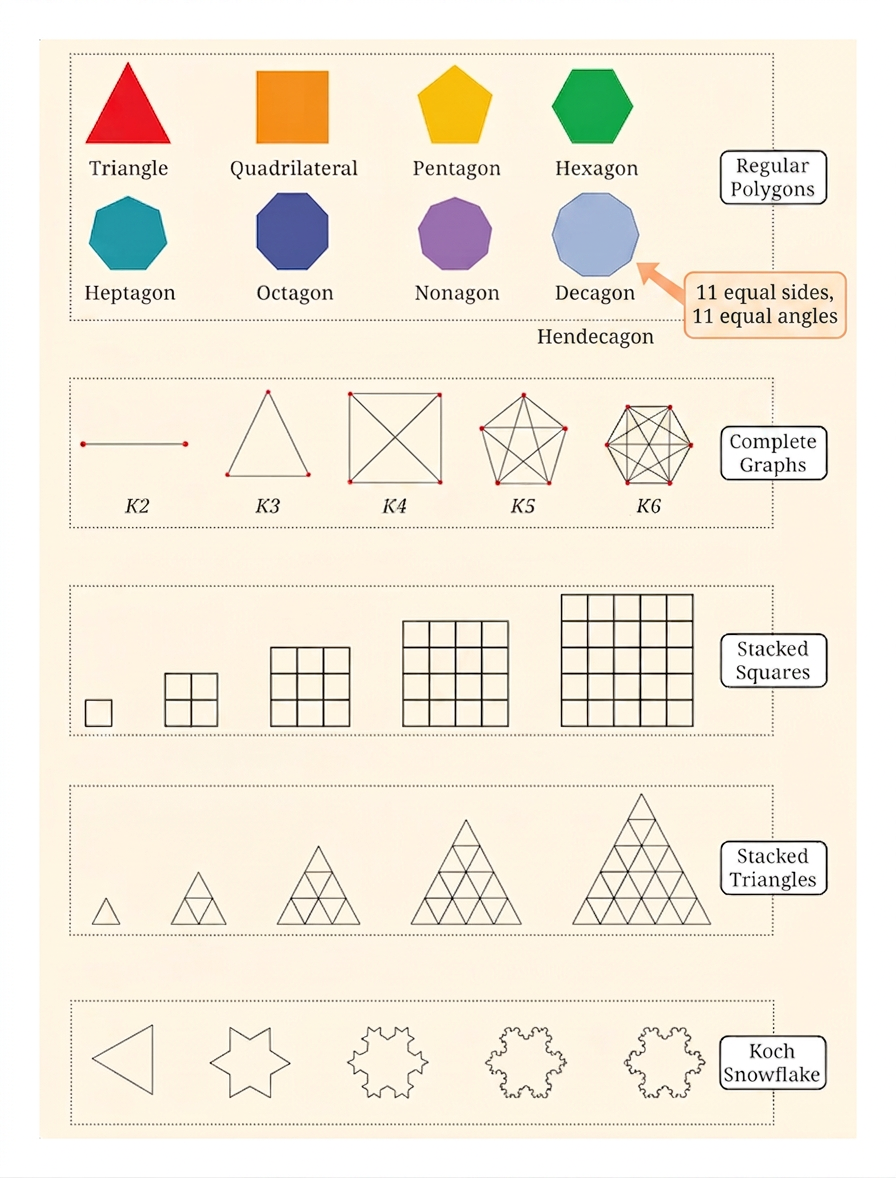

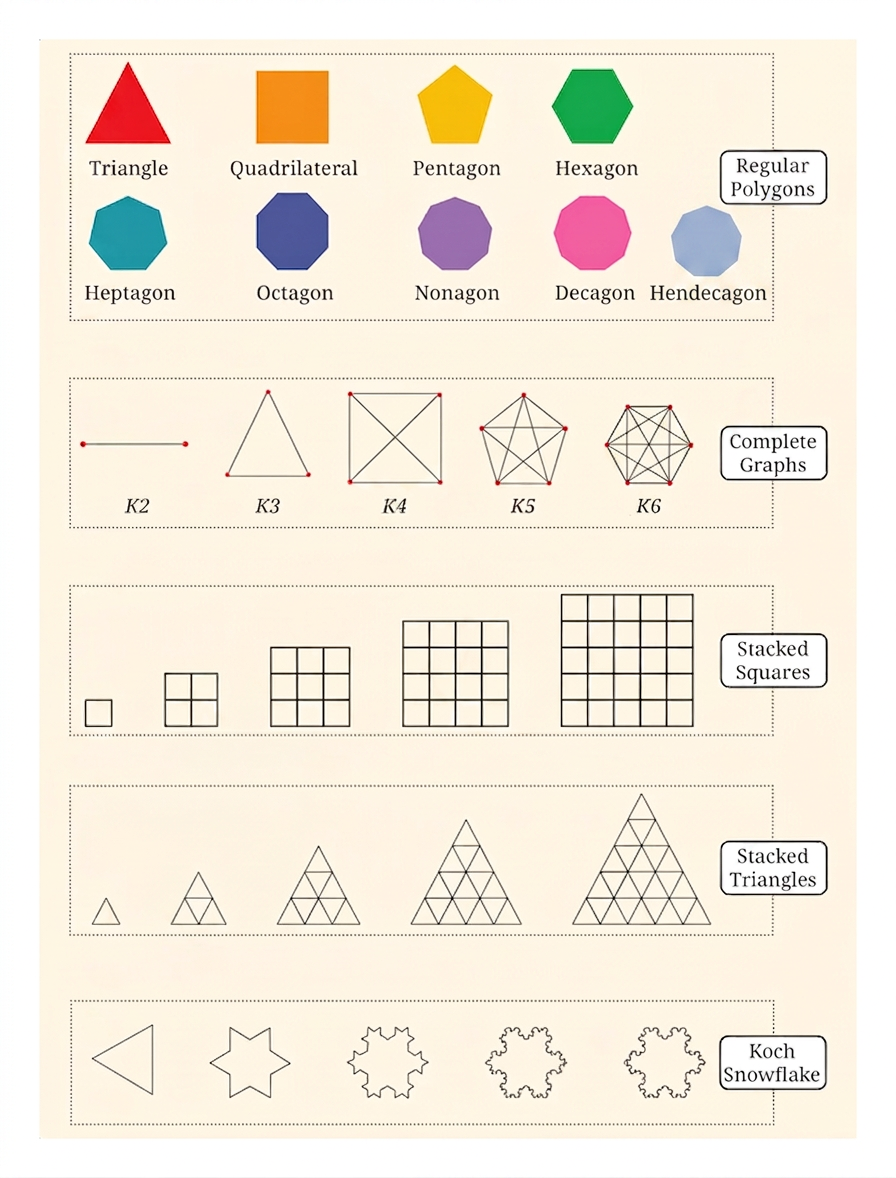

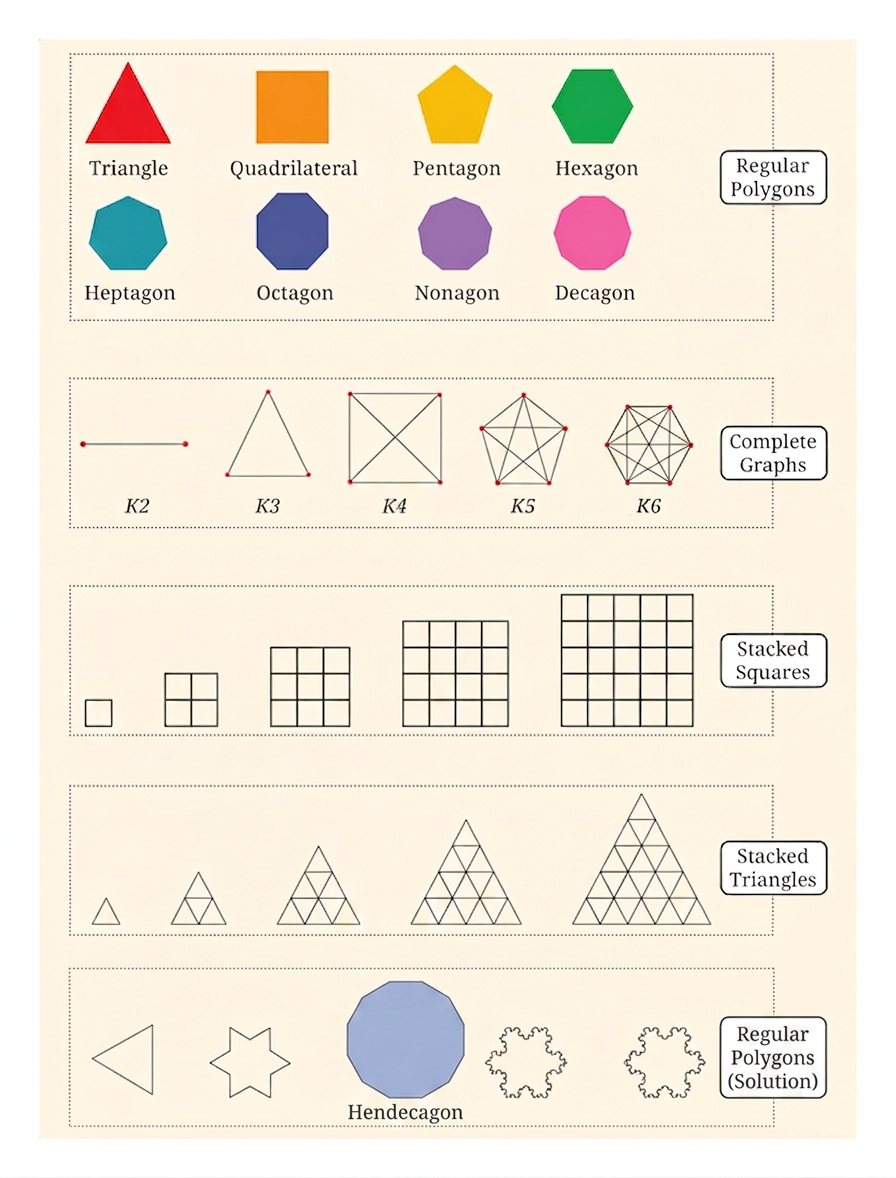

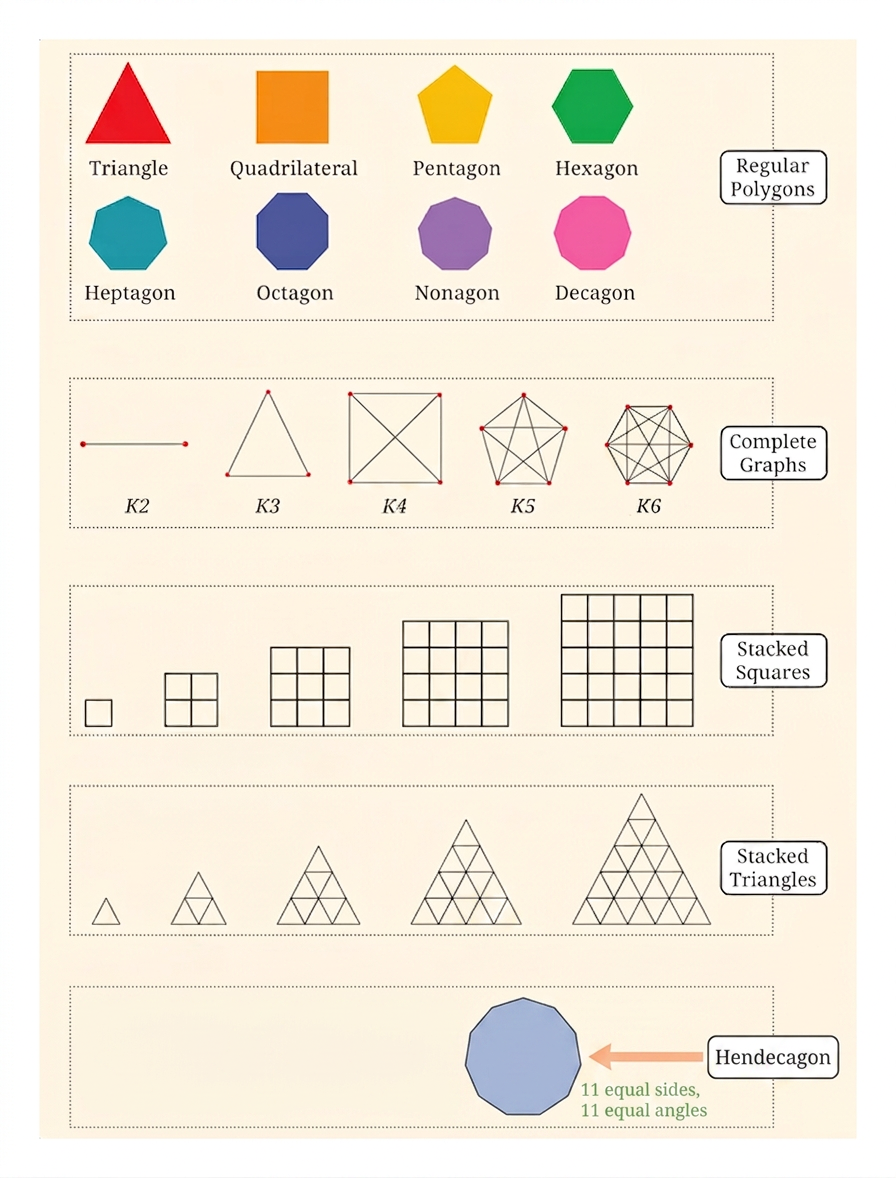

Step 1 — Regular Polygons
Yes, we can draw the next shape. Look at the first row of shapes. The first shape is a Triangle. It has 3 sides. The next is a Quadrilateral. It has 4 sides. Then a Pentagon with 5 sides. This pattern continues. Each shape has one more side than the one before it. The last shape shown is a Decagon. It has 10 sides. So, the next shape will have 11 sides. We call a regular polygon with 11 sides a Hendecagon. We can draw a regular shape with 11 equal sides.
The rule for Regular Polygons is: Each new shape has one more side than the shape before it.
Step 2 — Complete Graphs
Yes, we can draw the next shape. Look at the second row of shapes. The first graph, K2, has 2 points. They are connected by 1 line. K3 has 3 points. Each point is connected to every other point. K4 has 4 points. Each point is connected to every other point. The last graph shown is K6. It has 6 points. All points are connected to each other. To get the next graph, K7, we add one new point. Then we draw lines from this new point to all the 6 old points. We can easily draw this.
The rule for Complete Graphs is: Add one new point, then connect this new point to all the points that are already there.
Step 3 — Stacked Squares
Yes, we can draw the next shape. Look at the third row of shapes. The first shape is a single small square. It is a 1 by 1 grid. The next is a 2 by 2 grid of small squares. Then a 3 by 3 grid. This pattern continues. Each shape is a bigger square grid. The last shape shown is a 5 by 5 grid of small squares. So, the next shape will be a 6 by 6 grid of small squares. We can draw a large square and divide it into 6 rows and 6 columns.
The rule for Stacked Squares is: Make the square grid one unit bigger on each side.
Step 4 — Stacked Triangles
Yes, we can draw the next shape. Look at the fourth row of shapes. The first shape is a triangle made of 1 small triangle. It has 1 row. The next has 3 small triangles. It has 2 rows. The bottom row has 2 triangles. Then it has 6 small triangles. It has 3 rows. The bottom row has 3 triangles. This pattern continues. Each shape adds a new row of triangles at the bottom. The last shape shown has 5 rows of triangles. The bottom row has 5 triangles. So, the next shape will have 6 rows of triangles. The new bottom row will have 6 small triangles. We can draw this by adding a new row of 6 triangles below the last shape.
The rule for Stacked Triangles is: Add a new row of triangles at the bottom, with one more triangle than the previous bottom row.
Step 5 — Koch Snowflake
Yes, we can draw the next shape. Look at the last row of shapes. The first shape is a simple triangle. The next shapes become more bumpy. This is a special fractal shape. For each straight line part, we remove the middle third. Then we add two new lines to make a small triangle sticking out. This happens again and again. The last shape shown has many small bumps. To draw the next shape, we repeat this rule for every tiny straight line part on the last shape. This would be very hard to draw perfectly by hand. But the rule tells us exactly how to make it.
The rule for Koch Snowflake is: For every straight line segment, remove the middle third and add two new segments to form an outward-pointing triangle.
Answer
Yes, the next shapes can be drawn by following the geometric rules. Regular Polygons: Each new shape has one more side than the shape before it. Complete Graphs: Add one new point, then connect this new point to all the points that are already there. Stacked Squares: Make the square grid one unit bigger on each side. Stacked Triangles: Add a new row of triangles at the bottom, with one more triangle than the previous bottom row. Koch Snowflake: For every straight line segment, remove the middle third and add two new segments to form an outward-pointing triangle.
