Question 22

Count the number of lines in each shape in the sequence of Complete Graphs. Which number sequence do you get? Can you explain why?

Solution

Understand the Question

A complete graph with $n$ points (vertices) connects every point to every other point with a straight line (edge).
Counting the lines in complete graphs with $2, 3, 4, 5,$ and $6$ points gives a sequence of numbers called triangular numbers.
Since each of the $n$ points connects to the remaining $(n - 1)$ points and every line connects $2$ points (meaning each line is counted twice), the total number of lines is given by the formula: $\text{Number of lines} = \dfrac{n \times (n - 1)}{2}$

Step 1 · Count lines in each complete graph

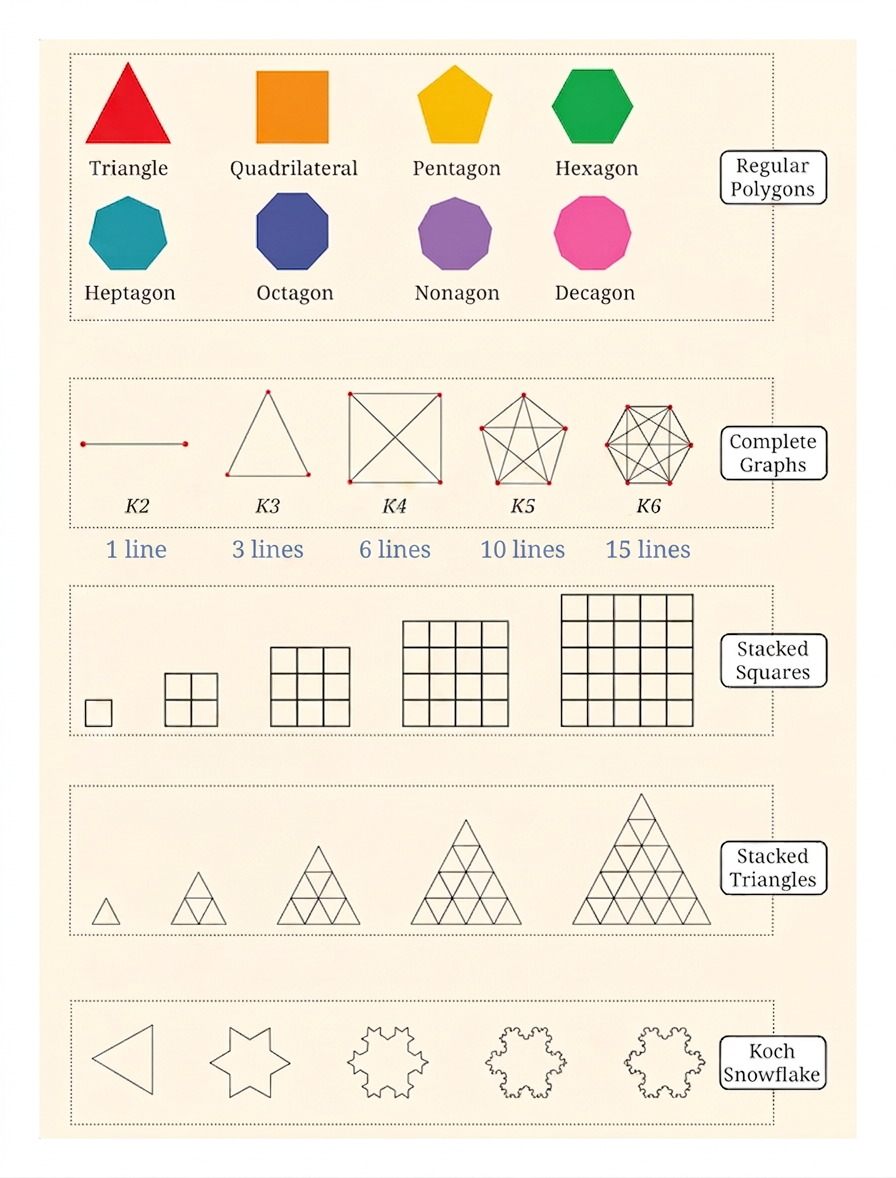

Diagram 1

Counting the lines in each complete graph:

For $K_2$ ( $2$ points): $1$ line
For $K_3$ ( $3$ points): $3$ lines
For $K_4$ ( $4$ points): $6$ lines
For $K_5$ ( $5$ points): $10$ lines
For $K_6$ ( $6$ points): $15$ lines

Step 2 · Identify the number sequence

The number of lines counted gives the sequence: $1, 3, 6, 10, 15, \dots$

This is the sequence of triangular numbers, so named because these quantities of dots can be arranged in the shape of equilateral triangles:

$1$ (a single dot)
$3 = 1 + 2$ (base of $2$ dots)
$6 = 1 + 2 + 3$ (base of $3$ dots)
$10 = 1 + 2 + 3 + 4$ (base of $4$ dots)
$15 = 1 + 2 + 3 + 4 + 5$ (base of $5$ dots)

Step 3 · Explain the formula and verify for each graph

In a complete graph with $n$ points, each point connects to every other point ( $n - 1$ points).

Multiplying gives $n \times (n - 1)$ connections. Since each line connects two endpoints, every line is counted twice (e.g., from point A to B and from B to A). Therefore, we divide by $2$ :

$\text{Number of lines} = \dfrac{n \times (n - 1)}{2}$

Verifying for each complete graph:

For $K_2$ ( $n = 2$ ):

\begin{aligned} \text{Number of lines} &= \dfrac{2 \times (2 - 1)}{2} \\[0.6em] &= \dfrac{2 \times 1}{2} \\[0.6em] &= \dfrac{2}{2} = 1 \end{aligned}

For $K_3$ ( $n = 3$ ):

\begin{aligned} \text{Number of lines} &= \dfrac{3 \times (3 - 1)}{2} \\[0.6em] &= \dfrac{3 \times 2}{2} \\[0.6em] &= \dfrac{6}{2} = 3 \end{aligned}

For $K_4$ ( $n = 4$ ):

\begin{aligned} \text{Number of lines} &= \dfrac{4 \times (4 - 1)}{2} \\[0.6em] &= \dfrac{4 \times 3}{2} \\[0.6em] &= \dfrac{12}{2} = 6 \end{aligned}

For $K_5$ ( $n = 5$ ):

\begin{aligned} \text{Number of lines} &= \dfrac{5 \times (5 - 1)}{2} \\[0.6em] &= \dfrac{5 \times 4}{2} \\[0.6em] &= \dfrac{20}{2} = 10 \end{aligned}

For $K_6$ ( $n = 6$ ):

\begin{aligned} \text{Number of lines} &= \dfrac{6 \times (6 - 1)}{2} \\[0.6em] &= \dfrac{6 \times 5}{2} \\[0.6em] &= \dfrac{30}{2} = 15 \end{aligned}

Answer

Number of lines: $1, 3, 6, 10, 15$

Sequence name: Triangular numbers
Reason: In a complete graph with $n$ points, each point connects to $(n - 1)$ other points. Dividing by $2$ to avoid counting each line twice gives the formula $\dfrac{n(n - 1)}{2}$ .

Common Mistakes

Double-Counting Error: Forgetting to divide by $2$ , which gives $n(n - 1)$ lines instead of $\dfrac{n(n - 1)}{2}$ .
Confusing Points and Lines: Stating $n$ instead of the number of line segments between the points.
