Question 11

Mind the Mistake, Mend the Mistake!

A student used a protractor to measure the angles as shown below. In each figure, identify the incorrect usage(s) of the protractor and discuss how the reading could have been made and think how it can be corrected.

  • ∠U=35∘\angle U = 35^\circ
  • ∠V=80∘\angle V = 80^\circ
  • ∠W=70∘\angle W = 70^\circ
  • ∠X=150∘\angle X = 150^\circ
  • ∠Y=120∘\angle Y = 120^\circ
  • ∠Z=85∘\angle Z = 85^\circ
Question diagram 1
Check your answer with HomiSolve it yourself, then let Homi check your steps and spot mistakes.
Solution
Understand the Question

To use a protractor correctly to measure an angle:

  • Place the centre point (origin) of the protractor directly on the vertex of the angle.
  • Align the baseline (0∘0^\circ line) with one arm of the angle.
  • Use the scale (inner or outer) where the baseline starts at 0∘0^\circ.
  • Read the measurement where the second arm crosses that same scale.
  • Visually verify whether the angle is acute (<90∘< 90^\circ) or obtuse (>90∘> 90^\circ) as a sanity check.

(i) ∠U=35∘\angle U = 35^\circ

Step 1 · Check Alignment and Scale for ∠U\angle U

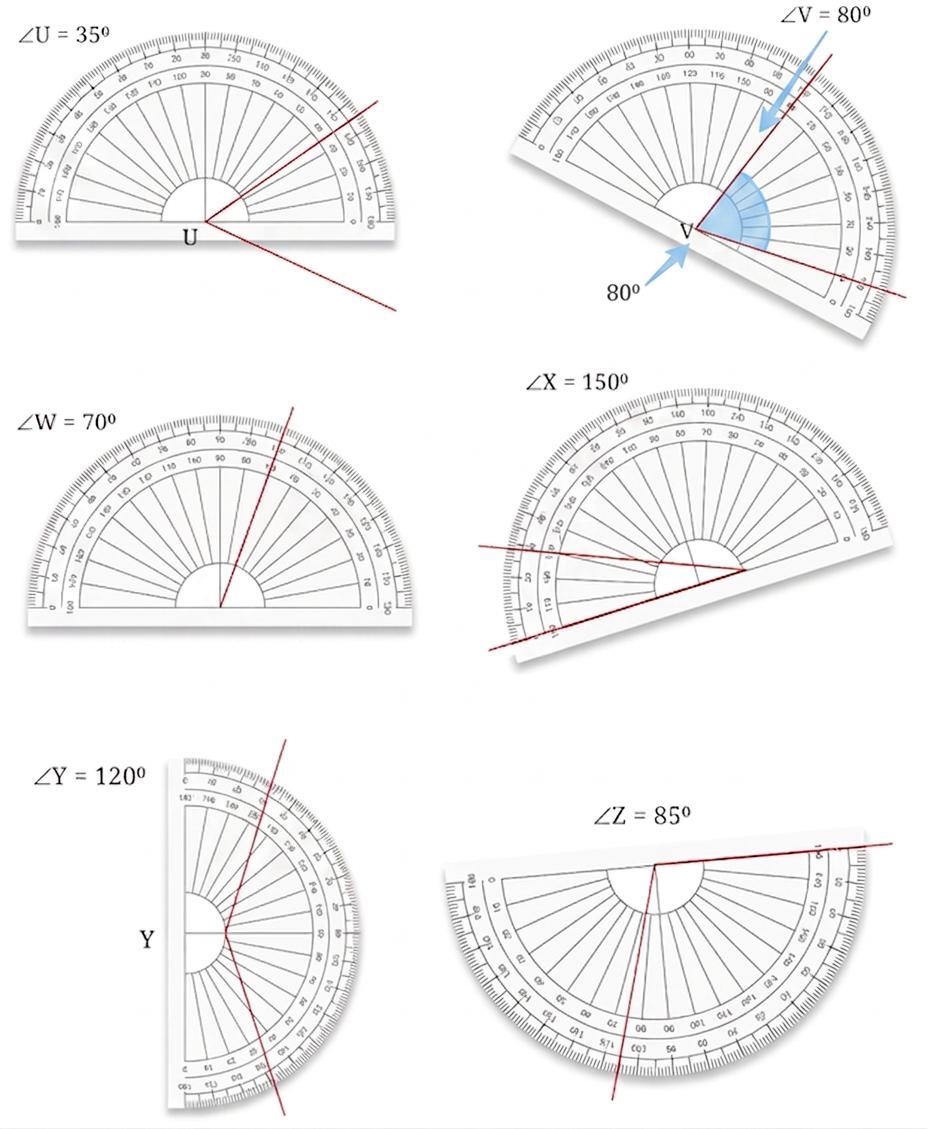

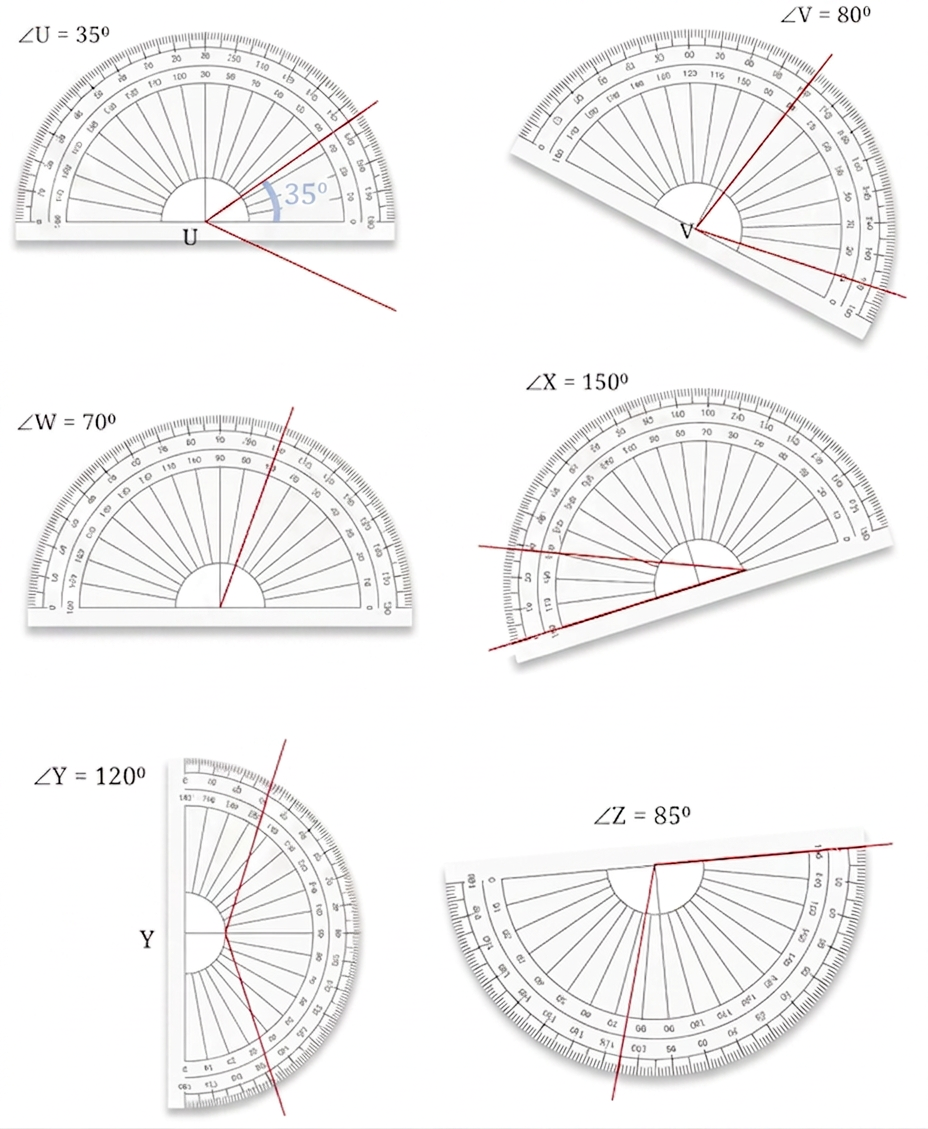

Diagram 1

  • Vertex: Centred at UU.
  • Baseline: One arm aligns with 0∘0^\circ on the inner scale.
  • Reading: The second arm points directly to 35∘35^\circ on the inner scale.
  • Observation: The angle is acute, matching the reading of 35∘35^\circ.
Answer

(i) No incorrect usage. The protractor is used correctly; ∠U=35∘\angle U = 35^\circ.

(ii) ∠V=80∘\angle V = 80^\circ

Step 1 · Check Alignment and Scale for ∠V\angle V

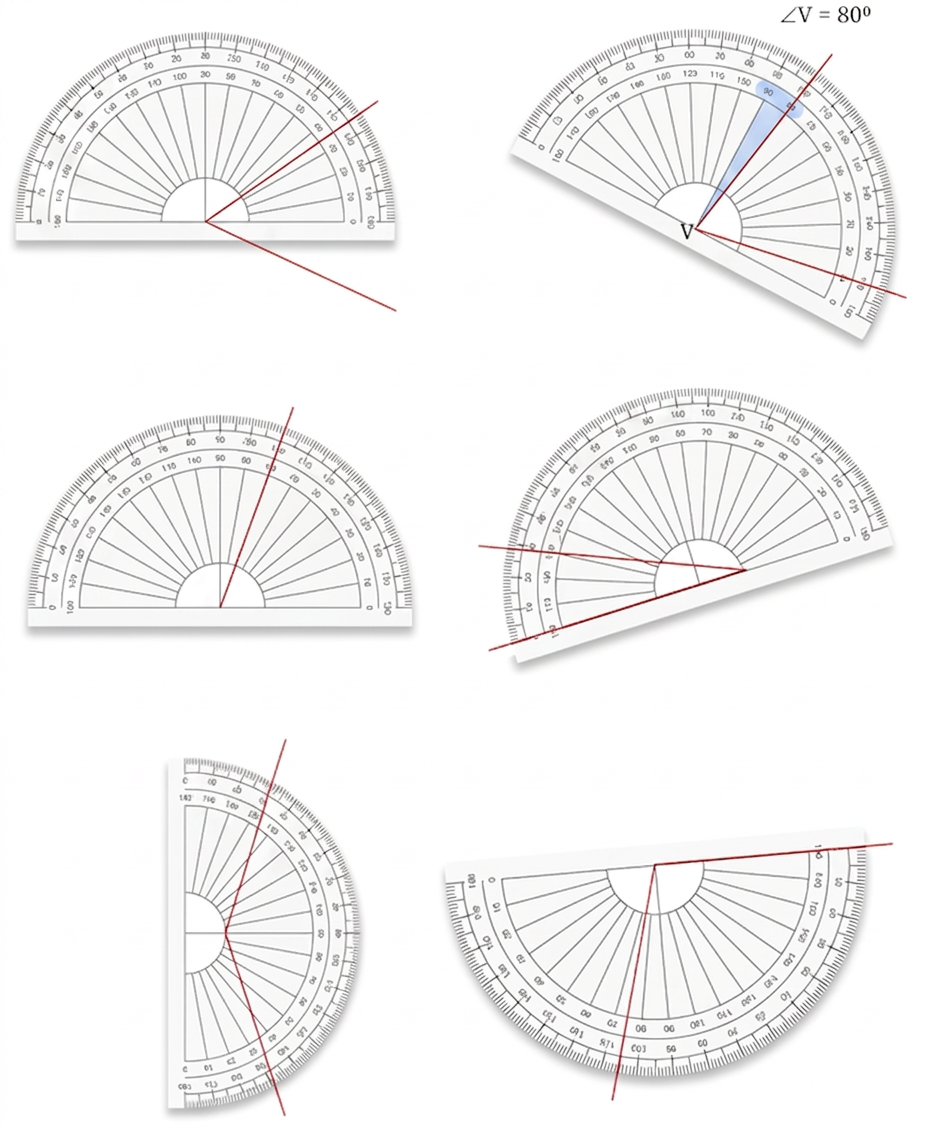

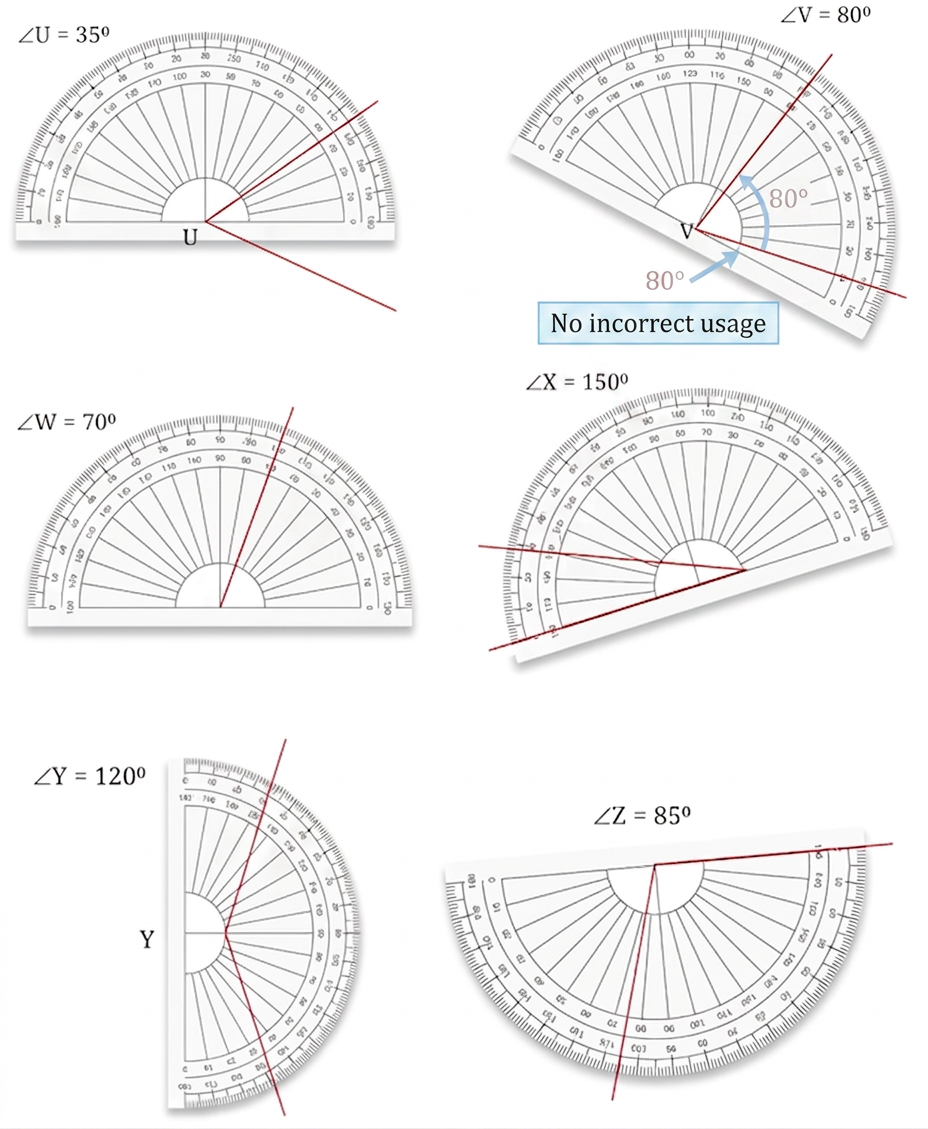

Diagram 2

  • Vertex: Centred at VV.
  • Baseline: One arm aligns with 0∘0^\circ on the inner scale.
  • Reading: The second arm points to 80∘80^\circ on the inner scale.
  • Observation: The angle is acute, matching the reading of 80∘80^\circ.
Answer

(ii) No incorrect usage. The protractor is used correctly; ∠V=80∘\angle V = 80^\circ.

(iii) ∠W=70∘\angle W = 70^\circ

Step 1 · Check Alignment and Scale for ∠W\angle W

Diagram 3

  • Vertex: Centred at WW.
  • Baseline: One arm aligns with 0∘0^\circ on the outer scale (left side).
  • Reading: The second arm points to 70∘70^\circ on the outer scale.
  • Observation: The angle is acute, matching the reading of 70∘70^\circ.
Answer

(iii) No incorrect usage. The protractor is used correctly; ∠W=70∘\angle W = 70^\circ.

(iv) ∠X=150∘\angle X = 150^\circ

Step 1 · Identify Mistake and Correction for ∠X\angle X

Diagram 4

  • Incorrect usage: The student read 150∘150^\circ from the inner scale instead of the outer scale.
  • Correction: Since the baseline arm aligns with 0∘0^\circ on the outer scale, follow the outer scale. Correct measure of ∠X=30∘\text{Correct measure of } \angle X = 30^\circ
Answer

(iv) Incorrect usage: Wrong scale read. The correct angle is 30∘30^\circ.

(v) ∠Y=120∘\angle Y = 120^\circ

Step 1 · Identify Mistake and Correction for ∠Y\angle Y

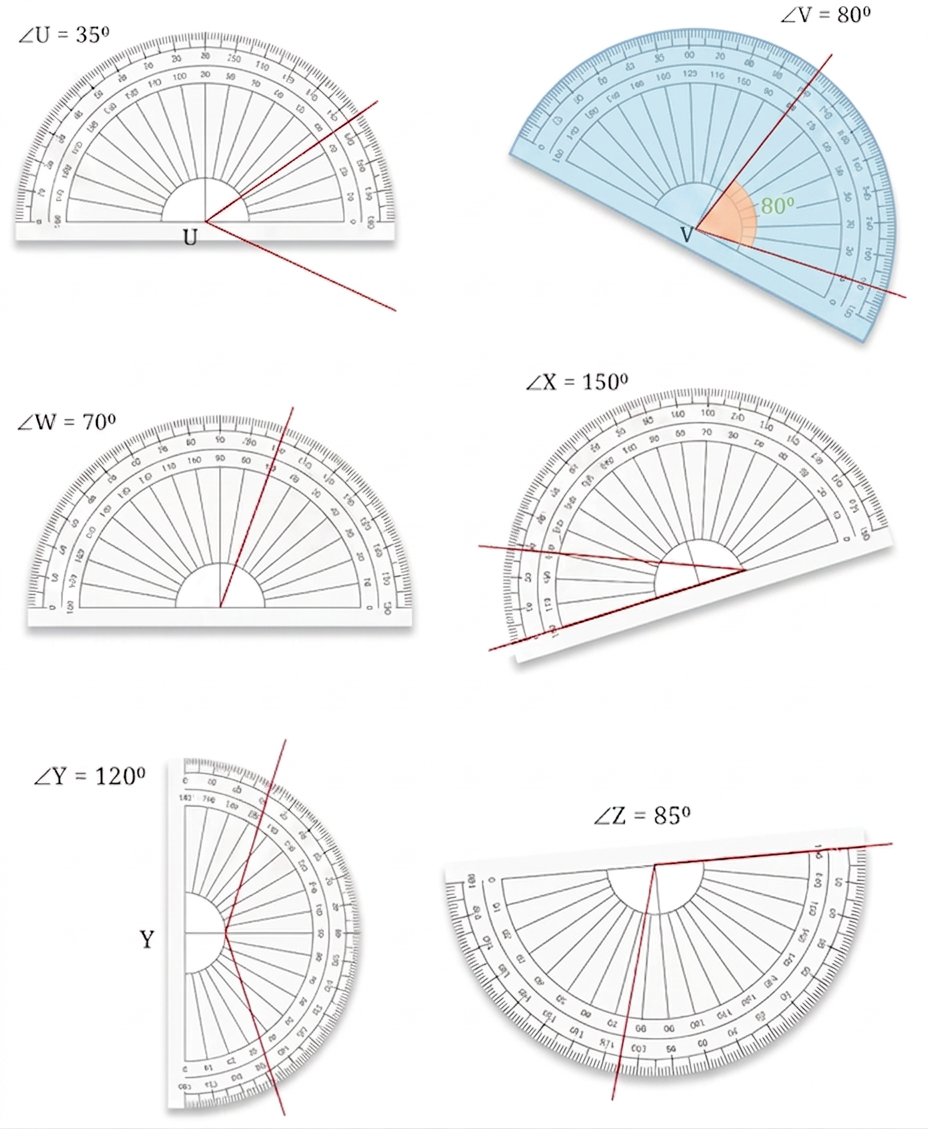

Diagram 5

  • Incorrect usage: The student read 120∘120^\circ from the outer scale instead of the inner scale.
  • Correction: Since the baseline arm aligns with 0∘0^\circ on the inner scale, follow the inner scale. Correct measure of ∠Y=60∘\text{Correct measure of } \angle Y = 60^\circ
Answer

(v) Incorrect usage: Wrong scale read. The correct angle is 60∘60^\circ.

(vi) ∠Z=85∘\angle Z = 85^\circ

Step 1 · Identify Mistake and Correction for ∠Z\angle Z

Diagram 6

  • Incorrect usage: The protractor is misaligned; the base arm is placed along the 90∘90^\circ line instead of the 0∘0^\circ line.
  • Angle calculation from figure: Angle=145∘−90∘=55∘\text{Angle} = 145^\circ - 90^\circ = 55^\circ
  • Correction: Align one arm of the angle with the 0∘0^\circ baseline and read the resulting position on that scale.
Answer

(vi) Incorrect usage: Protractor misaligned. The correct angle is 55∘55^\circ.

Common Mistakes
  • Reading the Wrong Scale: Reading the inner scale instead of the outer scale (or vice versa) gives the supplementary angle (180∘−θ180^\circ - \theta). Always start from the scale that has 0∘0^\circ on the initial arm.
  • Misaligning the Baseline: Placing the edge or the 90∘90^\circ mark on an arm instead of aligning the 0∘0^\circ baseline with one arm.
  • Not Checking Angle Type: Forgetting to check whether the angle is visibly acute (<90∘< 90^\circ) or obtuse (>90∘> 90^\circ) to catch scale errors.
