Surface Areas and Volumes | Exercise 12.2

Question 8

A spherical glass vessel has a cylindrical neck 8 cm long, 2 cm in diameter; the diameter of the spherical part is 8.5 cm. By measuring the amount of water it holds, a child finds its volume to be $345\text{ cm}^3$ . Check whether she is correct, taking the above as the inside measurements, and $\pi = 3.14$ .

Solution

Understand the Question

The glass vessel is composed of two geometric shapes: a sphere (the bottom body) and a cylinder (the top neck).
Total volume of the vessel is given by: $\text{Total Volume} = V_{\text{sphere}} + V_{\text{cylinder}}$
We calculate the volume using $\pi = 3.14$ with the respective radius and height, then compare the result with the child's measurement of $345\text{ cm}^3$ .

Step 1 · Find Dimensions and Volume of Spherical Part

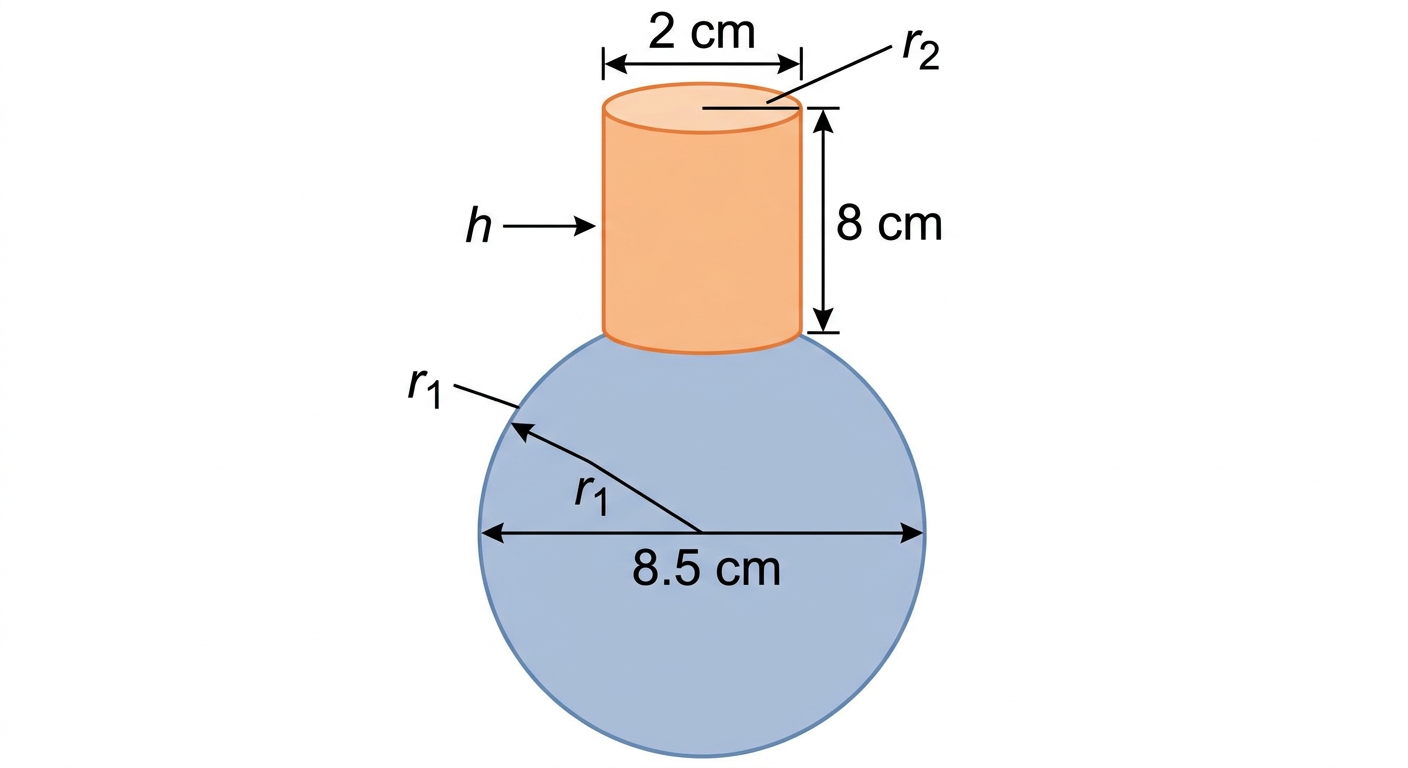

Diagram 1

For the spherical part: $\text{Radius } (r_1) = \dfrac{8.5}{2} = 4.25\text{ cm}$

\begin{aligned} V_{\text{sphere}} &= \dfrac{4}{3} \pi r_1^3 \\[0.6em] &= \dfrac{4}{3} \times 3.14 \times (4.25)^3 \\[0.6em] &= \dfrac{4}{3} \times 3.14 \times 76.765625 \\[0.6em] &\approx 321.39\text{ cm}^3 \end{aligned}

Step 2 · Find Dimensions and Volume of Cylindrical Neck

For the cylindrical neck: $\text{Radius } (r_2) = \dfrac{2}{2} = 1\text{ cm}, \quad \text{Height } (h) = 8\text{ cm}$

\begin{aligned} V_{\text{cylinder}} &= \pi r_2^2 h \\[0.6em] &= 3.14 \times (1)^2 \times 8 \\[0.6em] &= 25.12\text{ cm}^3 \end{aligned}

Step 3 · Calculate Total Volume and Compare

\begin{aligned} V_{\text{total}} &= V_{\text{sphere}} + V_{\text{cylinder}} \\[0.6em] &= 321.39 + 25.12 \\[0.6em] &\approx 346.51\text{ cm}^3 \end{aligned}

Since the actual volume is approximately $346.51\text{ cm}^3$ , the child's measurement of $345\text{ cm}^3$ is incorrect.

Answer

No, she is not correct. The actual volume of the vessel is approximately $346.51\text{ cm}^3$ .

Common Mistakes

Diameter vs. Radius: Substituting diameter values ( $8.5\text{ cm}$ or $2\text{ cm}$ ) directly into the volume formula instead of halving them to get the radius.
Incorrect $\pi$ Value: Using $\pi = \dfrac{22}{7}$ instead of the given value $\pi = 3.14$ .
Cubing Fractions / Decimals: Arithmetic errors when calculating $(4.25)^3 = 76.765625$ .
