Surface Areas and Volumes | Exercise 12.2

Question 2

  1. Rachel, an engineering student, was asked to make a model shaped like a cylinder with two cones attached at its two ends by using a thin aluminium sheet. The diameter of the model is 3 cm3\text{ cm} and its length is 12 cm12\text{ cm}. If each cone has a height of 2 cm2\text{ cm}, find the volume of air contained in the model that Rachel made. (Assume the outer and inner dimensions of the model to be nearly the same.)
Check your answer with HomiSolve it yourself, then let Homi check your steps and spot mistakes.
Solution
Understand the Question
  • The model consists of a central cylinder with two identical cones attached at both ends.
  • The volume of air contained in the model is the total volume of these parts: Total Volume=Volume of Cylinder+2×Volume of a Cone\text{Total Volume} = \text{Volume of Cylinder} + 2 \times \text{Volume of a Cone}
  • The radius of both the cylinder and the cones is r=diameter2=32 cmr = \dfrac{\text{diameter}}{2} = \dfrac{3}{2}\text{ cm}.
  • The height of the cylinder (h2h_2) is obtained by subtracting the heights of the two cones from the total length of the model.

Step 1 · Find the Dimensions of the Model

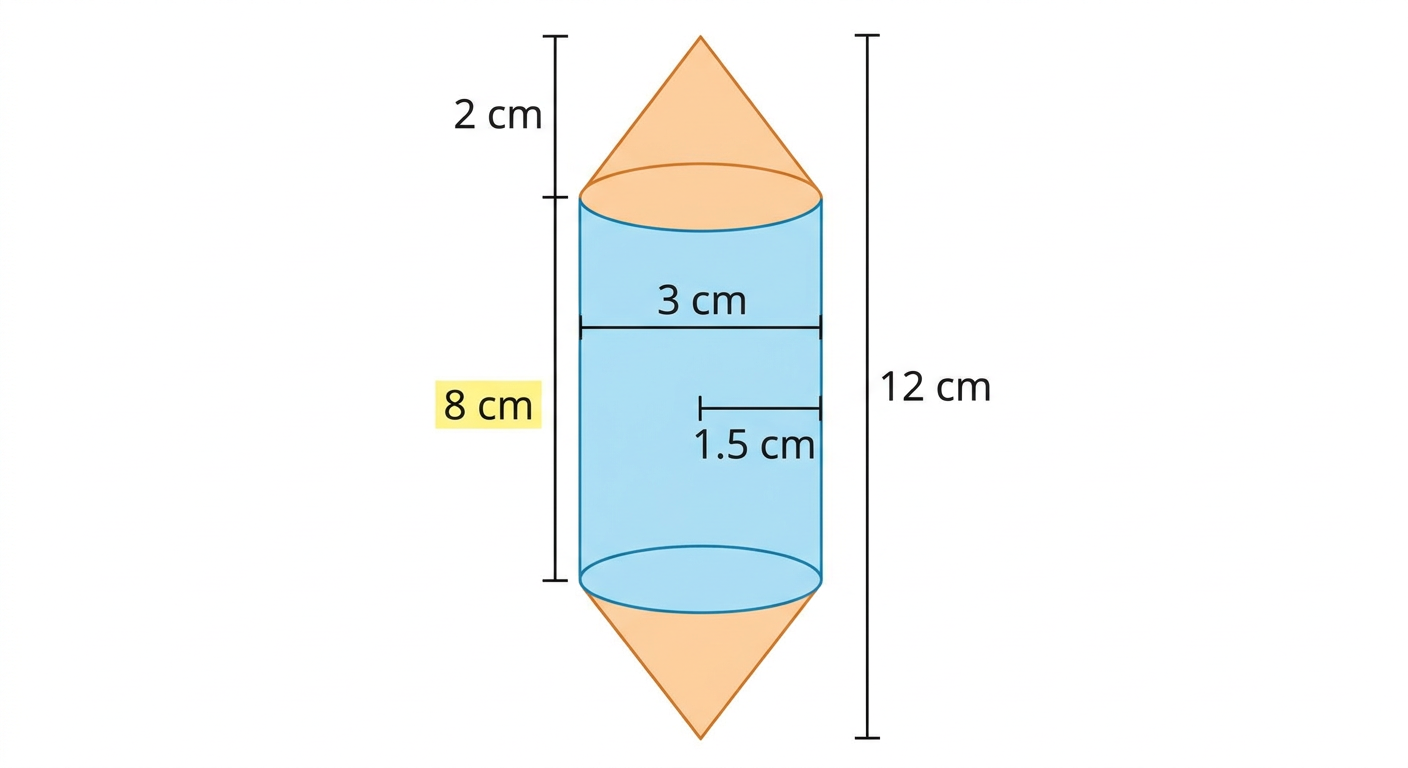

Diagram 1

Given: Diameter=3 cm  ⟹  Radius (r)=32 cm\text{Diameter} = 3\text{ cm} \implies \text{Radius } (r) = \dfrac{3}{2}\text{ cm}

Total length of model=12 cm\text{Total length of model} = 12\text{ cm}

Height of each cone (h1)=2 cm\text{Height of each cone } (h_1) = 2\text{ cm}

Height of the cylindrical part (h2h_2):

h2=12−(2×h1)=12−(2×2)=12−4=8 cm\begin{aligned} h_2 &= 12 - (2 \times h_1) \\[0.6em] &= 12 - (2 \times 2) \\[0.6em] &= 12 - 4 \\[0.6em] &= 8\text{ cm} \end{aligned}

Step 2 · Calculate the Total Volume of Air

Using the formulas for the volume of a cylinder (πr2h2\pi r^2 h_2) and cone (13πr2h1\frac{1}{3}\pi r^2 h_1): Volume=Volume of cylinder+2×Volume of cone\text{Volume} = \text{Volume of cylinder} + 2 \times \text{Volume of cone}

Volume=πr2h2+2×13πr2h1\text{Volume} = \pi r^2 h_2 + 2 \times \dfrac{1}{3}\pi r^2 h_1

Substitute the values:

Volume=π(32)2(8)+2×13π(32)2(2)=π(94)(8)+23π(94)(2)=π(9×2)+23π(92)=18π+3π=21π\begin{aligned} \text{Volume} &= \pi \left(\dfrac{3}{2}\right)^2 (8) + 2 \times \dfrac{1}{3} \pi \left(\dfrac{3}{2}\right)^2 (2) \\[0.6em] &= \pi \left(\dfrac{9}{4}\right) (8) + \dfrac{2}{3} \pi \left(\dfrac{9}{4}\right) (2) \\[0.6em] &= \pi (9 \times 2) + \dfrac{2}{3} \pi \left(\dfrac{9}{2}\right) \\[0.6em] &= 18\pi + 3\pi \\[0.6em] &= 21\pi \end{aligned}

Substitute π=227\pi = \dfrac{22}{7}:

Volume=21×227=3×22=66 cm3\begin{aligned} \text{Volume} &= 21 \times \dfrac{22}{7} \\[0.6em] &= 3 \times 22 \\[0.6em] &= 66\text{ cm}^3 \end{aligned}
Answer

66 cm366\text{ cm}^3

Common Mistakes
  • Subtracting Only One Cone's Height: Subtracting 2 cm2\text{ cm} instead of 2×2=4 cm2 \times 2 = 4\text{ cm} from the total length, which leads to an incorrect cylinder height of 10 cm10\text{ cm} instead of 8 cm8\text{ cm}.
  • Diameter vs Radius: Using r=3 cmr = 3\text{ cm} instead of r=1.5 cm=32 cmr = 1.5\text{ cm} = \dfrac{3}{2}\text{ cm} in the volume formulas.
  • Single Cone Volume: Forgetting that there are two identical cones attached to the ends, adding the volume of only one cone.
