Pair of Linear Equations in Two Variables | Exercise 3.1

Question 6

  1. Given the linear equation 2x+3y8=02x + 3y - 8 = 0, write another linear equation in two variables such that the geometrical representation of the pair so formed is:

(i) intersecting lines

(ii) parallel lines

(iii) coincident lines

Check your answer with HomiSolve it yourself, then let Homi check your steps and spot mistakes.
Solution

We will use the conditions for ratios of coefficients to find the second linear equation.

Step 1 — Intersecting Lines

Let the given equation be L1:2x+3y8=0L_1: 2x + 3y - 8 = 0. Here, a1=2a_1 = \mathbf{2}, b1=3b_1 = \mathbf{3}, c1=8c_1 = \mathbf{-8}. For intersecting lines, the condition is a1a2b1b2\frac{a_1}{a_2} \neq \frac{b_1}{b_2}. Let's choose a2=1a_2 = \mathbf{1} and b2=1b_2 = \mathbf{1}. We check the ratio of coefficients.

a1a2=21\frac{a_1}{a_2} = \frac{2}{1}

=2= 2

b1b2=31\frac{b_1}{b_2} = \frac{3}{1}

=3= 3

Since 232 \neq 3, the condition is satisfied. We can choose any value for c2c_2. Let's choose c2=1c_2 = \mathbf{1}. So, the second equation is 1x+1y+1=01x + 1y + 1 = 0.

x+y+1=0\boxed{x + y + 1 = 0}

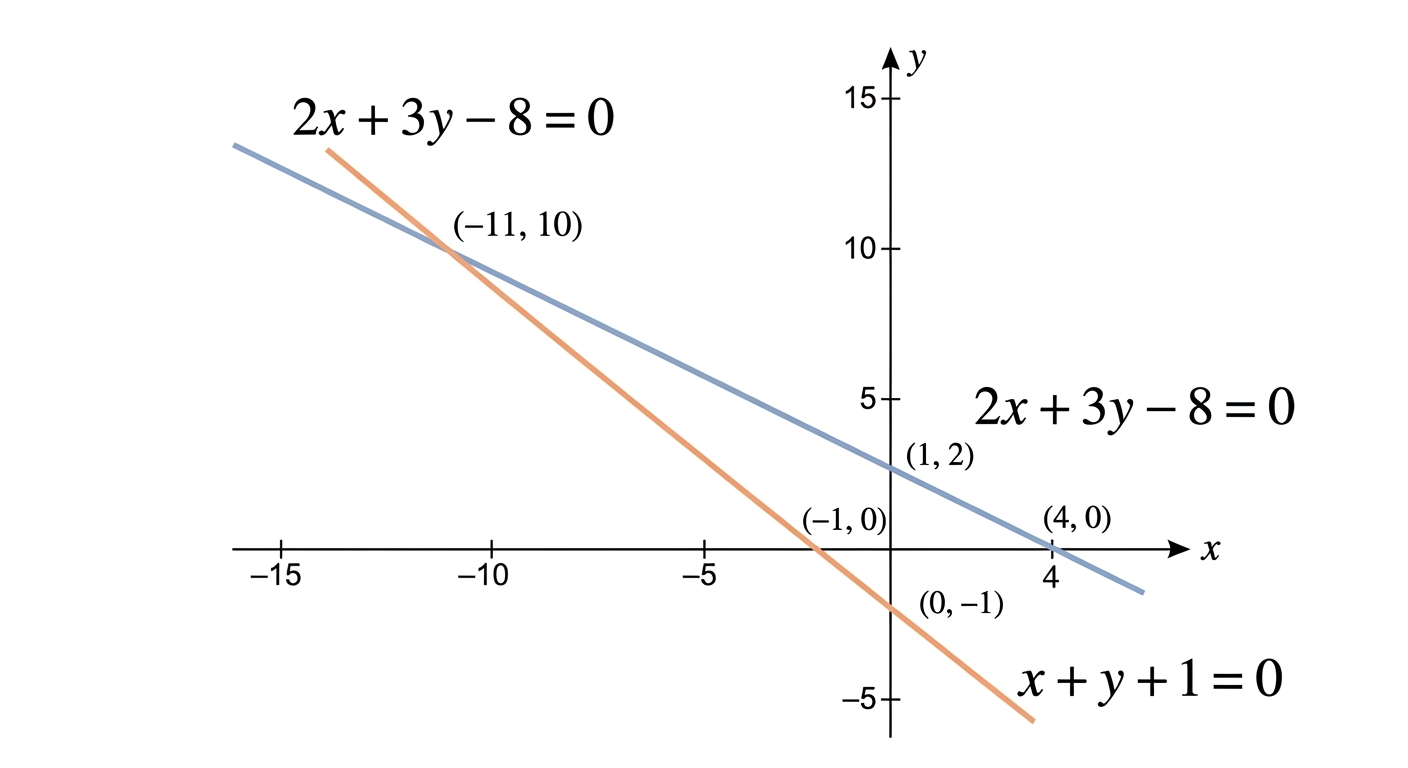

Diagram 1

Step 2 — Parallel Lines

Let the given equation be L1:2x+3y8=0L_1: 2x + 3y - 8 = 0. Here, a1=2a_1 = \mathbf{2}, b1=3b_1 = \mathbf{3}, c1=8c_1 = \mathbf{-8}. For parallel lines, the condition is a1a2=b1b2c1c2\frac{a_1}{a_2} = \frac{b_1}{b_2} \neq \frac{c_1}{c_2}. Let's choose a2a_2 and b2b_2 such that a1a2=b1b2\frac{a_1}{a_2} = \frac{b_1}{b_2}. We can multiply a1a_1 and b1b_1 by a common factor, say 2. So, a2=2×2=4a_2 = 2 \times 2 = \mathbf{4} and b2=2×3=6b_2 = 2 \times 3 = \mathbf{6}. Now, we need to choose c2c_2 such that c1c2\frac{c_1}{c_2} is not equal to a1a2\frac{a_1}{a_2}. The ratio a1a2=24=12\frac{a_1}{a_2} = \frac{2}{4} = \frac{1}{2}. So, we need 8c212\frac{-8}{c_2} \neq \frac{1}{2}. This means c216c_2 \neq -16. Let's choose c2=1c_2 = \mathbf{1}. The second equation is 4x+6y+1=04x + 6y + 1 = 0.

4x+6y+1=0\boxed{4x + 6y + 1 = 0}

Diagram 2

Step 3 — Coincident Lines

Let the given equation be L1:2x+3y8=0L_1: 2x + 3y - 8 = 0. Here, a1=2a_1 = \mathbf{2}, b1=3b_1 = \mathbf{3}, c1=8c_1 = \mathbf{-8}. For coincident lines, the condition is a1a2=b1b2=c1c2\frac{a_1}{a_2} = \frac{b_1}{b_2} = \frac{c_1}{c_2}. This means the second equation is a multiple of the first equation. Let's multiply the entire first equation by a constant, say 2.

2×(2x+3y8)=2×02 \times (2x + 3y - 8) = 2 \times 0

4x+6y16=04x + 6y - 16 = 0

Here, a2=4a_2 = \mathbf{4}, b2=6b_2 = \mathbf{6}, c2=16c_2 = \mathbf{-16}. Let's check the ratios. a1a2=24=12\frac{a_1}{a_2} = \frac{2}{4} = \frac{1}{2}. b1b2=36=12\frac{b_1}{b_2} = \frac{3}{6} = \frac{1}{2}. c1c2=816=12\frac{c_1}{c_2} = \frac{-8}{-16} = \frac{1}{2}. All ratios are equal, so the condition is satisfied. The second equation is 4x+6y16=04x + 6y - 16 = 0.

4x+6y16=0\boxed{4x + 6y - 16 = 0}

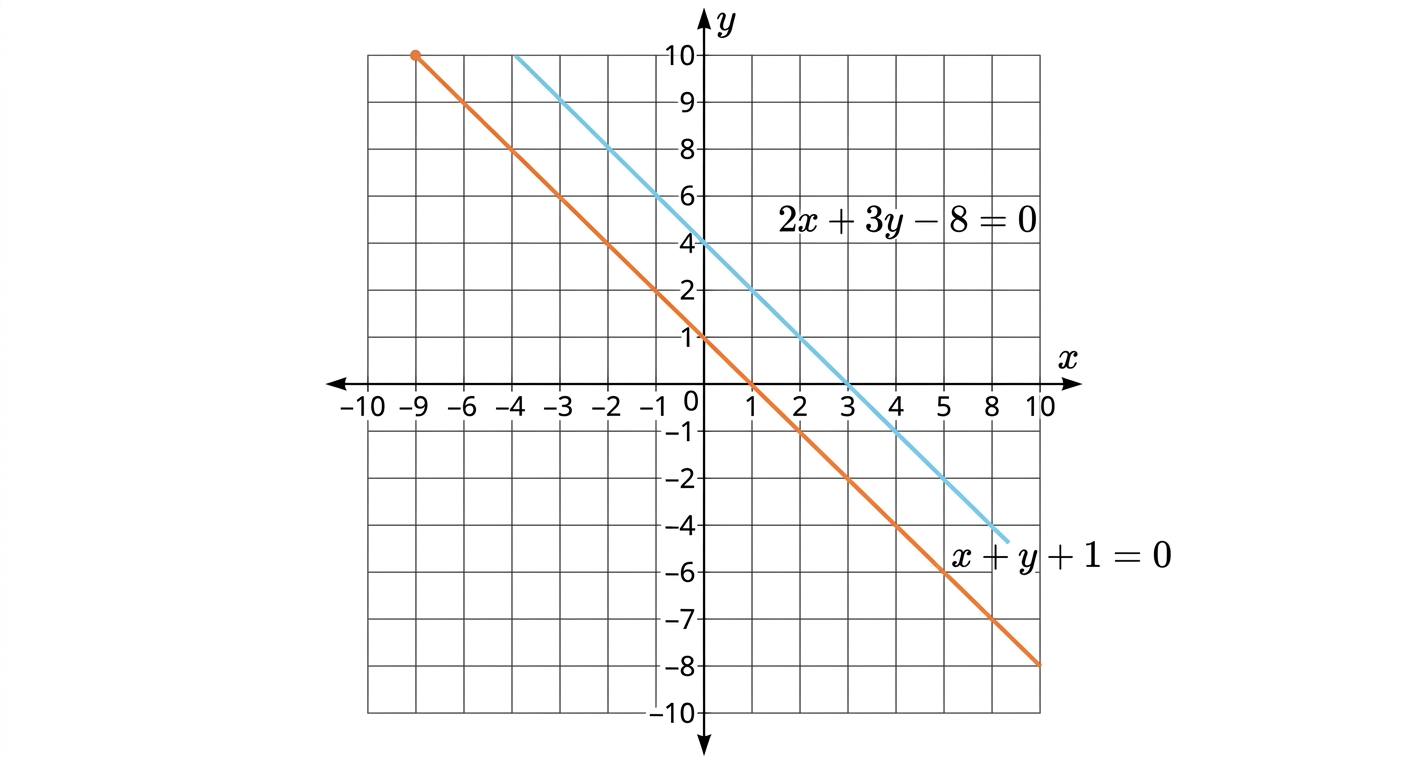

Diagram 3

Answer

(i) For intersecting lines: x+y+1=0x + y + 1 = 0 (ii) For parallel lines: 4x+6y+1=04x + 6y + 1 = 0 (iii) For coincident lines: 4x+6y16=04x + 6y - 16 = 0

More questions in Exercise 3.1

Q1

Form the pair of linear equations in the following problems, and find their solutions graphically.

(i) 10 students of Class X took part in a Mathematics quiz. If the number of girls is 4 more than the number of boys, find the number of boys and girls who took part in the quiz.

(ii) 5 pencils and 7 pens together cost ₹ 50, whereas 7 pencils and 5 pens together cost ₹ 46. Find the cost of one pencil and that of one pen.

Q2
  1. On comparing the ratios a1a2\frac{a_1}{a_2}, b1b2\frac{b_1}{b_2} and c1c2\frac{c_1}{c_2}, find out whether the lines representing the following pairs of linear equations intersect at a point, are parallel or coincident:

(i) 5x4y+8=05x - 4y + 8 = 0 7x+6y9=07x + 6y - 9 = 0

(ii) 9x+3y+12=09x + 3y + 12 = 0 18x+6y+24=018x + 6y + 24 = 0

(iii) 6x3y+10=06x - 3y + 10 = 0 2xy+9=02x - y + 9 = 0

Q3
  1. On comparing the ratios a1a2\frac{a_1}{a_2}, b1b2\frac{b_1}{b_2} and c1c2\frac{c_1}{c_2}, find out whether the following pair of linear equations are consistent, or inconsistent.

(i) 3x+2y=53x + 2y = 5; 2x3y=72x - 3y = 7

(ii) 2x3y=82x - 3y = 8; 4x6y=94x - 6y = 9

(iii) 32x+53y=7\frac{3}{2}x + \frac{5}{3}y = 7; 9x10y=149x - 10y = 14

(iv) 5x3y=115x - 3y = 11; 10x+6y=22-10x + 6y = -22

(v) 43x+2y=8\frac{4}{3}x + 2y = 8; 2x+3y=122x + 3y = 12

Q4
  1. Which of the following pairs of linear equations are consistent/inconsistent? If consistent, obtain the solution graphically:

(i) x+y=5x + y = 5, 2x+2y=102x + 2y = 10

(ii) xy=8x - y = 8, 3x3y=163x - 3y = 16

(iii) 2x+y6=02x + y - 6 = 0, 4x2y4=04x - 2y - 4 = 0

(iv) 2x2y2=02x - 2y - 2 = 0, 4x4y5=04x - 4y - 5 = 0

Q5
  1. Half the perimeter of a rectangular garden, whose length is 4 m4\text{ m} more than its width, is 36 m36\text{ m}. Find the dimensions of the garden.
Q6
  1. Given the linear equation 2x+3y8=02x + 3y - 8 = 0, write another linear equation in two variables such that the geometrical representation of the pair so formed is:

(i) intersecting lines

(ii) parallel lines

(iii) coincident lines

Q7
  1. Draw the graphs of the equations xy+1=0x - y + 1 = 0 and 3x+2y12=03x + 2y - 12 = 0. Determine the coordinates of the vertices of the triangle formed by these lines and the xx-axis, and shade the triangular region.
