Question 21

Discuss the effect on the mean and median when outliers are present on both sides. You may take some example data to examine and explain this.

Solution

Outliers can significantly affect the mean but have less impact on the median.

Step 1 — Understand Mean and Median

Let us understand what mean and median are. The mean is the average of all numbers. We add all numbers. We divide by the count of numbers. The median is the middle number in an ordered list. We arrange numbers from smallest to largest. The middle number is the median.

Step 2 — Calculate for Original Data

Let us take some example data. These numbers are test scores of 5 students. The scores are 10, 12, 15, 18, 20. Let us find the mean of these scores. We add all the scores together. Then we divide by the number of scores.

$\text{Mean} = \frac{10 + 12 + 15 + 18 + 20}{5}$

$= \frac{75}{5}$

$\boxed{\text{Mean} = \mathbf{15}}$

Now, let us find the median of these scores. First, we arrange the scores in order. The scores are already in order: 10, 12, 15, 18, 20. There are 5 scores. The middle score is the 3rd score.

$\boxed{\text{Median} = \mathbf{15}}$

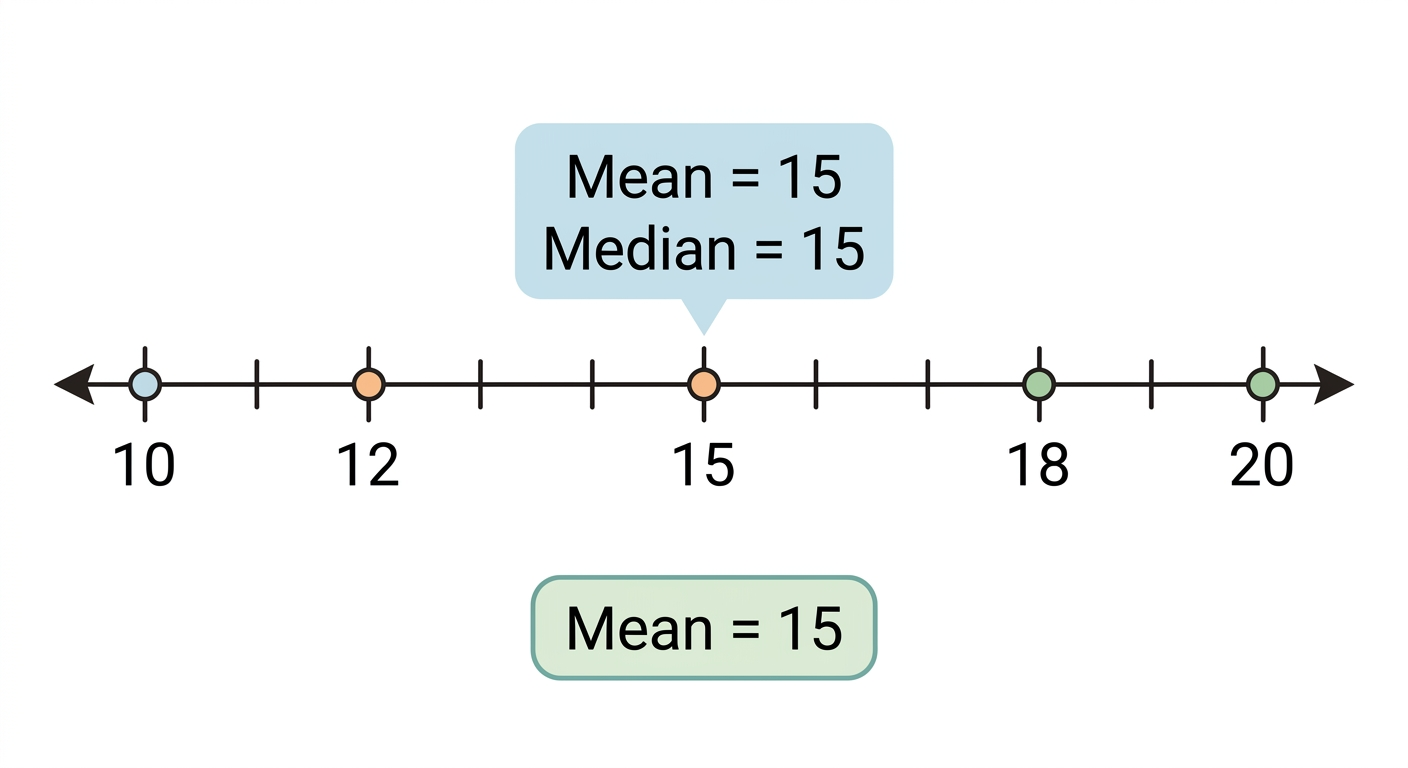

Diagram 1

Step 3 — Introduce Outliers

Let us now add some outliers to our data. An outlier is a value that is very different. It is much smaller or much larger. We will add one very small score. Let this score be 1. We will add one very large score. Let this score be 100. The new scores are 1, 10, 12, 15, 18, 20, 100. There are now 7 scores.

Step 4 — Calculate for New Data with Outliers

Let us find the mean of the new scores. We add all the new scores together. Then we divide by the new number of scores.

$\text{Mean}_{\text{new}} = \frac{1 + 10 + 12 + 15 + 18 + 20 + 100}{7}$

$= \frac{176}{7}$

$\approx 25.1428$

$\boxed{\text{Mean}_{\text{new}} \approx \mathbf{25.14}}$

Now, let us find the median of the new scores. First, we arrange the scores in order. The new scores are 1, 10, 12, 15, 18, 20, 100. There are 7 scores. The middle score is the 4th score.

$\boxed{\text{Median}_{\text{new}} = \mathbf{15}}$

Diagram 2

Step 5 — Discuss the Effect

Let us compare the results. The original mean was 15. The new mean is approximately 25.14. The mean changed a lot. It increased significantly due to the large outlier. The small outlier also pulled it down a little. But the large outlier had a bigger effect.

The original median was 15. The new median is still 15. The median did not change at all. Outliers on both sides did not affect the median. The median only cares about the middle value. It does not care about the extreme values.

Answer

(i) When outliers are present on both sides, the mean is significantly affected. (ii) The mean tends to shift towards the side with the more extreme outlier. (iii) The median is generally not affected much by outliers on both sides. (iv) The median remains a good measure of the center even with outliers.
