Symmetry | IT

Question 14

Draw the following.

a. A triangle with exactly one line of symmetry. b. A triangle with exactly three lines of symmetry. c. A triangle with no line of symmetry.

Is it possible to draw a triangle with exactly two lines of symmetry?

Solution

Understand the Question

A line of symmetry is a line that divides a figure into two identical mirror-image halves that match perfectly when folded.
Based on side lengths, triangles are categorized as:
- Equilateral triangle: All $3$ sides equal $\rightarrow 3$ lines of symmetry
- Isosceles triangle: $2$ sides equal $\rightarrow 1$ line of symmetry
- Scalene triangle: All sides unequal $\rightarrow 0$ lines of symmetry
A triangle can only have $0$ , $1$ , or $3$ lines of symmetry—never exactly $2$ .

a. A triangle with exactly one line of symmetry.

Step 1 · Draw an Isosceles Triangle

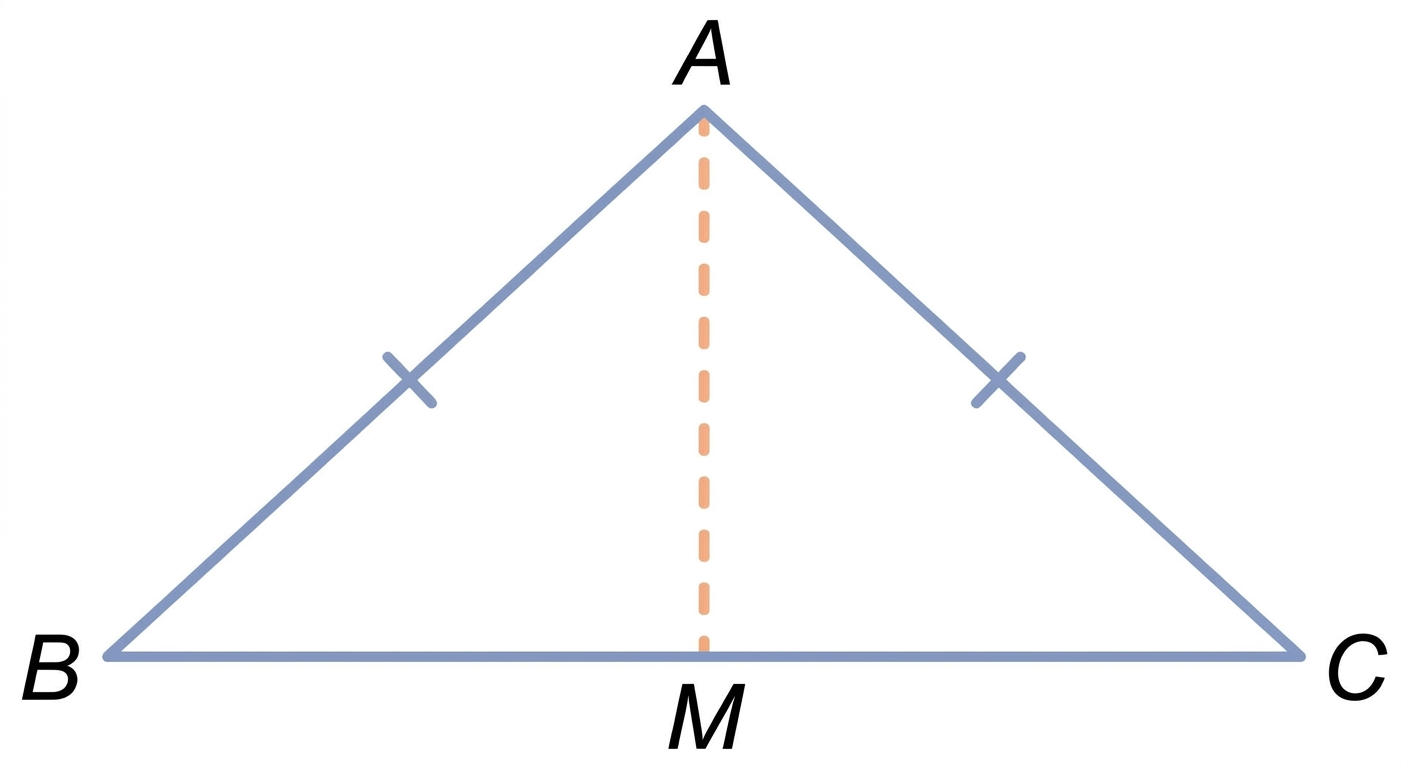

An isosceles triangle has two sides of equal length and two equal angles. Diagram 1

The line drawn from the vertex between the equal sides perpendicular to the opposite base divides the triangle into two matching halves. Hence, it has exactly $1$ line of symmetry.

Answer

a. An isosceles triangle has exactly one line of symmetry.

b. A triangle with exactly three lines of symmetry.

Step 1 · Draw an Equilateral Triangle

An equilateral triangle has all three sides of equal length and all three angles equal ( $60^\circ$ ). Diagram 2

A line drawn from each vertex to the midpoint of the opposite side is a line of symmetry. Hence, it has exactly $3$ lines of symmetry.

Answer

b. An equilateral triangle has exactly three lines of symmetry.

c. A triangle with no line of symmetry.

Step 1 · Draw a Scalene Triangle

A scalene triangle has all three sides of different lengths and all three angles of different measures.No line can divide the triangle into two identical halves when folded. Hence, it has no lines of symmetry ( $0$ lines of symmetry).

Answer

c. A scalene triangle has no line of symmetry.

Is it possible to draw a triangle with exactly two lines of symmetry?

Step 1 · Analyze Possibility of Two Lines of Symmetry

If a triangle has at least one line of symmetry, it must have at least two equal sides (isosceles).
If it has a second line of symmetry, another pair of sides must also be equal, making all three sides equal (equilateral).
An equilateral triangle automatically possesses $3$ lines of symmetry, not $2$ .

Therefore, it is impossible for a triangle to have exactly $2$ lines of symmetry.

Answer

No, it is not possible to draw a triangle with exactly two lines of symmetry.

Common Mistakes

Assuming 2 Lines of Symmetry Exist: Rectangles and rhombuses have $2$ lines of symmetry, but triangles cannot. As soon as a triangle gains a second line of symmetry, all three sides become equal, giving it $3$ lines of symmetry.
Confusing Isosceles and Scalene: An isosceles triangle has $1$ line of symmetry, while a scalene triangle has $0$ lines of symmetry.
