Surface Areas and Volumes | Exercise 12.1

Question 2

A vessel is in the form of a hollow hemisphere mounted by a hollow cylinder. The diameter of the hemisphere is $14\text{ cm}$ and the total height of the vessel is $13\text{ cm}$ . Find the inner surface area of the vessel.

Solution

Understand the Question

The vessel is a combination of two hollow shapes: a cylinder mounted on top of a hemisphere.
Both shapes share the same radius: $r = \dfrac{14}{2} = 7\text{ cm}$ .
The height of the hemisphere equals its radius ( $7\text{ cm}$ ), so the height of the cylinder is $h = 13 - 7 = 6\text{ cm}$ .
Since the vessel is hollow and open, the inner surface area equals the sum of the curved surface areas: $\text{Inner Surface Area} = \text{CSA of Cylinder} + \text{CSA of Hemisphere} = 2\pi rh + 2\pi r^2$

Step 1 · Find the Radius and Height of the Cylinder

Given diameter of the hemisphere $= 14\text{ cm}$ .

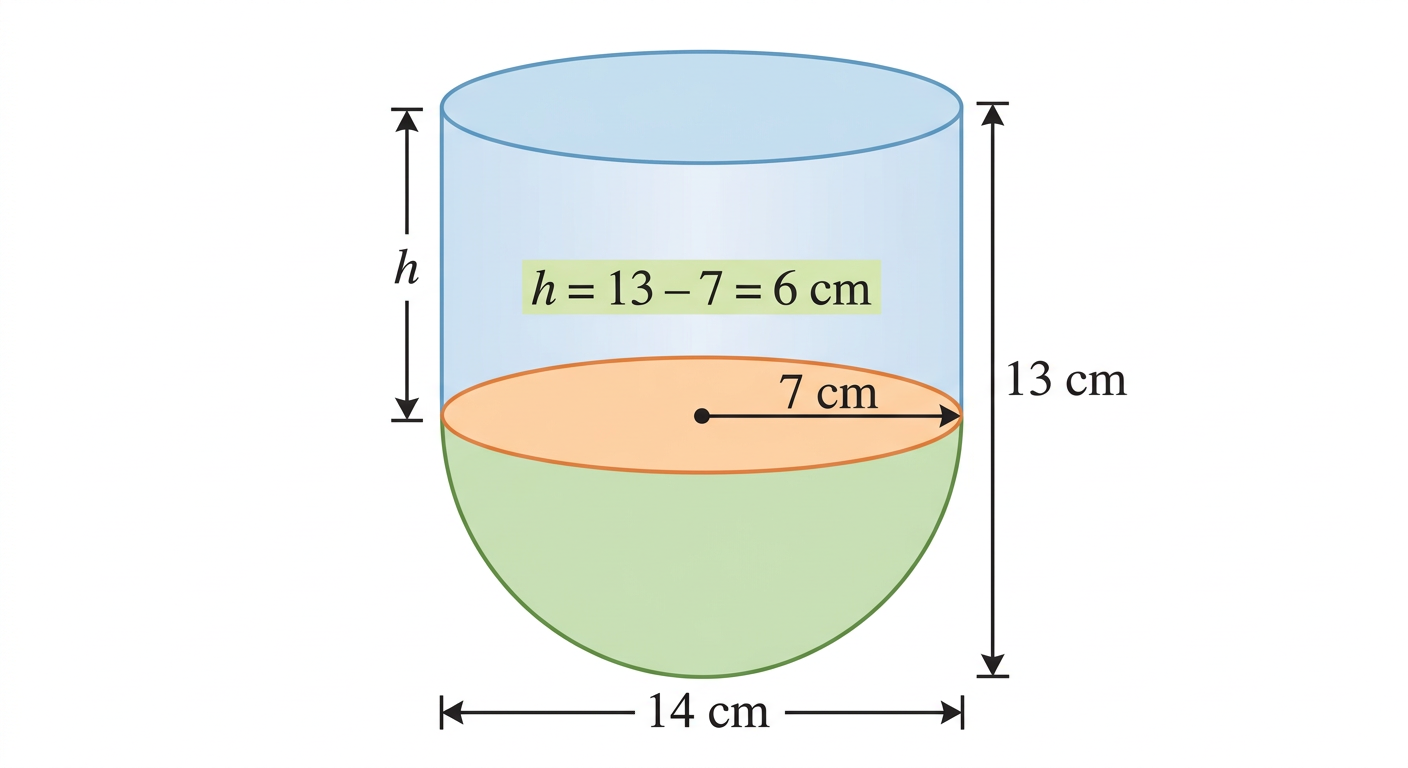

Radius of hemisphere and cylinder: $r = \dfrac{\text{diameter}}{2} = \dfrac{14}{2} = 7\text{ cm}$ Diagram 1

Height of the hemisphere $= r = 7\text{ cm}$ .

Height of the cylinder ( $h$ ):

\begin{aligned} h &= \text{Total height} - \text{Radius} \\[0.6em] &= 13 - 7 \\[0.6em] &= 6\text{ cm} \end{aligned}

Step 2 · Calculate the Inner Surface Area

Inner surface area of the vessel: $\text{Inner surface area} = \text{CSA of cylinder} + \text{CSA of hemisphere}$

$\text{Inner surface area} = 2\pi rh + 2\pi r^2$

Taking $2\pi r$ common and substituting $\pi = \dfrac{22}{7}$ , $r = 7\text{ cm}$ , and $h = 6\text{ cm}$ :

\begin{aligned} &= 2\pi r(h + r) \\[0.6em] &= 2 \times \dfrac{22}{7} \times 7 \times (6 + 7) \\[0.6em] &= 2 \times 22 \times 13 \\[0.6em] &= 44 \times 13 \\[0.6em] &= 572\text{ cm}^2 \end{aligned}

Answer

$572\text{ cm}^2$

Common Mistakes

Using Total Height as Cylinder Height: Using $h = 13\text{ cm}$ directly instead of subtracting the hemisphere's radius ( $h = 13 - 7 = 6\text{ cm}$ ).
Adding Base Areas: Using total surface area (TSA) formulas instead of curved surface area (CSA) for hollow objects, which incorrectly adds circular bases that do not exist inside the open vessel.
