Statistics | Exercise 13.2

Question 4

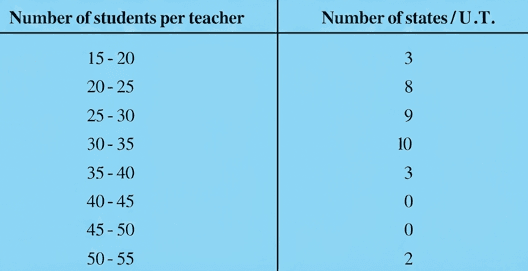

The following distribution gives the state-wise teacher-student ratio in higher secondary schools of India. Find the mode and mean of this data. Interpret the two measures.

Question diagram 1
Check your answer with HomiSolve it yourself, then let Homi check your steps and spot mistakes.
Solution
Understand the Question
  • Mode represents the most frequent teacher-student ratio among the states/U.T.
  • Mean represents the overall average teacher-student ratio across all states/U.T.
  • To find the Mode, identify the modal class (the class with the highest frequency) and apply the formula: Mode=l+(f1−f02f1−f0−f2)×h\text{Mode} = l + \left( \dfrac{f_1 - f_0}{2f_1 - f_0 - f_2} \right) \times h
  • To find the Mean, use the Step-Deviation method: xˉ=a+(∑fiui∑fi)×h\bar{x} = a + \left( \dfrac{\sum f_i u_i}{\sum f_i} \right) \times h

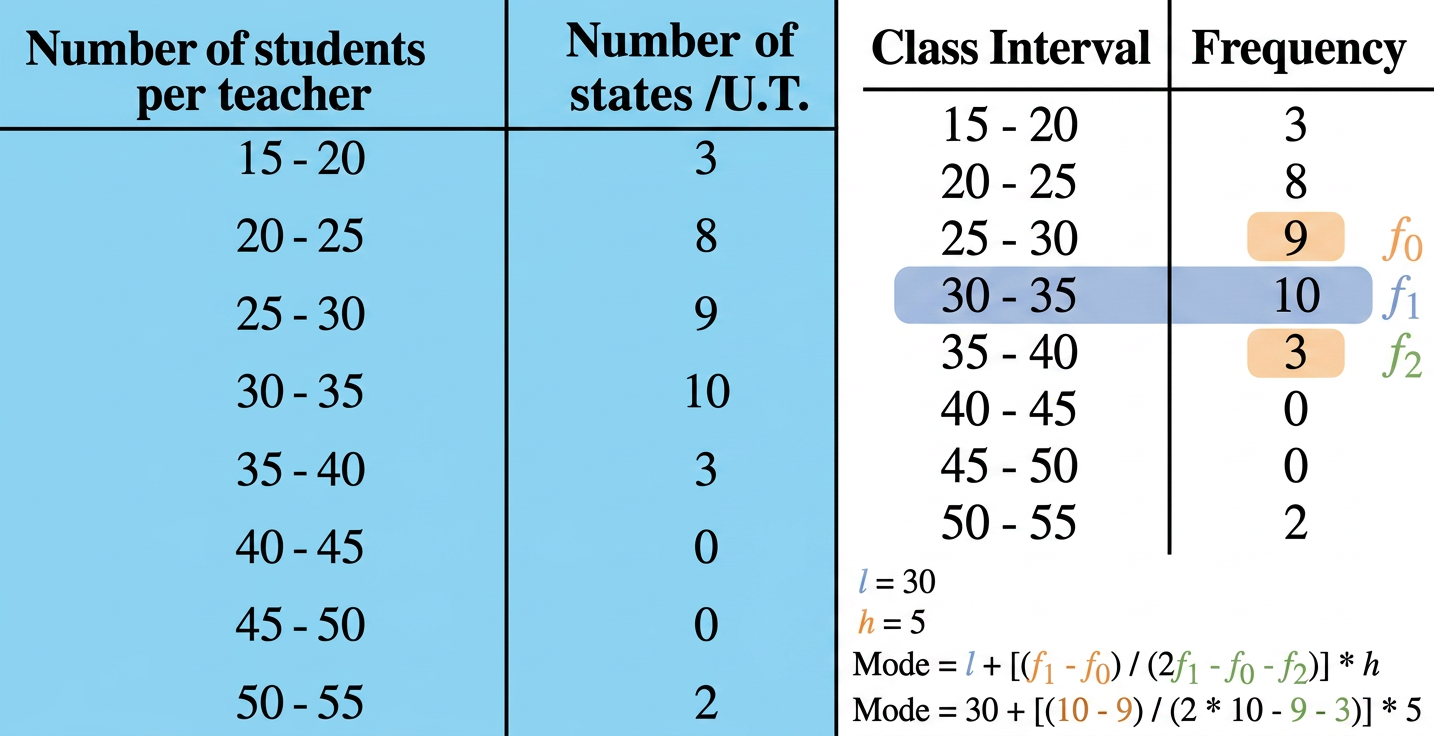

Step 1 · Calculate the Mode

The maximum frequency is 1010, which corresponds to the class interval 30−3530 - 35.

Therefore, the modal class is 30−3530 - 35.

  • Lower limit of modal class (ll) =30= 30
  • Class size (hh) =5= 5
  • Frequency of modal class (f1f_1) =10= 10
  • Frequency of preceding class (f0f_0) =9= 9
  • Frequency of succeeding class (f2f_2) =3= 3Diagram 1

Using the mode formula: Mode=l+[f1−f02f1−f0−f2]×h\text{Mode} = l + \left[ \dfrac{f_1 - f_0}{2f_1 - f_0 - f_2} \right] \times h

Mode=30+[10−92(10)−9−3]×5=30+[120−12]×5=30+[18]×5=30+0.125×5=30+0.625=30.625\begin{aligned} \text{Mode} &= 30 + \left[ \dfrac{10 - 9}{2(10) - 9 - 3} \right] \times 5 \\[0.6em] &= 30 + \left[ \dfrac{1}{20 - 12} \right] \times 5 \\[0.6em] &= 30 + \left[ \dfrac{1}{8} \right] \times 5 \\[0.6em] &= 30 + 0.125 \times 5 \\[0.6em] &= 30 + 0.625 \\[0.6em] &= 30.625 \end{aligned}

Step 2 · Calculate the Mean using Step-Deviation Method

Let Assumed Mean a=32.5a = 32.5 and class size h=5h = 5.

Number of students per teacherNumber of states/U.T. (fi)xidi=xi−32.5ui=di5fiui15−20317.5−15−3−920−25822.5−10−2−1625−30927.5−5−1−930−351032.500035−40337.551340−45042.5102045−50047.5153050−55252.52048Total35−23\begin{array}{|c|c|c|c|c|c|} \hline \text{Number of students per teacher} & \text{Number of states/U.T. } (f_i) & x_i & d_i = x_i - 32.5 & u_i = \dfrac{d_i}{5} & f_i u_i \\ \hline 15 - 20 & 3 & 17.5 & -15 & -3 & -9 \\ \hline 20 - 25 & 8 & 22.5 & -10 & -2 & -16 \\ \hline 25 - 30 & 9 & 27.5 & -5 & -1 & -9 \\ \hline 30 - 35 & 10 & 32.5 & 0 & 0 & 0 \\ \hline 35 - 40 & 3 & 37.5 & 5 & 1 & 3 \\ \hline 40 - 45 & 0 & 42.5 & 10 & 2 & 0 \\ \hline 45 - 50 & 0 & 47.5 & 15 & 3 & 0 \\ \hline 50 - 55 & 2 & 52.5 & 20 & 4 & 8 \\ \hline \mathbf{\text{Total}} & \mathbf{35} & & & & \mathbf{-23} \\ \hline \end{array}

From the table: ∑fi=35,∑fiui=−23\sum f_i = 35, \quad \sum f_i u_i = -23

Using the Step-Deviation formula: xˉ=a+(∑fiui∑fi)×h\bar{x} = a + \left( \dfrac{\sum f_i u_i}{\sum f_i} \right) \times h

xˉ=32.5+(−2335)×5=32.5−237=32.5−3.2857…≈29.22\begin{aligned} \bar{x} &= 32.5 + \left( \dfrac{-23}{35} \right) \times 5 \\[0.6em] &= 32.5 - \dfrac{23}{7} \\[0.6em] &= 32.5 - 3.2857\dots \\[0.6em] &\approx 29.22 \end{aligned}
Answer
  • Mode =30.625= 30.625 (or ≈30.6\approx 30.6)
  • Mean ≈29.22\approx 29.22 (or ≈29.2\approx 29.2)
  • Interpretation: Most states/U.T. have a teacher-student ratio of approximately 30.630.6, while the average teacher-student ratio across all states/U.T. is approximately 29.229.2.
Common Mistakes
  • Swapping Frequencies: Confusing f0f_0 (preceding frequency) and f2f_2 (succeeding frequency) in the mode formula.
  • Denominator Sign in Mode: Incorrectly writing the denominator as 2f1+f0+f22f_1 + f_0 + f_2 instead of 2f1−f0−f22f_1 - f_0 - f_2.
  • Sign Errors in ∑fiui\sum f_i u_i: Neglecting negative signs when summing negative and positive fiuif_i u_i values.
  • Forgetting hh: Omitting the class size h=5h = 5 while applying the step-deviation or mode formula.
